Disassembling and refitting
4-6
Coway co., Ltd
4-2-3

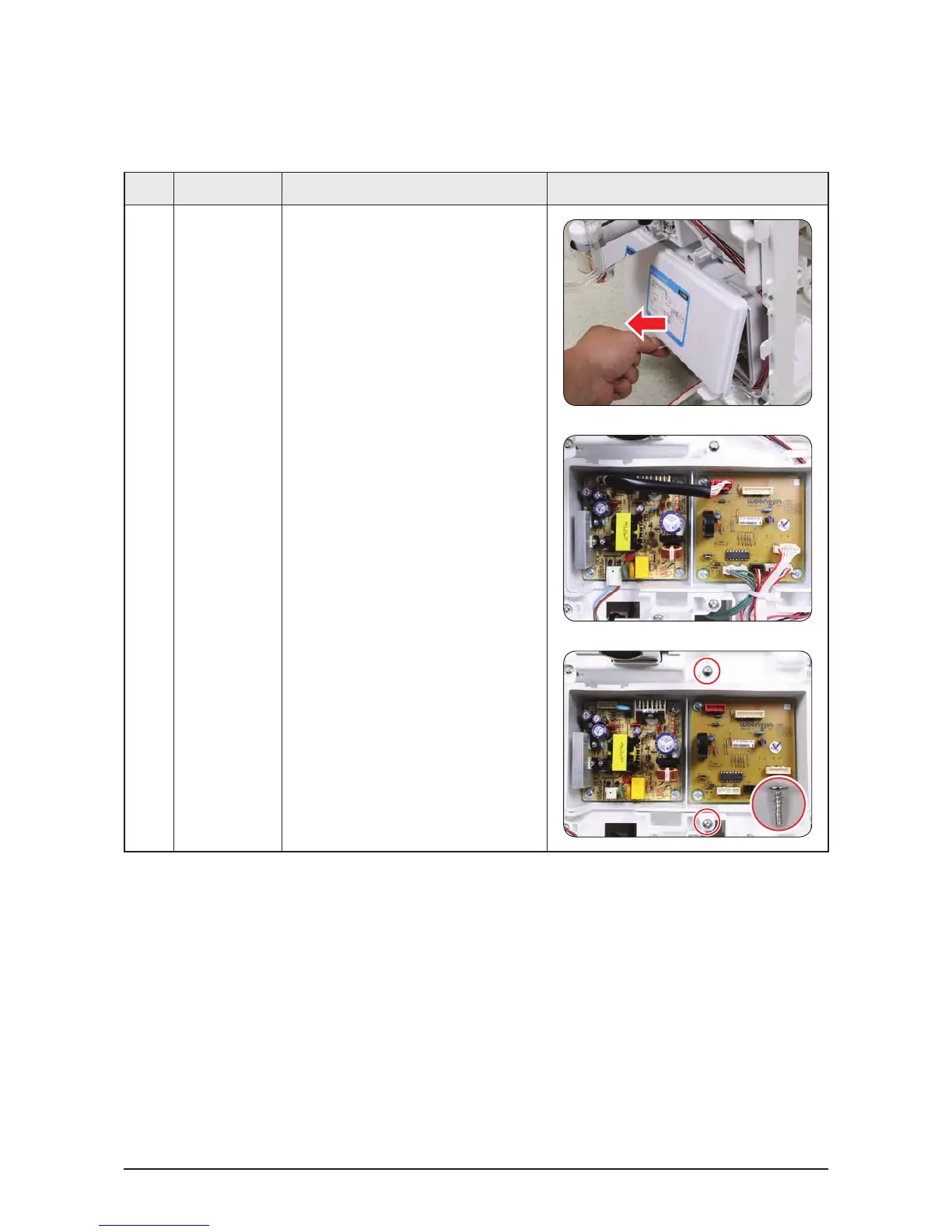

Disassembling the Main PBA
Assembly
No.
Part names
Description
Reference picture
1
Main
PBA
Assembly
1)
Separate the Main PBA-Cover
Assembly by pulling it in the
direction of the arrow in the
figure.
2)
Separate the connector from the
Main PBA
assembly
.
3)
Remove the 2 screws from the
Main PBA
assembly
.
: 2-THT 4X12
25
27
Table of Contents
Default Chapter
3
Table of Contents
3
1 Precaution
5
Precautions On Electricity
5
Precautions On Installation
6
Precautions On Use
7
Precautions On Services
8
2 Product Characteristics And Specifications
11
Product Characteristics
11
Major Specifications
12
Dimensions
13
3 Product Installation
15
Installation Materials
15
Parts
15
Installation Method
16
Precautions On Installation
16
Installing The Product
18
How To Use
19
4 Disassembling And Refitting
21
Disassembling And Refitting Information
21
Necessary Tools
21
Disassembling And Reassembling The Product
22
Disassembling The Top-Cover Assembly
22
Disassembling The Filter Assembly
25
Disassembling The Main Pba Assembly
26
Disassembling the Room Water-Faucet Assembly, Room Water-Valve Assembly and CTS Water Level-Sensor Assembly
27
Disassembling The Side-Cover Assembly
29
Disassembling The Feed Nos-Valve Assembly
32
5 Troubleshooting
33
Checking Faults By Symptom
33
Power Failure (For Ac 220 V)
33
A Water Filtration Failure Or A Water Overflow
35
Control Specifications
37
Basic Specifications
37
6 Exploded View And Parts List
46
7 Parts Location Diagrams
49
Electrical Wiring Diagram
49
Cable Specification
50
Water Piping Diagram
52
P-220R
52
P-220L
52
Pba Location Diagram
53
Main Pba
53
Smps Pba
55
8 Circuit Diagrams
57
Main Pba
57
Smps Pba
58
9 Reference Information
59
Names Of Each Part
59
Functions And Reference Information
60
Types And Functions Of Filters
60
Water Filtration Process
62
After Services
63
Filter Replacement
63
Filter Replacement Method
64
Cleaning Method
66
