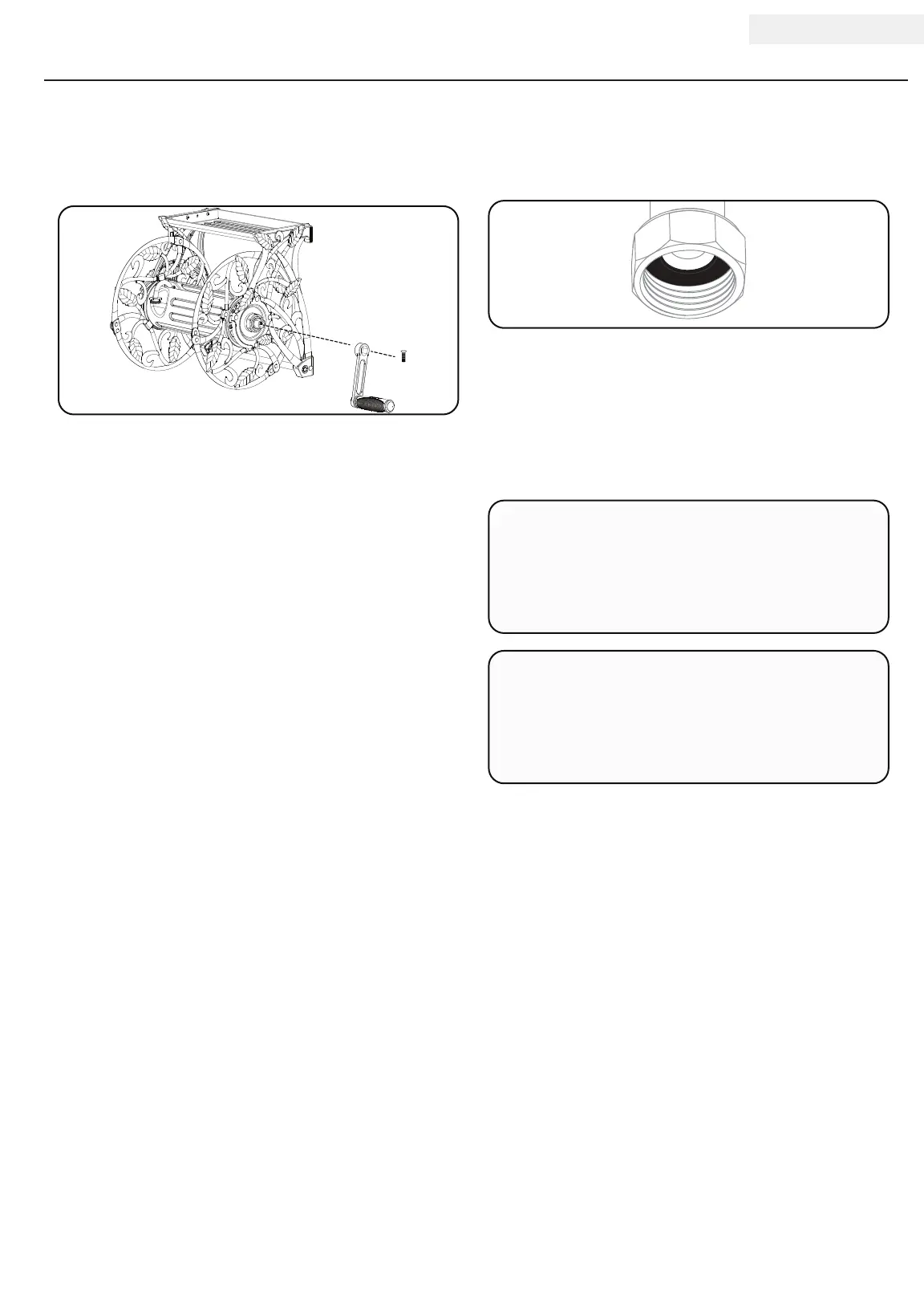

1. Assemble the crank on to the hose reel as shown.
2. Secure with the crank screw.
1. Inspect threaded female connector on hose reel,
confirm that rubber O-ring is properly seated.
To remove hose reel from wall cradle:
1. Turn off water at house water spicket.
2. Unscrew leader hose from water spicket (leader hose
connects the hose reel to the house spicket).
3. Unwind hose from hose reel.
4. Unscrew garden hose from hose reel.
5. Unlatch two lower clips.
6. Lift hose reel upward and out to remove from cradle
system.
For re-installation, follow instructions in reverse.
Crank Assembly
Attach the Leader Hose
Moving or Storing the Hose Reel
Freezing temperatures can damage your hose
and watering accessories. Always disconnect the
connector hose and drain the water from the hose
prior to freezing conditions.
NOTICE
Prior to removing the hose reel for winter or moving
the hose reel to a new location, always disconnect
the connector hose and drain the water from the
hoses before storing or moving.
NOTICE
2. Connect threaded male connector end of leader hose
to threaded female fitting on hose reel spool.
3. Tighten by hand until snug (clockwise).
4. With adjustable pliers or wrench tighten fully.
ASSEMBLY
