CPE 100361 - Install Mounting Rail to a Stud Wall; Install Mounting Clips

9
100361 ENGLISH

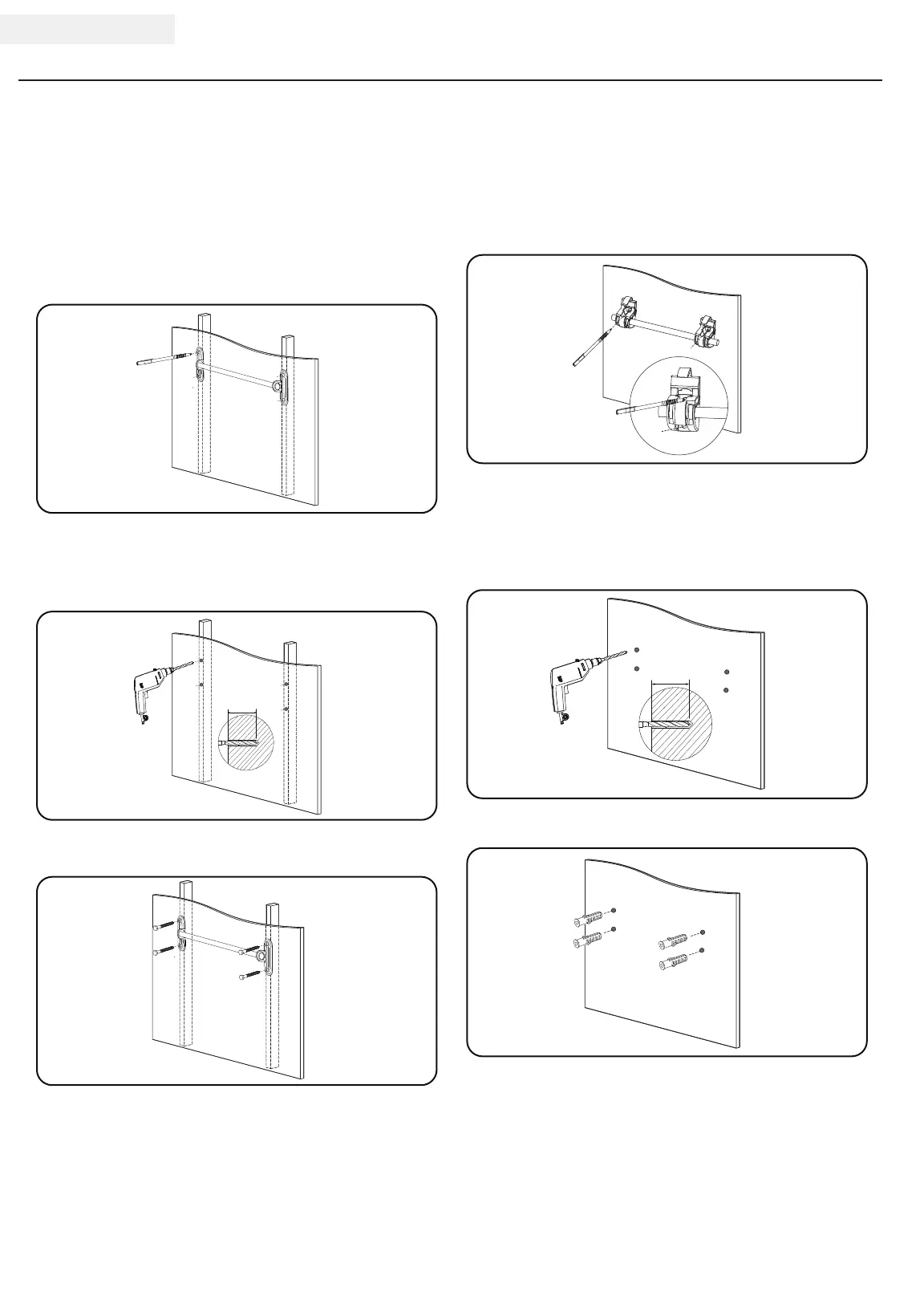

1. Locate the studs using a stud finder.
2. Position the mounting rail on the wall at a convenient
height.
3. Use a bubble level to ensure the mounting rail is
horizontal.
4. Mark hole centre locations on the wall.
5. Using a 6mm (¼ in.) drill bit, drill pilot holes
approximately 6.4cm (2.5 in.) deep centered on the
marks you made in step 4.
6.4cm
6. Hang the mounting rail with the lag screws.
1. Hang the hose reel on the mounting rail.
2. Attach 2 mounting clips to the bottom rail, one at the
far left and one at the far right.
3. Mark the hole centre locations on the wall.
4. Remove hose reel.
5. Using a 10mm (
3
/
8
in.) drill bit, drill pilot holes
approximately 4.1cm (1
5
/
8
in.) deep centered on the
marks you made in step 3.
4.1cm
6. Push plastic anchors into the holes.
7. Rehang hose reel.
8. Drive screws into plastic anchors tightly with a
screwdriver.
Install Mounting Rail to a Stud Wall
Install Mounting Clips
ASSEMBLY
