Concrete Polishing Solutions- G-290 Operator’s Manual

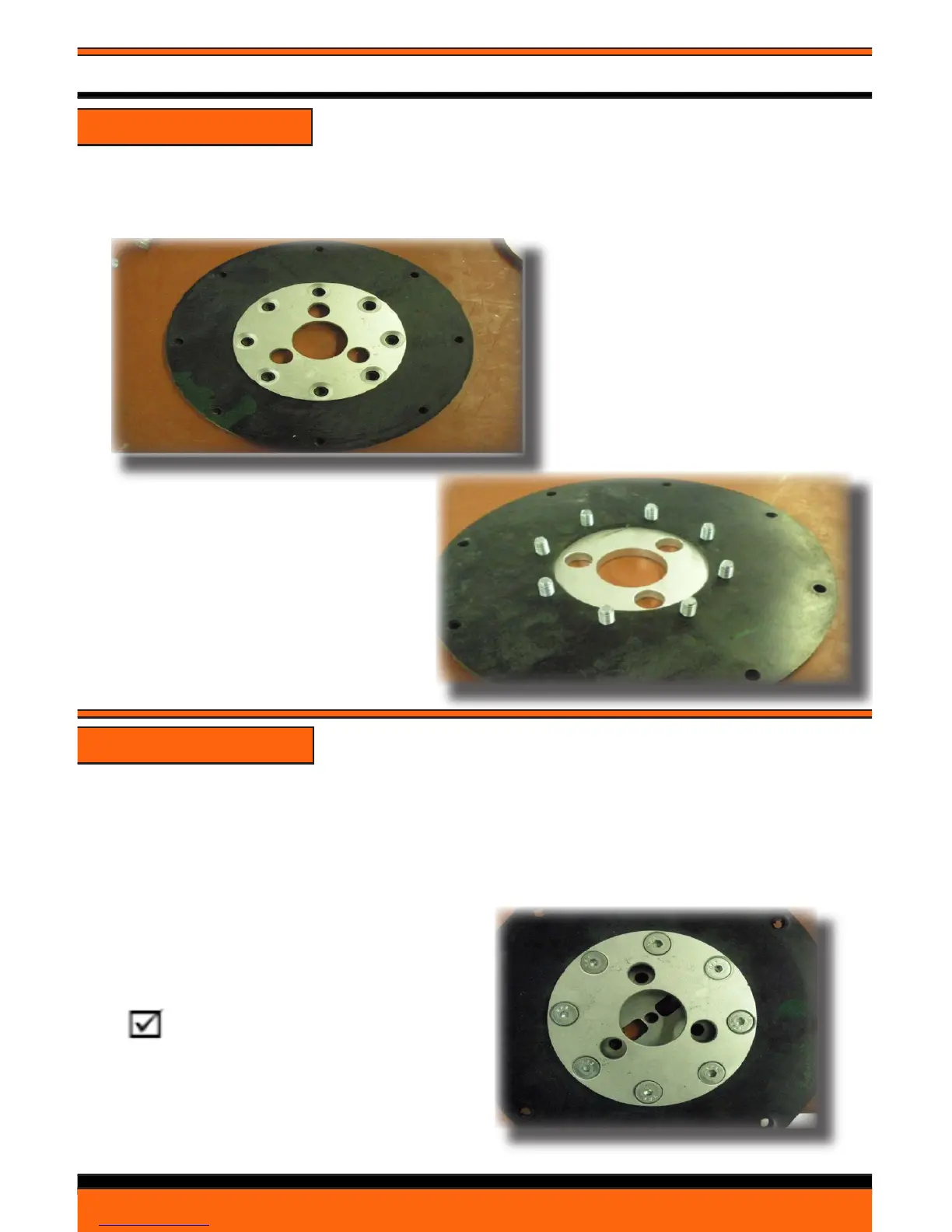

Place inner Polycord holder on the Polycord and push through the 8
at head screws. The screws heads should be ush with the surface
of the inner Polycord holder.
Step 1
Inner Polycord holder on the
Polycord with counter-sink
holes facing up.
Bottom view of assembly with
screws in place
Properly aligned retainer and inner
Polycord holder.
Note: Assembly has been
turned over for both better
view of alignment and to
tighten the at head screws.
Step 2
With the assembly in the same position as previous picture shows,
place the retainer on the screws insuring alignment is such that the
3 holes of the inner Polycord holder align with 3 of the 6 holes of
the retainer. See pictures below for examples of both proper and
improper alignment.
FLEX HEAD ASSEMBLY INSTRUCTIONS
