IBR1700 Mobile Router Quick Start Guide
https://customer.cradlepoint.com/s/article/IBR1700-Getting-Started
6/8

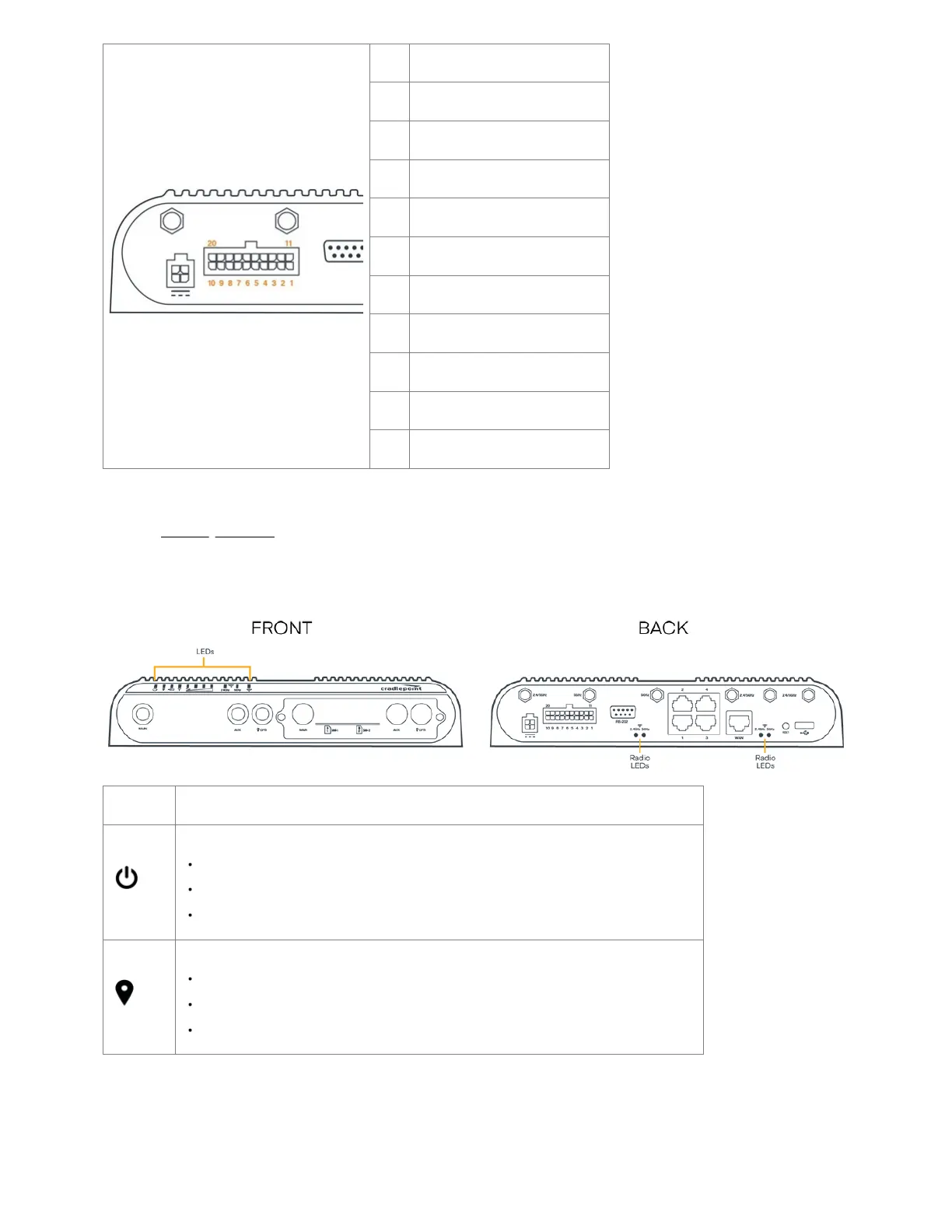

1 Router power (input ONLY - 36 W min.)
2 Router power (input ONLY - 36 W min.)
3 ADC Channel 1
4 ADC Channel 2
5 GPI (ignition sense)
6 GPIO1
7 GPIO2
8 GPIO3
9 GPIO4
10 Low current 5 V output (50 mA max.)
11-20 Ground
STEP 5: Activate the device through NetCloud Manager.
Refer to the Connecting to NetCloud section of this document.
Understanding LEDs
INDICATOR BEHAVIOR
POWER: The Cradlepoint IBR1700 must be powered using an approved 9–36 V DC power source.
Green = Powered ON
Yellow = Attention is required
No Light = Not receiving power. Check the power source connection
GPS: Indicates the status of GPS connection.
Blue = GPS locked
Blinking Blue = Obtaining lock
No Light = Off/no lock
