9

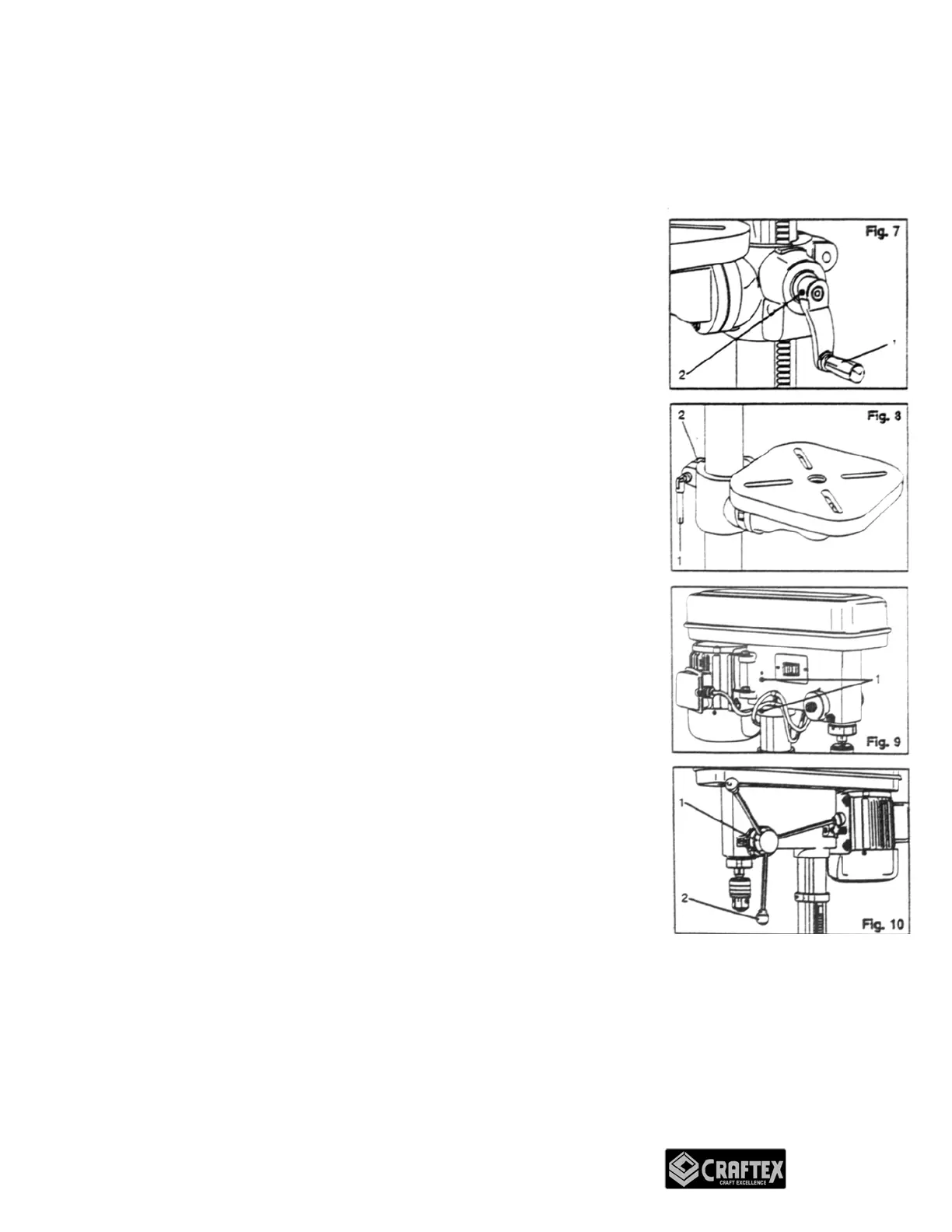

ASSEMBLY
Attach the elevation handle by tightening the set-screw (2)
Thread the column lock into the table bracket (1).
Rotate the table and position it directly over and in line with
the base.
DRILL PRESS HEAD TO COLUMN.
Lift the drill press head carefully and position it above the
column. NOTE: this may require the help of a second
person.
The column fits into the drill press mounting hole. Make
certain the mounting hole is properly seated on the column.
Line the drill press head up with the table and base and then
tighten the two set-screws using the supplied hex wrench.
FEED HANDLE.
Fit the one-piece cast-iron feed handle onto the shaft.
