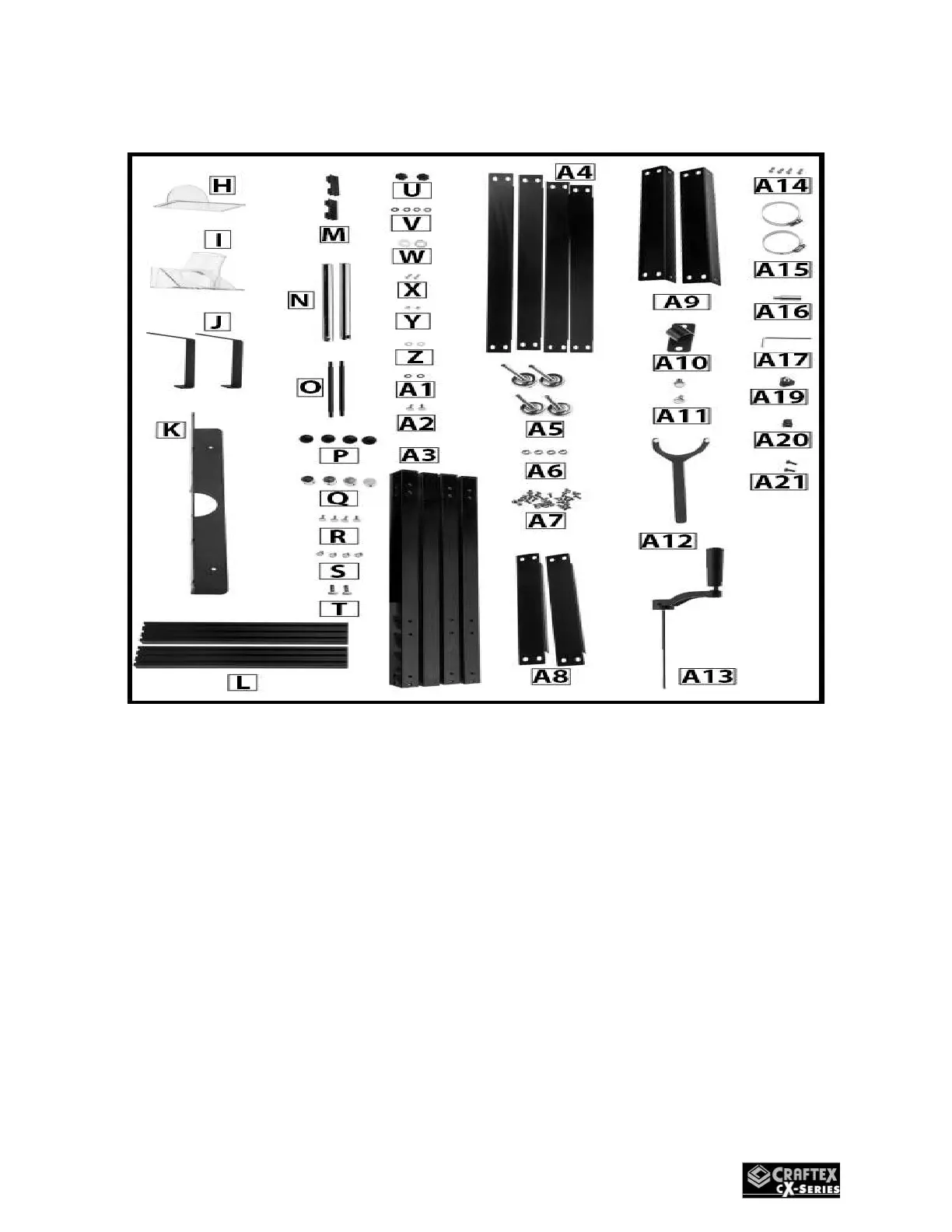

Box 3 Contents

Figure 8

QTY

H. Router Bit Guard 1

I. Dust Port 1

J. Fence Storage Brackets 2

K. Fence Base 1

L. Infeed/Outfeed Fences 2

M. Fence End-caps 4

N. Fence Lock Shafts 2

O. Fence Lock Handles 2

P. Ball Knobs 5/16-18 4

Q. Steel Knobs ¼-20 4

R. Carriage Bolts ¼-20 x ¾

S. Flange Bolts 5/16-18 x ½ 4

T. T-Bolts 5/16-18 x 1 2

U. Star Knobs ¼-20 2

V. Flat Washers ¼ 4

W. Flat Washers 5/16 2

X. Flat HD Screws ¼-20 x 5/8

Y. Hex Nuts ¼-20 2

Z. Flat Washers ¼ 2

A1. Flat Washers ¼ 2

A2. Carriage Bolts ¼-20 x ¾ 2

A3. Legs 4

A4. Long Braces 4
