13
VISE
The CX109 features a heavy duty vise to
hold the work-piece for safe and accurate
cutting.
To use the vise:
Lift the saw arm and place the work-piece
between the jaws of the vise. Secure the
work-piece between the jaws by turning the
vise hand wheel. See figure-16.

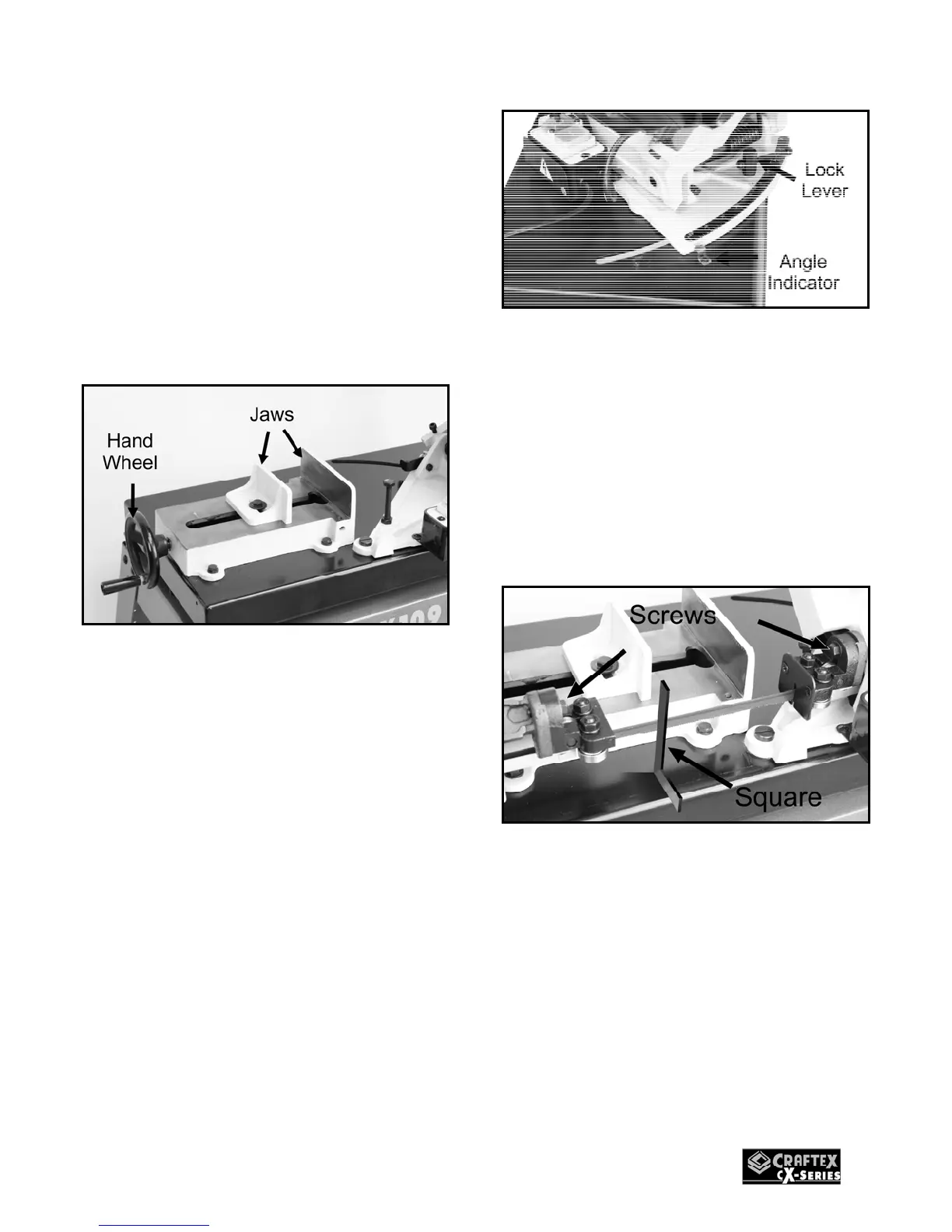

Figure-16 Vise jaws and hand wheel
SWIVEL HEAD
The CX109 features swivel head which
allows cutting work-pieces in different
angles up to 45°.
To rotate the head:
Make sure the switch is in the OFF position
the cord is disconnected from the power
source.
Loosen the lock lever shown in figure-17
and rotate the head to the desired angle
using the angle indicator. Re-tighten the
lock lever when the head is in the desired
angle.
Figure-17 Rotating the head
SQUARING BLADE TO
THE BASE
1. Turn the switch OFF and disconnect the
cord from the power source.
2. Take a machinist’s square and place it
on the base as shown in figure-18.
Figure-18 Squaring the blade to the base
3. Check to see if the blade is making
contact along the entire width of the
blade.
4. If adjustment is necessary, loosen screw
shown in figure-18 and rotate the blade
guide slightly until the blade is square
along its entire width with the base and
re-tighten the screws.
