SET UP
Tools Required QTY
Phillips #1 Screwdriver 1
12mm socket or wrench 1
36” Straightedge 1
36” Level 1
3mm, 5mm, and 12mm Hex Allen
Keys 1
2 x 4 x 12” Wood Block 2
24” Fine Ruler 1

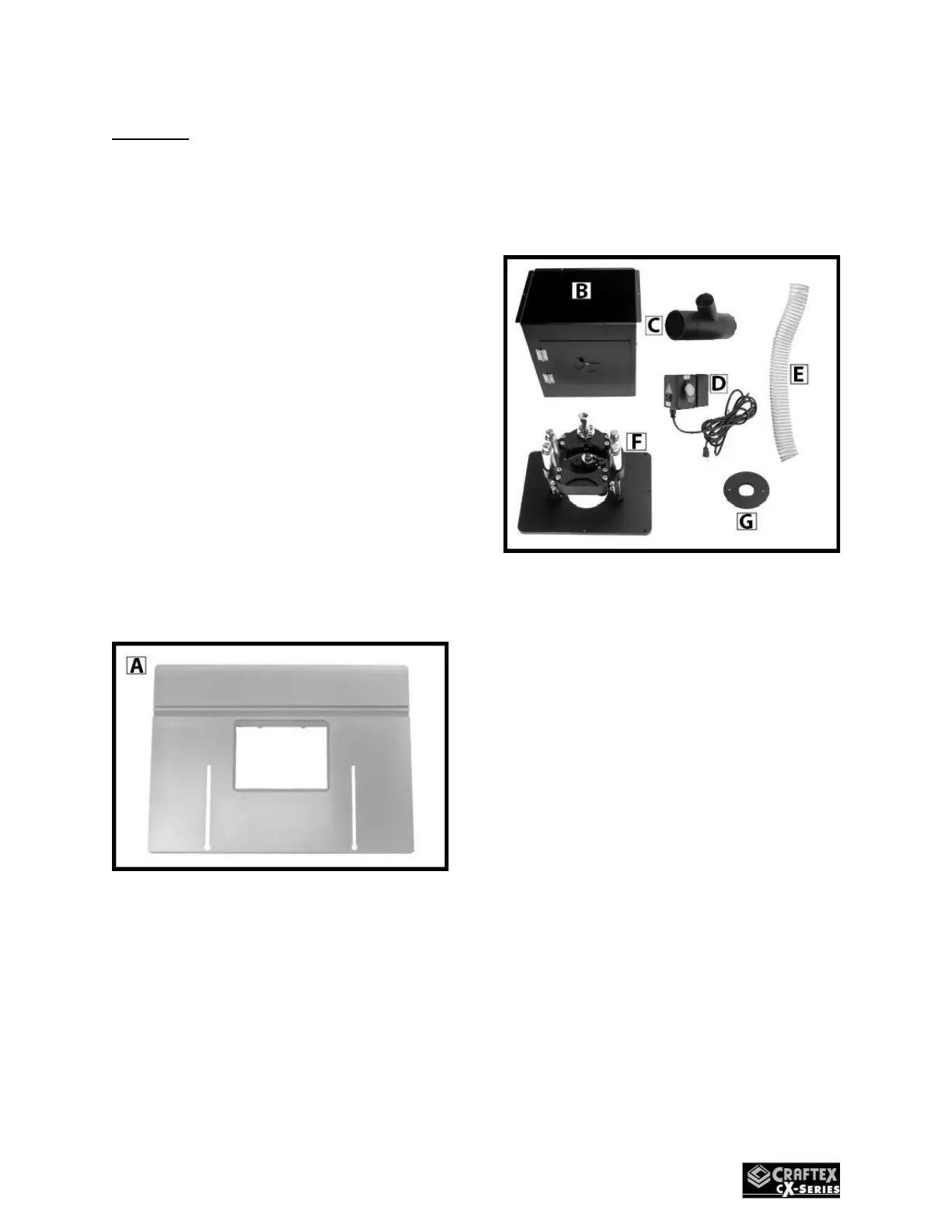

Component Inventory
Box 1 Contents (Fig.5)
QTY
A. Table 1
Figure 5
Box 2 Contents (Fig.7)
QTY
B. Dust Box 1
C. Y-Fitting 4”x4”x2.5” 1
D. 110V Electrical Switch
& Bracket 1
E. Dust Hose 2-1/2” x 28” 1
F. Router Lift Assembly 1
G. Table Insert 1
Figure 7
