Preparation _
Important: When using an existing outlet box, be sure the box is securely
A attached to the building structure and can support the full weight of the fan.
Failure to do so can result in serious injury or death.
Turn off circuit breakers and wall switch to the fan
supply line leads.
Warning: Failure to disconnect power supply prior to
installation may result in serious injury or death.To
reduce the risk of shock, this fan must be installed with
an isolating wall control/switch.
Determine mounting method to use.
A. Downrod Mount
B. Angle Mount
Craftmade Part #45AD (see dealer)
Downrod Installation
(Normal Ceilings)
IMPORTANT: If using the angle mount
method, check to make sure the ceiling
angle is not steeper than 35°. Angles greater
than 35° will require a 45° angle adapter.
~I
Downrod Installation
(VaultedCeilings)
Check to make sure blades are at
least 30" from any obstruction.
1----~r=FL-- _
30"
Check downrod length to 0.75m
ensure blades are at least Min.
l'
above the floor.
84"
(2.1m)
Min.
Step 4

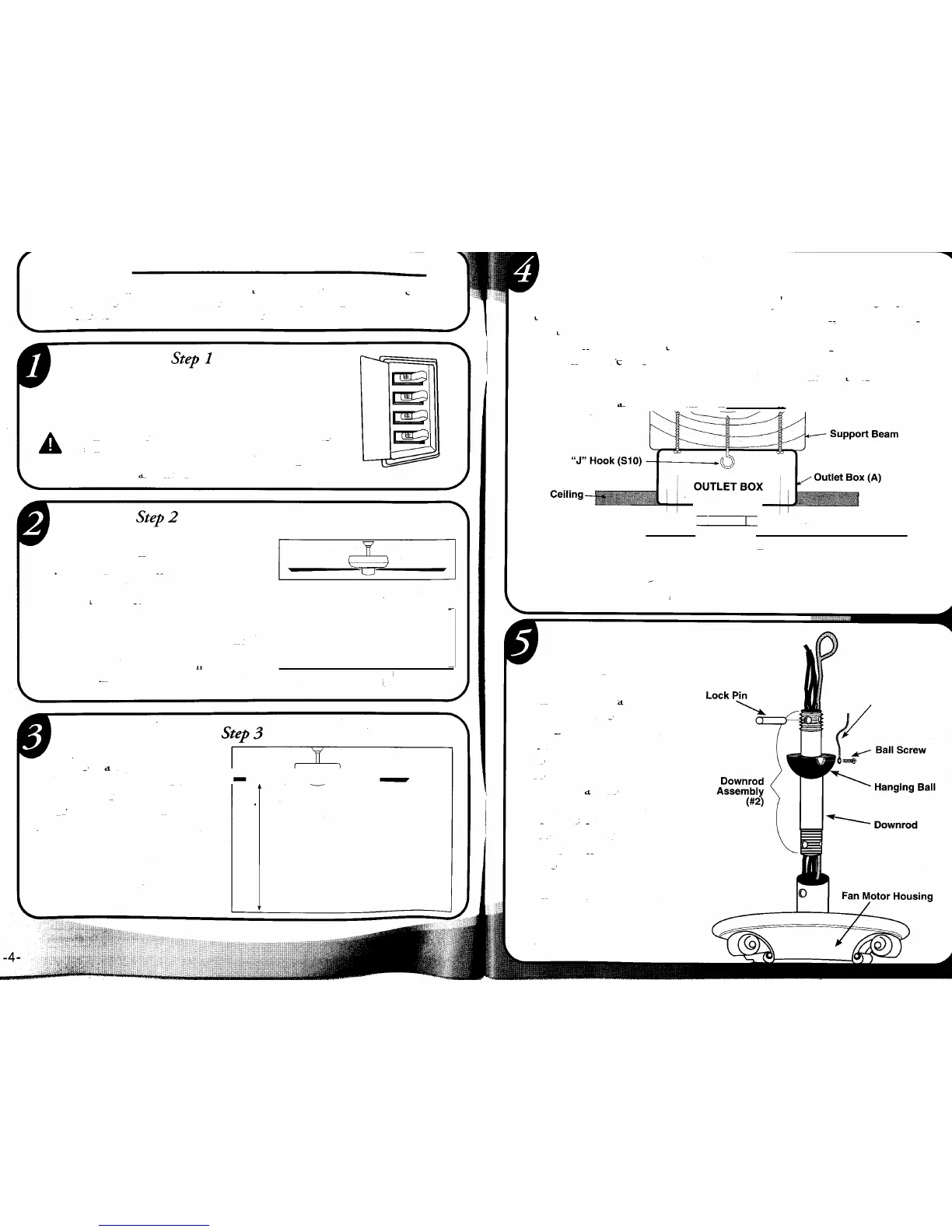

Prior to securing mounting bracket, screw "]" hook (S10) into ceiling
outlet box as a secondary support means. Secure mounting bracket (1) to
the outlet box (A) by tightening bracket screws
&
washers (S3) as shown.
If not mounting to an outlet box, use wood screws (S1) and washers (S3)
and mount securely to ceiling beam. Be sure at this point to insert
canopy screws (S2) in bracket. NOTE: Do not mount directly to sheet rock or
ceiling tile.
NOTE:
J
Hook installation is a Canadian requirement only.
&W
I
[Jif@Mountin
g
BraCket(1)
Bracket Screws "'"
&
Washers (53)
@1 ---- l@
Wood Screws (51) ---
J
~1-~----1~
I-WOOd Screws (51)
Canopy Screws (52)
Step 5
Green Ground
Wire
Locate downrod
assembly (#2). Loosen
ball screw on black
hanging ball to free lock
pin. Black hanging ball
will slide down. Remove
ground screw and green
ground wire. Remove
hanging ball from
downrod and save all
parts. Insert fan wires
through downrod. Screw
downrod into top of fan
motor housing, being
careful that wires are
pulled through.
To Next Page
