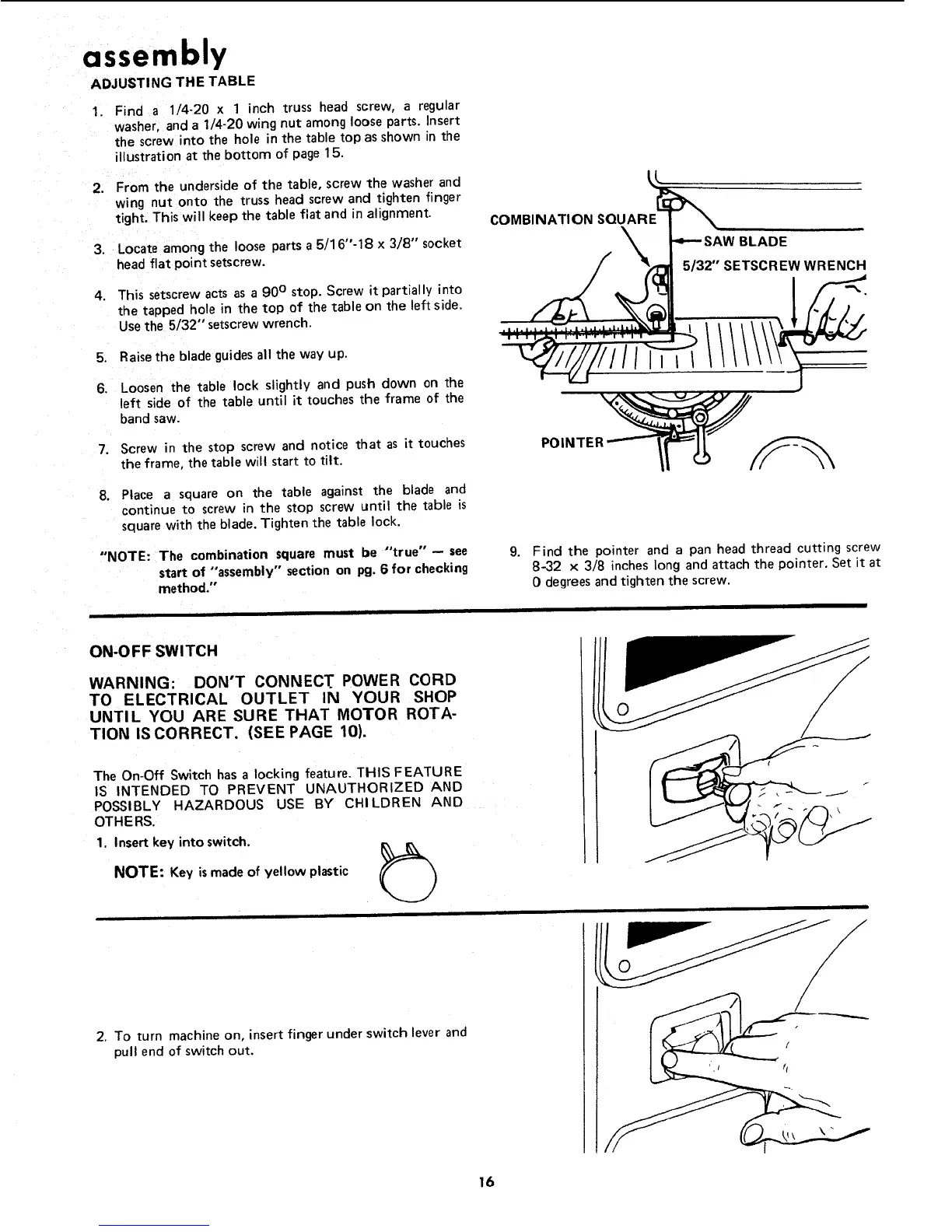

assembly
ADJUSTING THE TABLE
1. Find a 1/4-20 x 1 inch truss head screw, a regular
washer, and a 1/4-20 wing nut among loose parts. Insert
the screw into the hole in the table top as shown in the
illustration at the bottom of page 15.
2. From the underside of the table, screw the washer and
wing nut onto the truss head screw and tighten finger
tight. This will keep the table fiat and in alignment.
3. Locate among the loose parts a 5/16"-18 x 3/8" socket
head flat point setscrew.
4. This setscrew acts as a 90 ° stop. Screw it partially into
the tapped hole in the top of the table on the left side.
Use the 5/32" setscrew wrench.
5. Raise the blade guidesall the way up.
6. Loosen the table lock slightly and push down on the
left side of the table until it touches the frame of the
band saw.
7. Screw in the stop screw and notice that as it touches
the frame, the table will start to tilt.
8. Place a square on the table against the blade and
continue to screw in the stop screw until the table =s
square with the blade. Tighten the table lock.
"NOTE: The combination square must be "true"-- see
start of "assembly" section on pg. 6 for checking
method."
5/32"' SETSCREW WRENCH
POINTE
9.
Find the pointer and a pan head thread cutting screw
8-32 × 3/8 inches long and attach the pointer. Set it at
0 degrees and tighten the screw.
ON-OFF SWITCH
WARNING: DON'T CONNECT POWER CORD
TO ELECTRICAL OUTLET IN YOUR SHOP
UNTIL YOU ARE SURE THAT MOTOR ROTA-
TION IS CORRECT. (SEE PAGE 10).
The On-Off Switch has a locking feature. THIS FEATURE
IS INTENDED TO PREVENT UNAUTHORIZED AND
POSSIBLY HAZARDOUS USE BY CHILDREN AND
OTHERS•
1. Insert key into switch.
NOTE: Key is made of yellow plastic
q_J
2. To turn machine on, insert finger under switch lever and
pull end of switch out.
