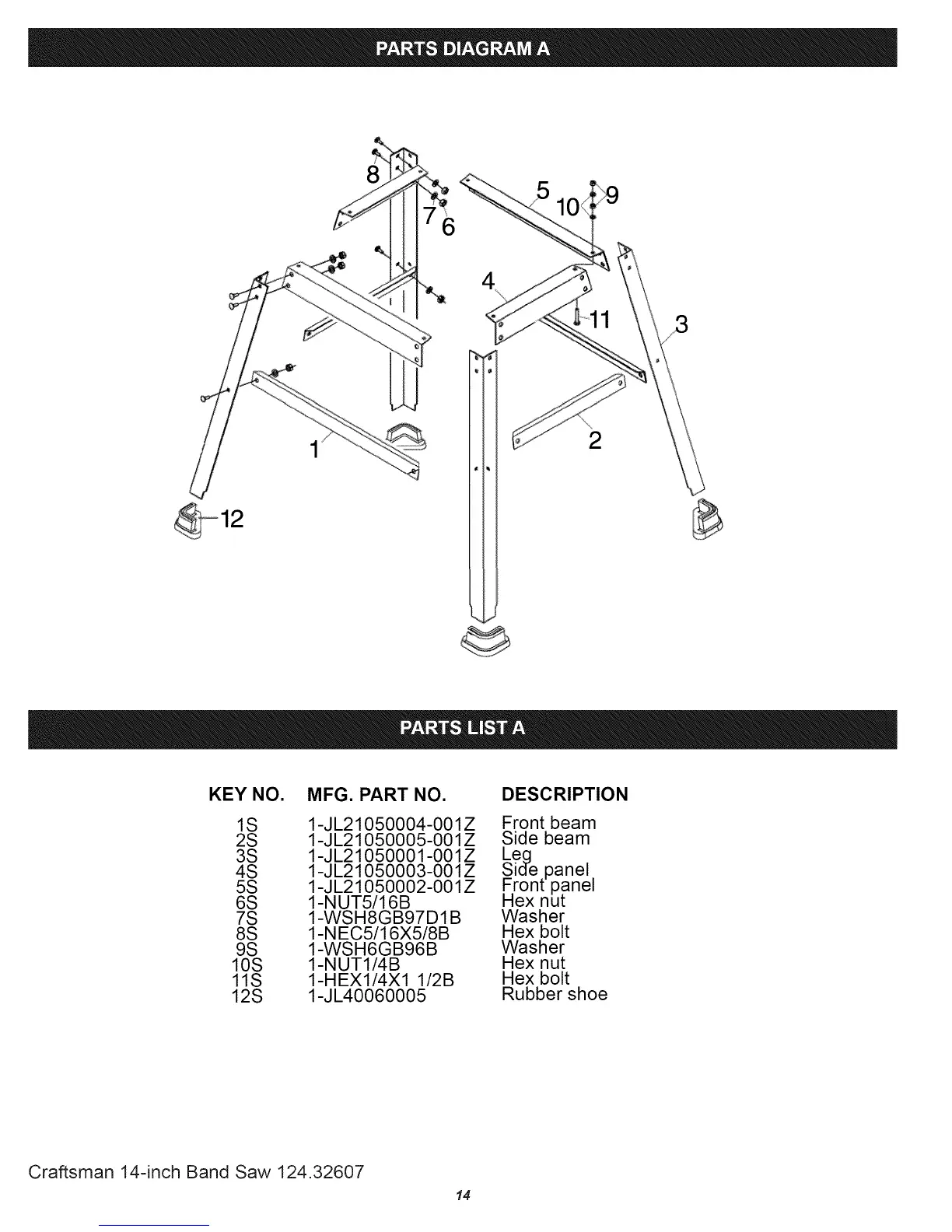

Craftsman 124.32607 - Parts Information; Parts Diagram A & List A

8
6
2
KEY NO. MFG. PART NO. DESCRIPTION
1S 1-JL21050004-001Z Front beam
2S 1-JL21050005-001Z Side beam
3S 1-JL21050001-001Z Le;.q
4S 1-JL21050003-001Z Side panel
5S 1-JL21050002-001Z Front panel
6S 1-NUT5/16B Hex nut
7S 1-WSH8GB97 D1B Washer
8S 1-NEC5/16X5/8B Hex bolt
9S 1-WSH6GB96B Washer
10S 1-NUT1/4B Hex nut
11S 1-HEX1/4X1 1/2B Hex bolt
12S 1-JL40060005 Rubber shoe
Craftsman 14-inch Band Saw 124.32607
14
