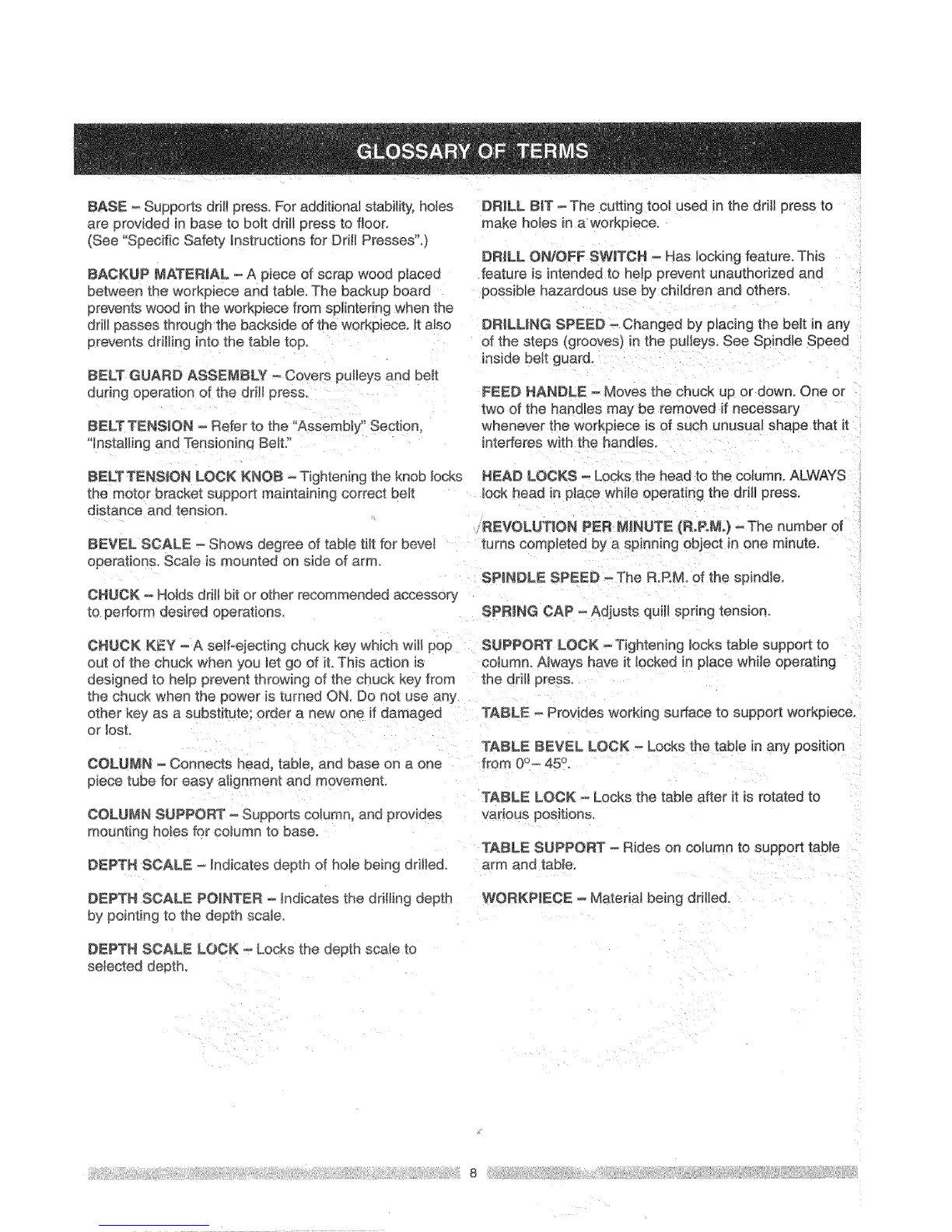

BASE - Supports drilt press. For additional stability, holes
are orovided in base to bolt dMII press to floor,
(See "Specific Safety Instructions for Drill Presses",
BACKUP MATER(`AL - A piece of scrap wood placed
between the worKpiece and table. The backup board
prevents wood in the workpiece from splintering when the
drill passes through the backside of the workpiece. It also
prevents dr#Hng into the table too,
BELT GUARD ASSEMBLY - Covers oWleys and celt
dudnq operation of the ddi Dress,
BELT TENS(`ON - Refer to the "Assembly" Section
"installing and Tensioninq Belt:
8ELTTENS(`ON LOCK KNOB -Tightening the knob _ocks
the motor bracket support maintaining correct belt
distance and tension.
BEVEL SCALE - Shows degree of table tilt tel bevel
operations. Scale is mounted on side of arm
CHUCK - Holds drill bit or other recommended accessory
to perform desired operations.
CHUCK KEY - A seH-qecting chuck Key which wilt cop
out of the chuck when you let go of it. This action is
designed to hetp prevent throwing of the crwcK key _rem
the chuck _hen the power is turned ON. Do not use any
other key as a substitute: order a new one if damaged
or tost.
COLUI'dN - Connects bead, table and base on a one
piece tube for easy alignment and movemenL
COLUMN SUPPORT - Supports column and orovides
mounting holes tot column [o base_
DEPTR SCALE - indicates depm of hole being drilled.
DEPTH SCALE POINTER - Indicates the drilling depth
by pointing _uthe depth scale
DEPTR SCALE LOCK - Locks the depth scale [o
selected depm.
DRILL BIT -The cutting tool used in the drill press to
make holes in a workpiece.
DRILL ON/OFF SWITCH - Has locking feature. This
feature is intended to help prevent unauthorized and
possible hazardous use by children and others.
DRILLING SPEED - Changed by placing the belt in any
of the steps (.grooves) in the pulleys. See Sp{ndle Speed
inside bett guard
FEED HANDLE - Moves the chuck uD or down One or
two o{ the handles may be removed if necessary
wr_enever the wontpiece is of such unusual shape that it
interferes with the handles.
HEAD LOCKS - Locks the head to the eolumn. ALWAYS
_ock head _nplace while operating the ddll press,
REVOLUTION PER MINUTE { R,PoM.)-The number of
turns completed by a spinning object in one minute.
SPINDLE SPEED -The R.RM. of the spindle.
SPRING CAP - Adiusts quill spring [ens_on,
SUPPORT LOCK - Tightening locks table support to
columno AJways have it locked in place while operating
the drill press.
TABLE - Provides working surface to support workpiece.
TABLE BEVEL LOCK - Locks the table in any position
from Ou- 45 L
TABLE LOCK - Locks the table after it is totaled to
various position_
[ABLE SUPPORT - Rides on coIumn [o support table
arm and tabled
WORKPIECE - Materia_ being drilled.
