Craftsman 247 - Page 26

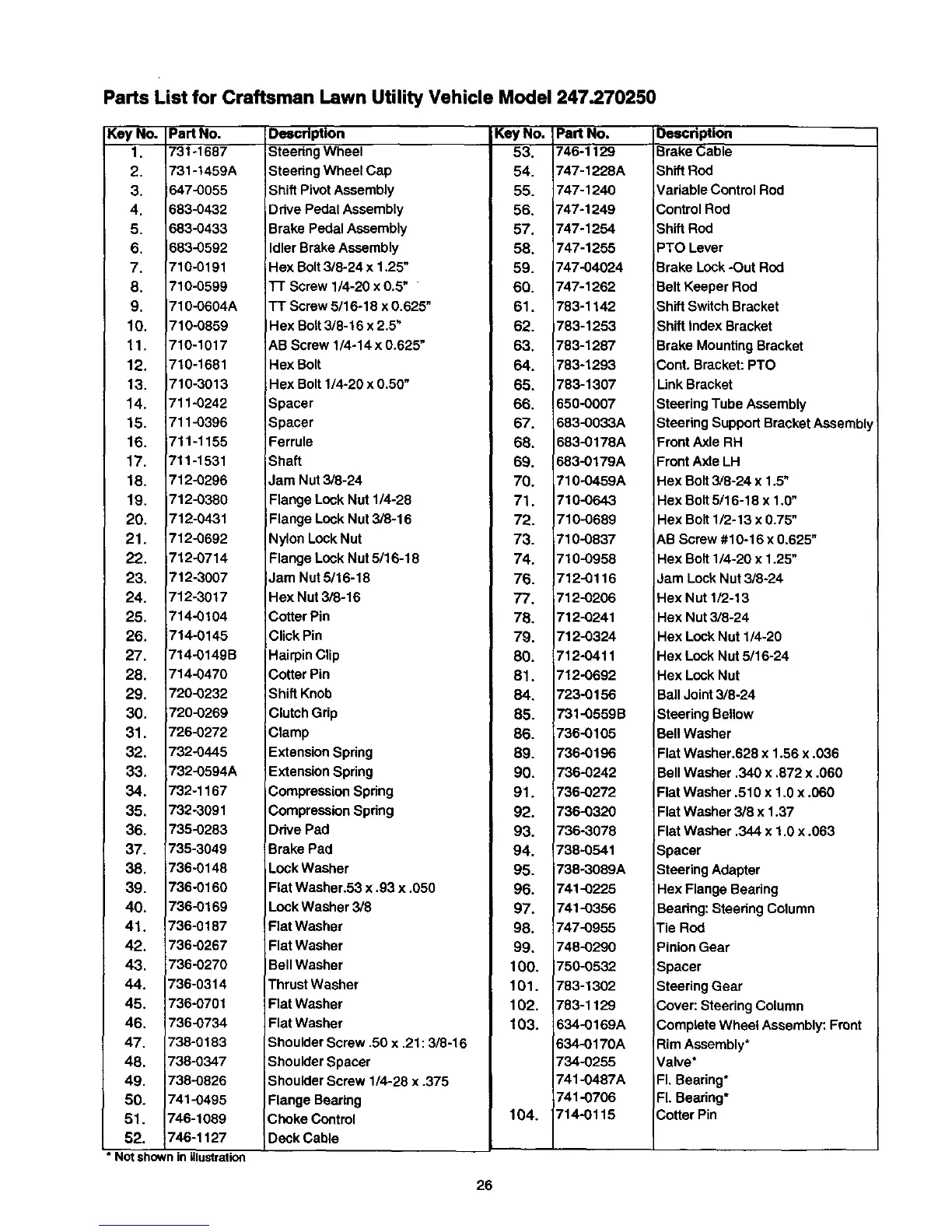

Parts List for Craftsman Lawn Utility Vehicle Model 247.270250
Key No. Part No.
1. 731-1687
2. 731-t459A
3. 647-0055
4. 683-0432
5. 683-0433
6. 683-0592
7. 710-0191
8, 710-0599
9, 710-0604A
10. 710-0859
11, 710-1017
12. 710-1681
13. 710-3013
14. 711-0242
15. 711-0396
16. 711-1155
17. 711-1531
18. 712-0296
19. 712-0380
20. 712-0431
21. 712-0692
22. 712-0714
23. 712-3007
24. 712-3017
25. 714-0104
26. 714-0145
27. 714-0149B
28. 714-0470
29. 720-0232
30. 720-0269
31. 726-0272
32. 732-0445
33. 732-0594A
34, 732-1167
35. 732-3091
36. 735-0283
37. 735-3049
38. 736.0146
39. 736-0160
40. 736-0169
41, 736-0187
42. 736-0267
43. 736-0270
44. 736-0314
45. 736-0701
46, 736-0734
47. 738-0183
48. 738-0347
49. 738,-0826
50. 741-0495
51. 746-1089
52. 746-1127
• Not shownin illustration
Description
Steedng Wheel
Steering Wheel Cap
Shift Pivot Assembly
Ddve Pedal Assembly
Brake Pedal Assembly
Idler Brake Assembly
Hex Bolt 3/8-24 x 1.25"
]-r Screw 1/4-20 x 0.5"
TT Screw 5/16-18 x 0.625"
Hex Bolt 3/8-16 x 2.5"
AB Screw 1/4-14 x 0.625"
Hex Bolt
Hex Bolt 1/4-20 x 0.50"
Spacer
Spacer
Ferrule
Shaft
Jam Nut 3/8-24
Flange Lock Nut 1/4-28
Flange Lock Nut 3/8-16
Nylon Lock Nut
Flange Lock Nut 5/16-18
Jam Nut 5/16-18
Hex Nut 3/8-16
Cotter Pin
Click Pin
Hairpin Clip
Cotter Pin
Shift Knob
Clutch Grip
Clamp
Extension Spring
Extension Spring
Compression Spring
Compression Spdng
Drive Pad
Brake Pad
Lock Washer
Flat Washer.53 x .93 x .050
Lock Washer 3/8
Flat Washer
Flat Washer
Bell Washer
Thrust Washer
Flat Washer
Flat Washer
Shoulder Screw ,50 x ,21 :3/8-16
Shoulder Spacer
Shoulder Screw 1/4-28 x .375
Flange Bearing
Choke Control
Deck Cable
Key No. Part No.
53. 746-1129
54. 747-1228A
55. 747-1240
56. 747-1249
57, 747-1254
58. 747-1255
59. 747-04024
60, 747-1262
61. 783-1142
62. 783-1253
63. 783-1287
64. 783-1293
65. 783-1307
66. 650-0007
67. 683-0033A
68. 683-0178A
69. 683-0179A
70. 710-0459A
71, 710-0643
72. 710-0689
73. 710-0837
74, 710-0958
76. 712-0116
77. 712-0206
78. 712-0241
79. 712-0324
80. 712-0411
81. 712-0692
84. 723-0156
85. 731-0559B
86. 736-0105
89. 736-0196
90. 736-0242
91. 736-0272
92. 736-032O
93. 736-3078
94. 738-0541
95. 738-3089A
96. 741-0225
97. 741-0356
98. 747-0955
99, 748-0290
100, 750-O532
101, 783-1302
102. 783-1129
103. 634-0169A
634-0170A
734-0255
741-0487A
741-0706
104. 714-0115
Oescription
Brake Cable
Shift Rod
Variable Control Rod
Control Rod
Shift Rod
PTO Lever
Brake Lock -Out Red
Belt Keeper Rod
Shift Switch Bracket
IShift Index Bracket
Brake Mounting Bracket
Cont. Bracket: PTO
Link Bracket
Steering Tube Assembly
Steering Support Bracket Assembly
Front Axle RH
Front Axle LH
Hex Bolt 3/8-24 x 1.5"
Hex Bolt 5/16-18 x 1,0"
Hex Bolt 1/2-13 x 0.75"
A.BScrew #10-16 x 0,625"
Hex Bolt 1/4-20 x 1.25"
Jam Lock Nut 3/8-24
Hex Nut 1/2-13
Hex Nut 3/8-24
Hex Lock Nut 1/4-20
Hex Lock Nut 5/16-24
Hex Lock Nut
Bail Joint 3/8-24
Steering Bellow
BellWasher
Flat Washer.628 x 1.56 x .036
BellWasher ,340 x ,872 x .060
Flat Washer .510 x 1.0 x .060
Flat Washer 3/8 x 1.37
Flat Washer ,344 x 1.0 x .063
Spacer
Steering Adapter
Hex Flange Bearing
Beadng: Steering Column
iTie Rod
Pinion Gear
Spacer
Steering Gear
3over: Steering Column
Complete Wheel Assembly: Front
Rim Assembly*
Valve*
FI. Bearing*
FI. Bearing*
Cotter Pin
26
