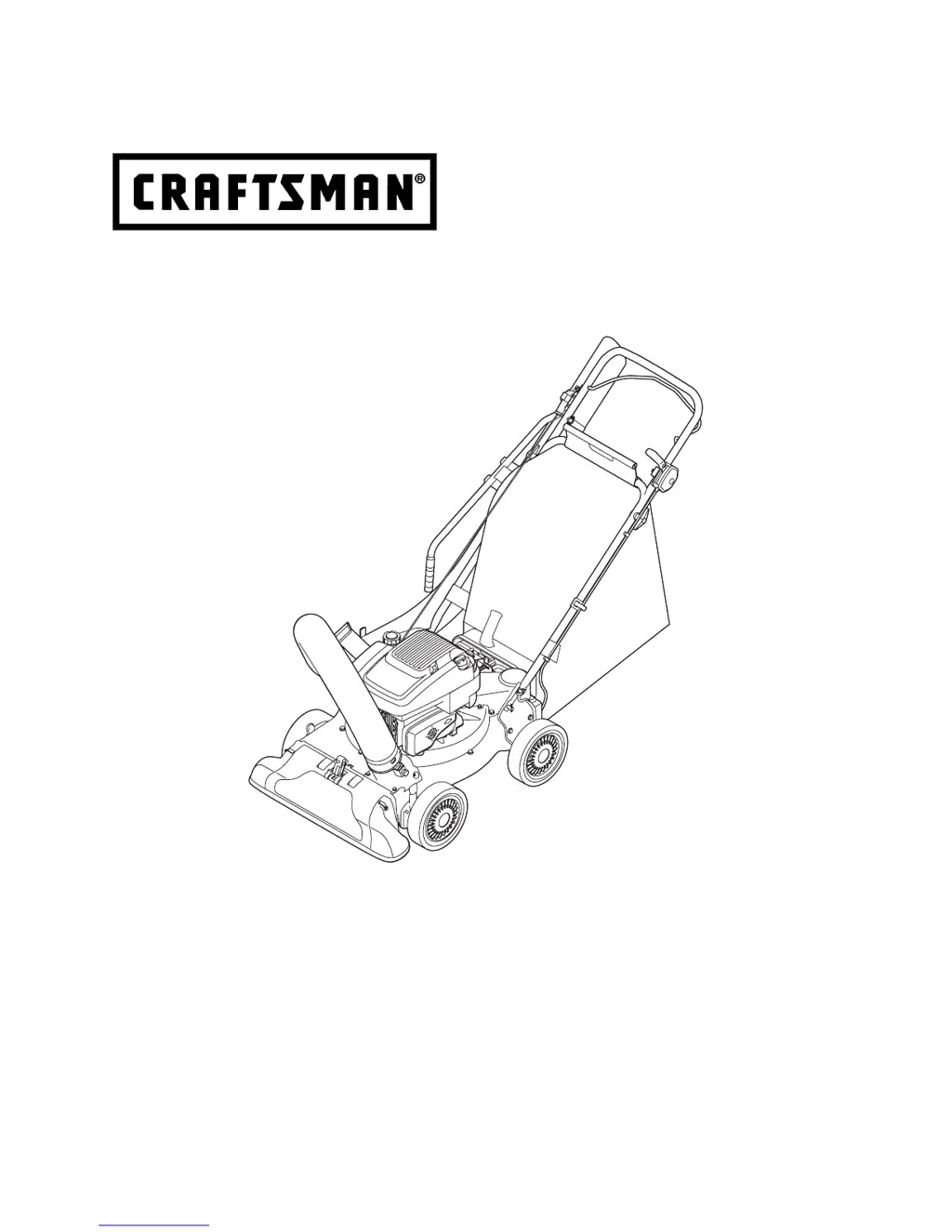

Craftsman 247.77099 - User Manual

Questions and Answers

A
adrianlopezAug 10, 2025
Why does my Craftsman Yard Vacuum lose power and operate erratically?
- A
  Anthony LuceroAug 10, 2025
  If your Craftsman Yard Vacuum is losing power or operating erratically, consider these potential causes: * A loose spark plug wire: Connect and tighten the spark plug wire. * The unit running on CHOKE: Move the choke lever to the OFF position. * A blocked fuel line or stale fuel: Disconnect the fuel line at the carburetor to drain the fuel tank and then refill it with clean, fresh gasoline. Remember that fuel will not last over thirty days unless a fuel stabilizer is used. * Water or dirt in the fuel system: Disconnect the fuel line at the carburetor to drain the fuel tank and refill it with fresh fuel. * Low engine RPM: Always run the engine at full throttle.
B
Brandon TaylorAug 19, 2025
What to do if my Craftsman Yard Vacuum does not discharge material?
- D
  Donald KnightSep 12, 2025
  If your Craftsman Yard Vacuum isn't discharging material, here's what you should check: * A clogged discharge area: Stop the engine immediately, disconnect the spark plug wire, and clean the flail screen and the inside of the discharge opening. * A foreign object lodged in the impeller: Stop the engine immediately, disconnect the spark plug wire, and remove the object. * Low engine RPM: Always run the engine at full throttle. * A full vacuum bag: Empty the bag.
K
Keith HudsonOct 29, 2025
How to fix a Craftsman Yard Vacuum when the engine fails to start?
- R
  Ruben CarrollOct 30, 2025
  If your Craftsman Yard Vacuum engine won't start, here are a few things to check: * Make sure the fuel tank isn't empty or filled with stale fuel. If so, fill it with clean, fresh gasoline. Remember that fuel won't last over thirty days without a fuel stabilizer. * Ensure the spark plug wire is connected to the spark plug. * Check for any obstructions in the impeller that might prevent you from pulling the recoil cord. Disconnect the spark plug wire before removing any object. * Verify that the choke is in the ON position. * Inspect the spark plug. Clean, adjust the gap, or replace it if necessary. * Confirm that the safety switch is properly depressed by the front tab on the bag handle when securing the bag. * Check that the safety switch wire is correctly connected to the ...

Summary

Safety Information

Training for Safe Operation

Read, understand, and follow all instructions on the machine and in the manual(s) before attempting to assemble and operate.

Preparation for Use

Thoroughly inspect the area where the equipment is to be used. Remove all rocks, bottles, cans, or other foreign objects...

Assembly Instructions

Disconnecting the Spark Plug

Before proceeding with assembly, disconnect the spark plug wire from the spark plug and ground it onto the retaining post on the engine.

Operating the Yard Vacuum

Operating Controls Overview

Details the function of key controls including Chipper Chute, Drive Control, Speed Control, Throttle Control, Choke Control, and Starter Handle.

Maintenance and Service

Maintenance Schedule

Provides a schedule for lubrication, engine checks, air cleaner, spark plug, muffler, and cleaning based on usage hours or seasons.

Lubrication and Cleaning Procedures

Engine Maintenance Tasks

Adjustments and Repairs

Troubleshooting Guide

Engine Starting Issues

Performance Problems

Craftsman 247.77099 Specifications

General

Engine Type	4-cycle
Weight	14.5 lbs
Collection Method	Bag
Starting System	Recoil
Engine Brand	Craftsman
Engine Displacement	190 cc
Power Source	Gasoline
Bag Capacity	2 bushels
Collection Bag Capacity	2 bushels
