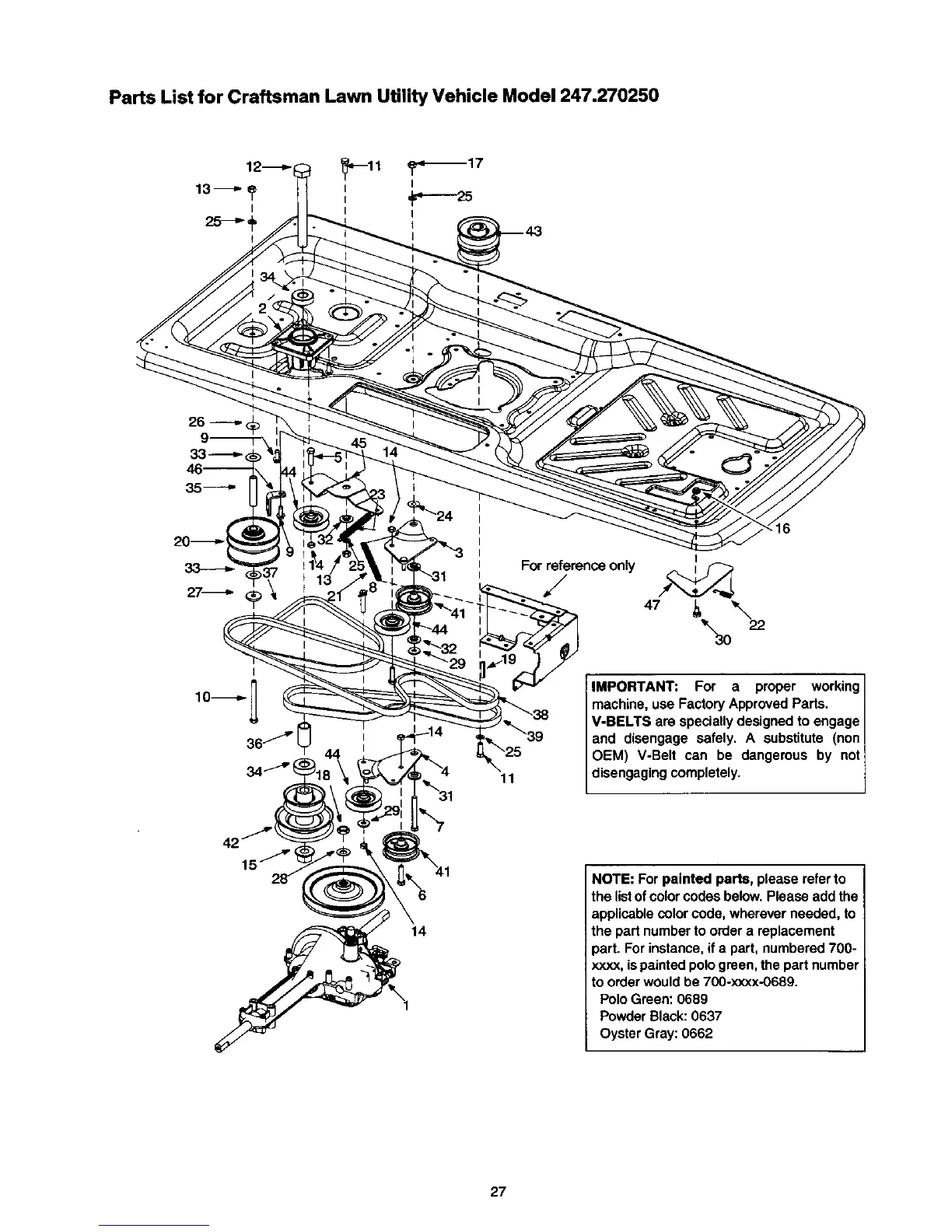

Parts List for Craftsman Lawn Utility Vehicle Model 247.270250
For reference only
/
16
11
IMPORTANT: For a proper working
machine, use Factory Approved Parts.
V-BELTS are specially designed to engage
and disengage safely. A substitute (non
OEM) V-Belt can be dangerous by not
disengaging completely.
14
NOTE: For painted parts, please refer to
the listof color codes below. Please add the
applicable color code, wherever needed, to
the part number to order a replacement
part. For instance, if a part, numbered 700-
xxxx, ispainted pologreen, the part number
to order would be 700-xxxx-0689.
Polo Green: 0689
Powder Black: 0637
Oyster Gray: 0662
27
