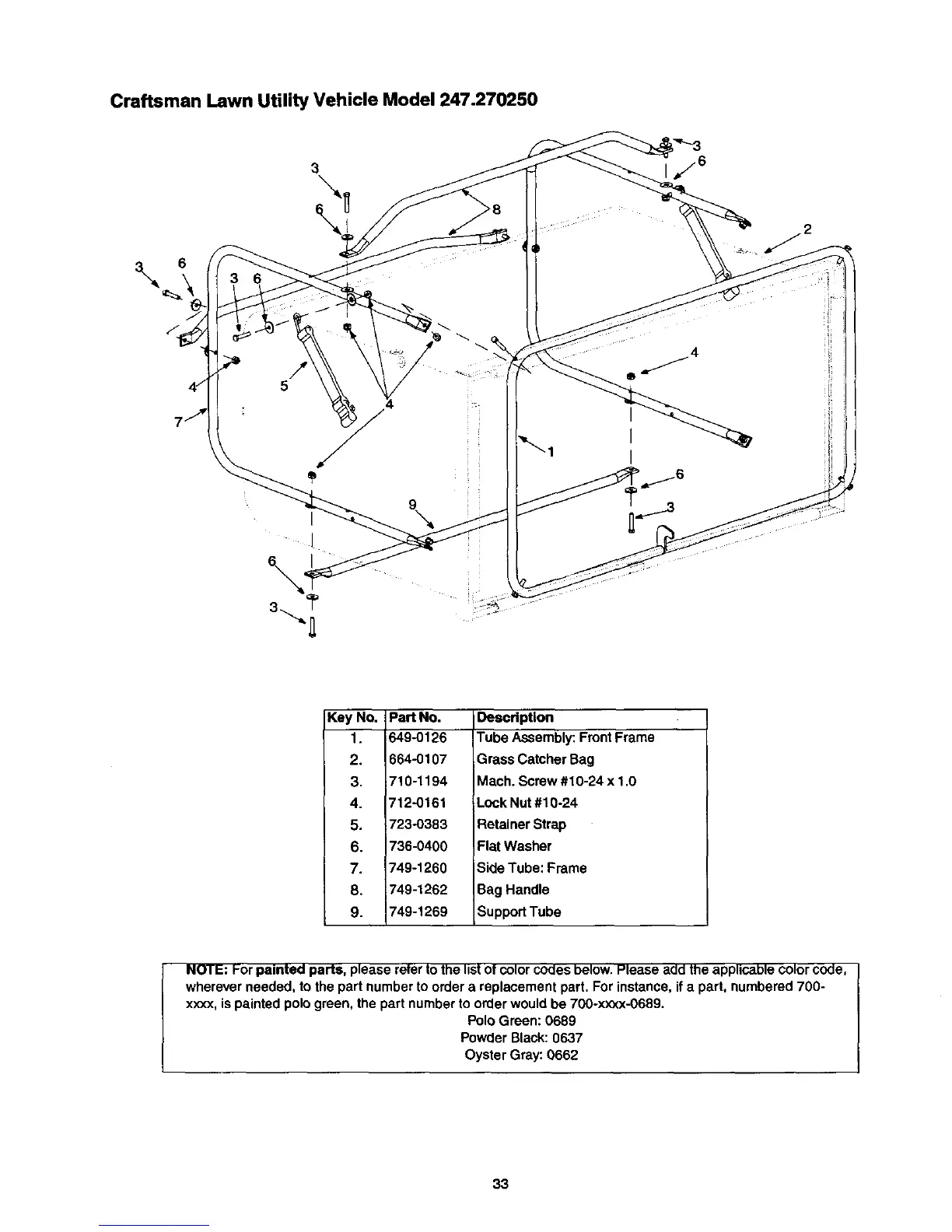

Craftsman Lawn Utility Vehicle Model 247.270250
3
\
I
I
j6
Key No. Part NO.
1. 649-0126
2. 664-0107
3. 710-1194
4. 712-0161
5. 723-0383
6. 736-0400
7. 749-1260
8. 749-1262
9. 749-1269
Description
Tube Assembly: Front Frame
Grass Catcher Bag
Mach. Screw #10-24 x 1.0
Lock Nut #10-24
Retainer Strap
Flat Washer
Side Tube: Frame
Bag Handle
Support Tube
NOTE: For painted parts, please refer to the list of color codes below. Please add the applicable color code,
wherever needed, to the part number to order a replacement part. For instance, if a part, numbered 700-
xxxx, is painted polo green, the part number to order would be 700-xxxx-0689.
Polo Green: 0689
Powder Black: 0637
Oyster Gray: 0662
