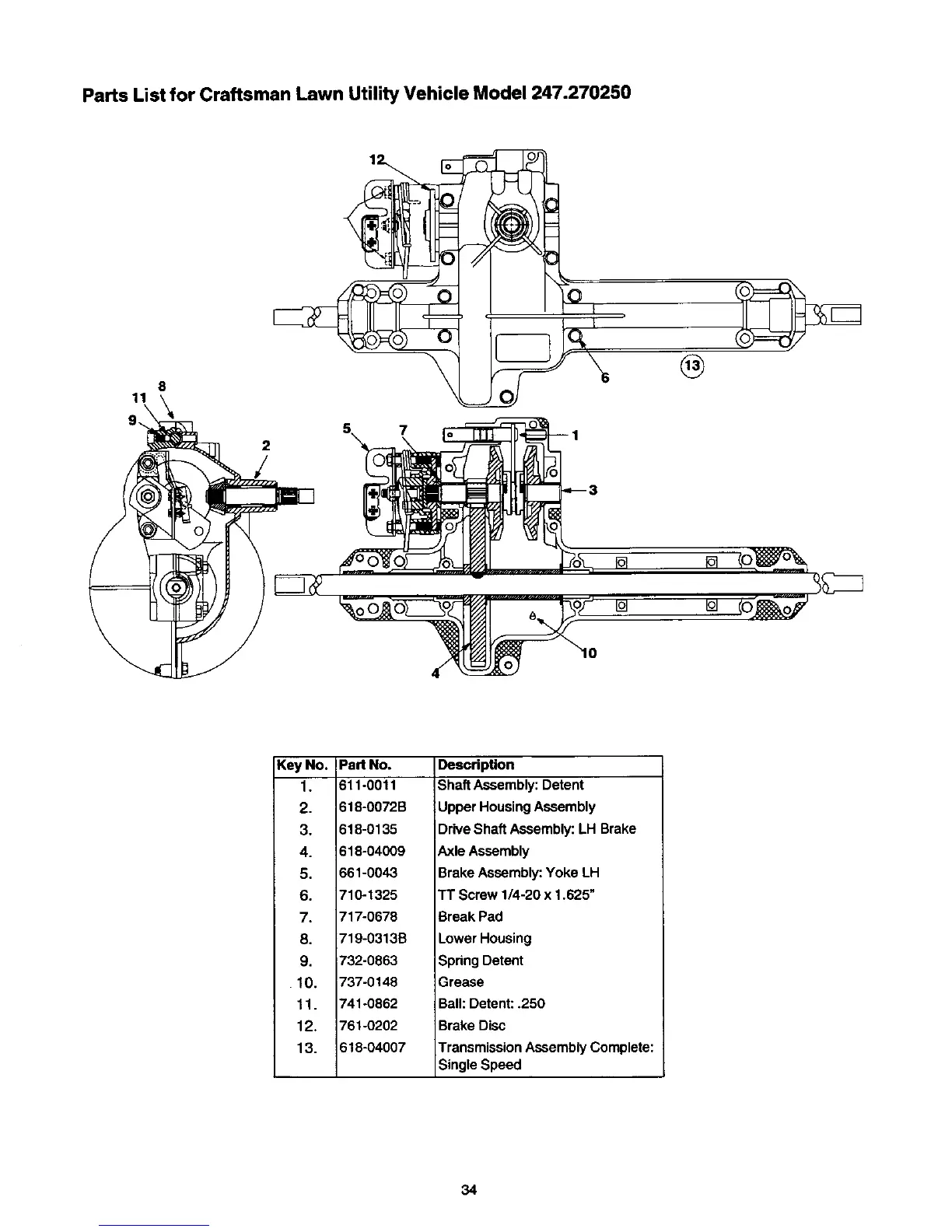

Parts List for Craftsman Lawn Utility Vehicle Model 247.270250
2
/
1
®
I0
KeyNo.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
Part No.
611-0011
618-0072B
610-0135
610-04009
661-0043
710-1325
717-0678
719-0313B
732-0863
737-0148
741-0862
761-0202
618-04007
Description
Shaft Assembly: Detent
Upper Housing Assembly
Drive Shaft Assembly: LH Brake
Axle Assembly
Brake Assembly: Yoke LH
TT Screw 1/4-20 x 1.625"
Break Pad
Lower Housing
Spring Detent
Grease
Ball: Detent: .250
Brake Disc
Transmission Assembly Complete:
Single Speed
