Attach the negative lead of the DVOM to the side
of the diode with a band on it.
Place the positive lead on the other side of the
diode.

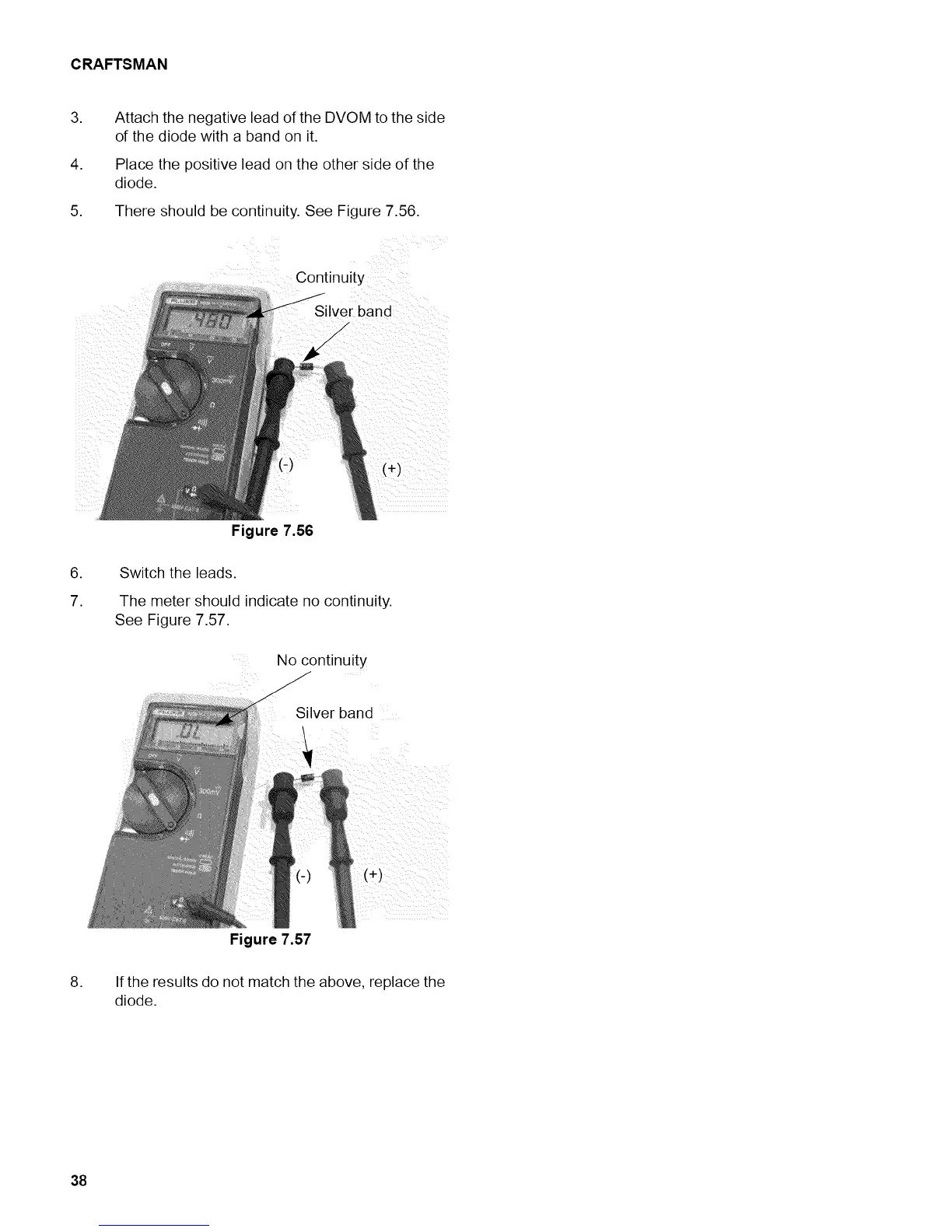

There should be continuity. See Figure 7.56.
Figure 7.56
Continuity
Silver band
(+)
,
7.
Switch the leads.
The meter should indicate no continuity.
See Figure 7.57.
No continuity
Silver band
Figure 7.57
,
If the results do not match the above, replace the
diode.
