OPERATION
WARNING: YOUR ROUTER SHOULD NEVER BE PLUGGED IN WHEN YOU ARE ASSEMBLING PARTS OR
MAKING ADJUSTMENTS. ALWAYS WEAR SAFETY GLASSES OR EYESHIELDS BEFORE BEGINNING POWER
TOOL OPERATION.
If any parts are missing do not operate your Router until the missing parts are replaced.

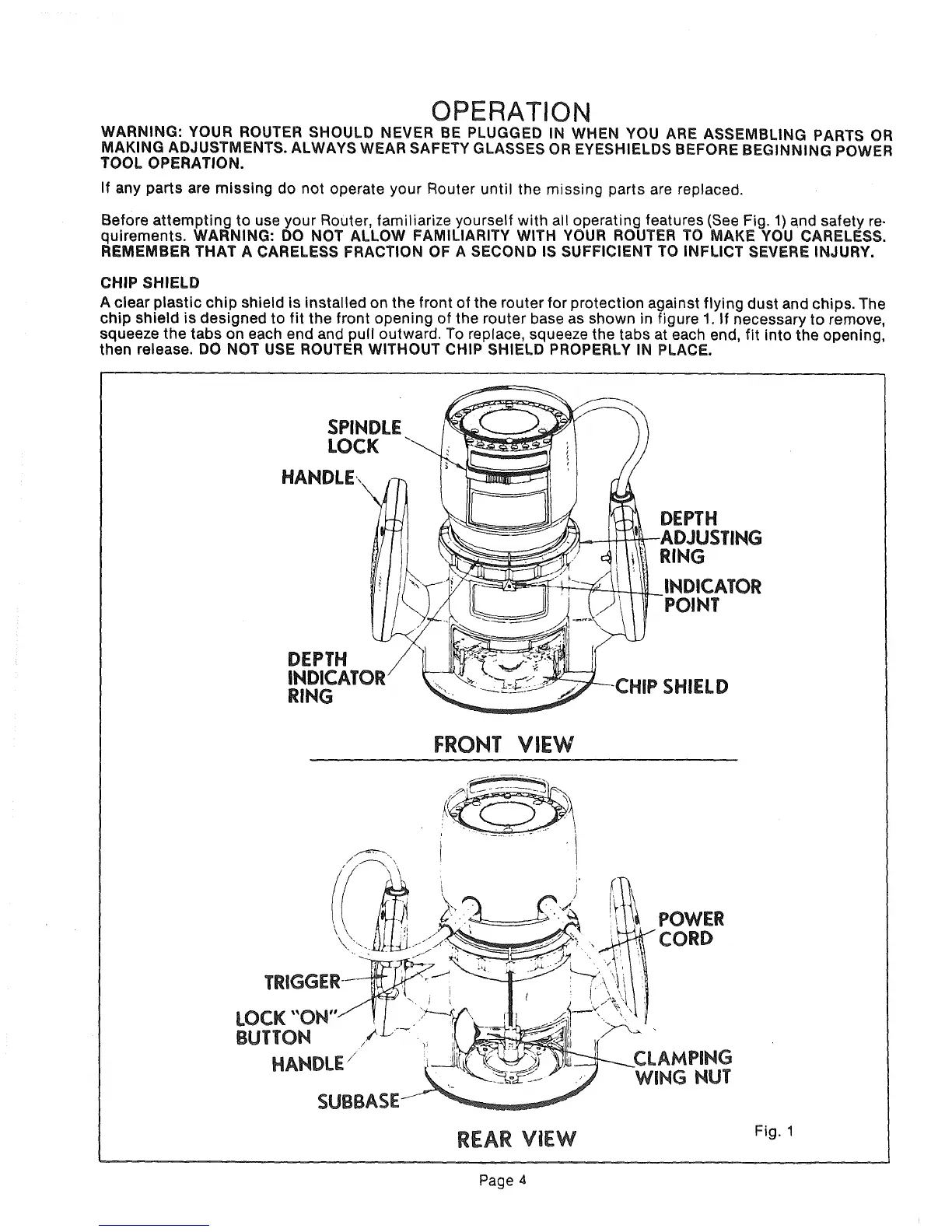

Before attempting to use your Router, familiarize yourself with all operating features (See Fig. 1) and safety re-
quirements. WARNING: DO NOT ALLOW FAMILIARITY WITH YOUR ROUTER TO MAKE YOU CARELESS.
REMEMBER THAT A CARELESS FRACTION OF A SECOND IS SUFFICIENT TO INFLICT SEVERE INJURY.
CHIP SHIELD
A clear plastic chip shield is installed on the front of the router for protection against flying dust and chips. The
chip shield is designed to fit the front opening of the router base as shown in figure 1. If necessary to remove,
squeeze the tabs on each end and pull outward. To replace, squeeze the tabs at each end, fit into the opening,
then release. DO NOT USE ROUTER WITHOUT CHIP SHIELD PROPERLY IN PLACE.
SPINDLE
LOCK
DEPTH
RING
iNDICATOR
POINT
DEPTH
INDICATOR
RING
SHIELD
FRONT VIEW
POWER
:ORD
CLAMPING
WiNG NUT
REAR ViEW
Fig. 1
Page 4
