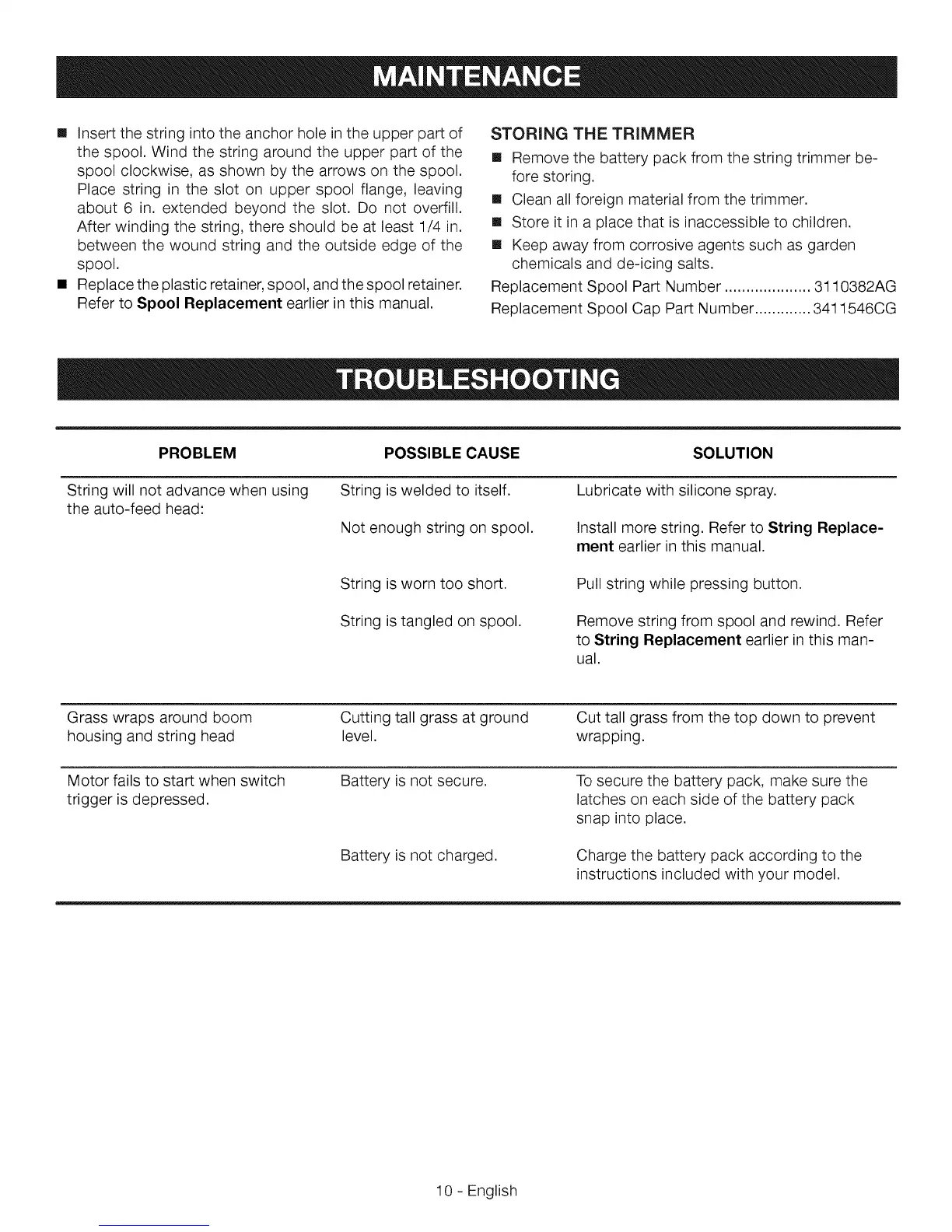

[] Insertthestringintotheanchorholeintheupperpartof
thespool.Windthestringaroundtheupperpartofthe
spoolclockwise,asshownbythearrowsonthespool.
Placestringinthesloton upperspoolflange,leaving
about6 in.extendedbeyondthe slot.Donotoverfill.
Afterwindingthestring,thereshouldbeatleast1/4in.
betweenthewoundstringandtheoutsideedgeofthe
spool.
[] Replacetheplasticretainer,spool,andthespoolretainer.
RefertoSpoolReplacementearlierinthismanual.
STORINGTHE TRIMMER
[] Remove the battery pack from the string trimmer be-
fore storing.
[] Clean all foreign material from the trimmer.
[] Store it in a place that is inaccessible to children.
[] Keep away from corrosive agents such as garden
chemicals and de-icing salts.
Replacement Spool Part Number .................... 3110382AG
Replacement Spool Cap Part Number ............. 3411546CG
PROBLEM POSSIBLE CAUSE SOLUTION
String will not advance when using
the auto-feed head:
String is welded to itself.
Not enough string on spool.
Lubricate with silicone spray.
Install more string. Refer to String Replace-
ment earlier in this manual.
String is worn too short.
Pull string while pressing button.
String is tangled on spool. Remove string from spool and rewind. Refer
to String Replacement earlier in this man-
ual.
Grass wraps around boom
housing and string head
Cutting tall grass at ground
level.
Cut tall grass from the top down to prevent
wrapping.
Motor fails to start when switch
trigger is depressed.
Battery is not secure.
Battery is not charged.
To secure the battery pack, make sure the
latches on each side of the battery pack
snap into place.
Charge the battery pack according to the
instructions included with your model.
10 - English
