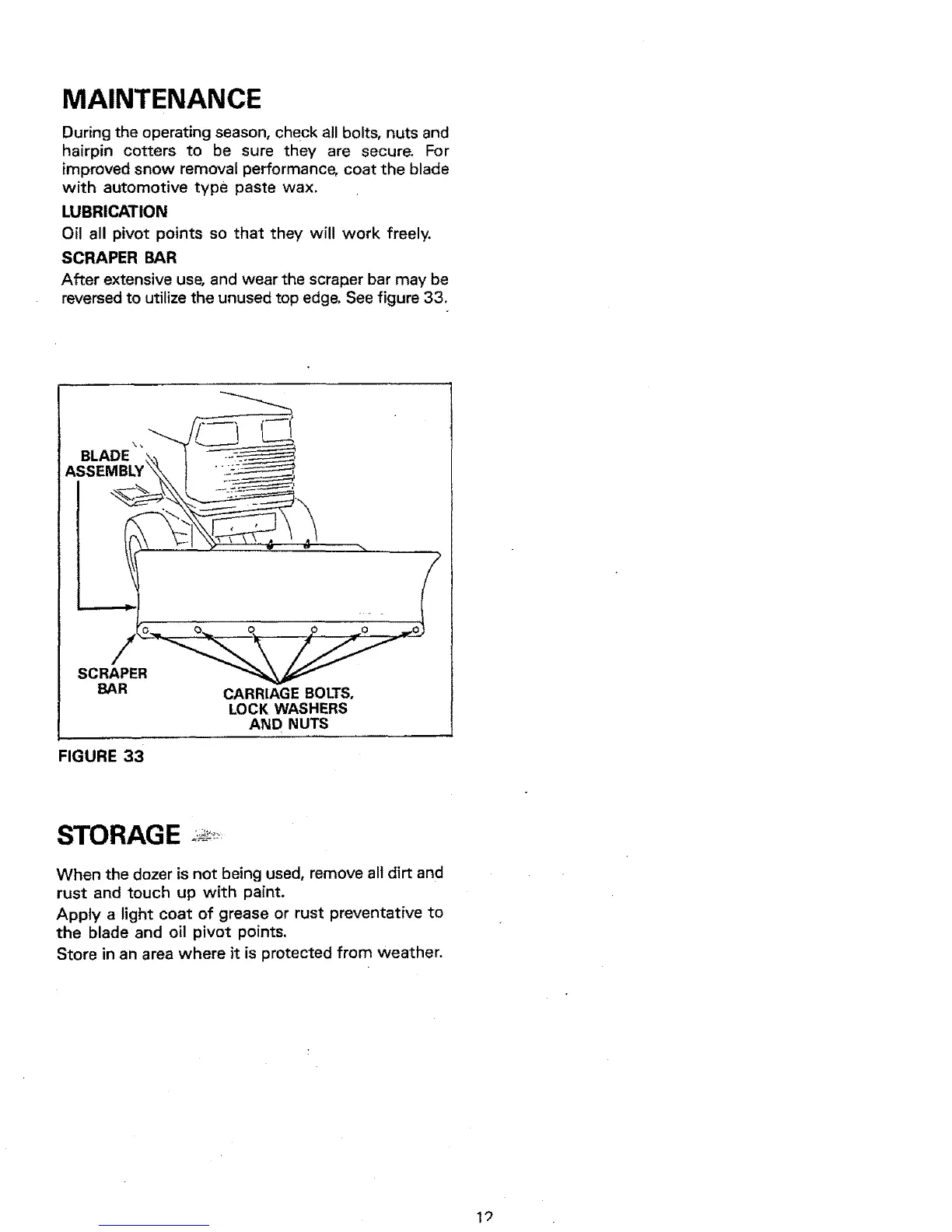

MAINTENANCE
During the operating season, check all bolts, nuts and
hairpin cotters to be sure they are secure. For
improved snow removal performance, coat the blade
with automotive type paste wax.
LUBRICATION
Oil all pivot points so that they will work freely.
SCRAPER BAR
After extensive use, and wear the scraper bar may be
reversed to utilize the unused top edge, See figure 33.
BLADE \" _ l "-_
ASSEMBLY\\I -::_
- f
SCRAPER
BAR CARRIAGE BOLTS,
LOCK WASHERS
AND NUTS
FIGURE 33
STORAGE ,_'....
When the dozer is not being used, remove all dirt and
rust and touch up with paint.
Apply a light coat of grease or rust preventative to
the blade and oil pivot points.
Store in an area where it is protected from weather.
19
