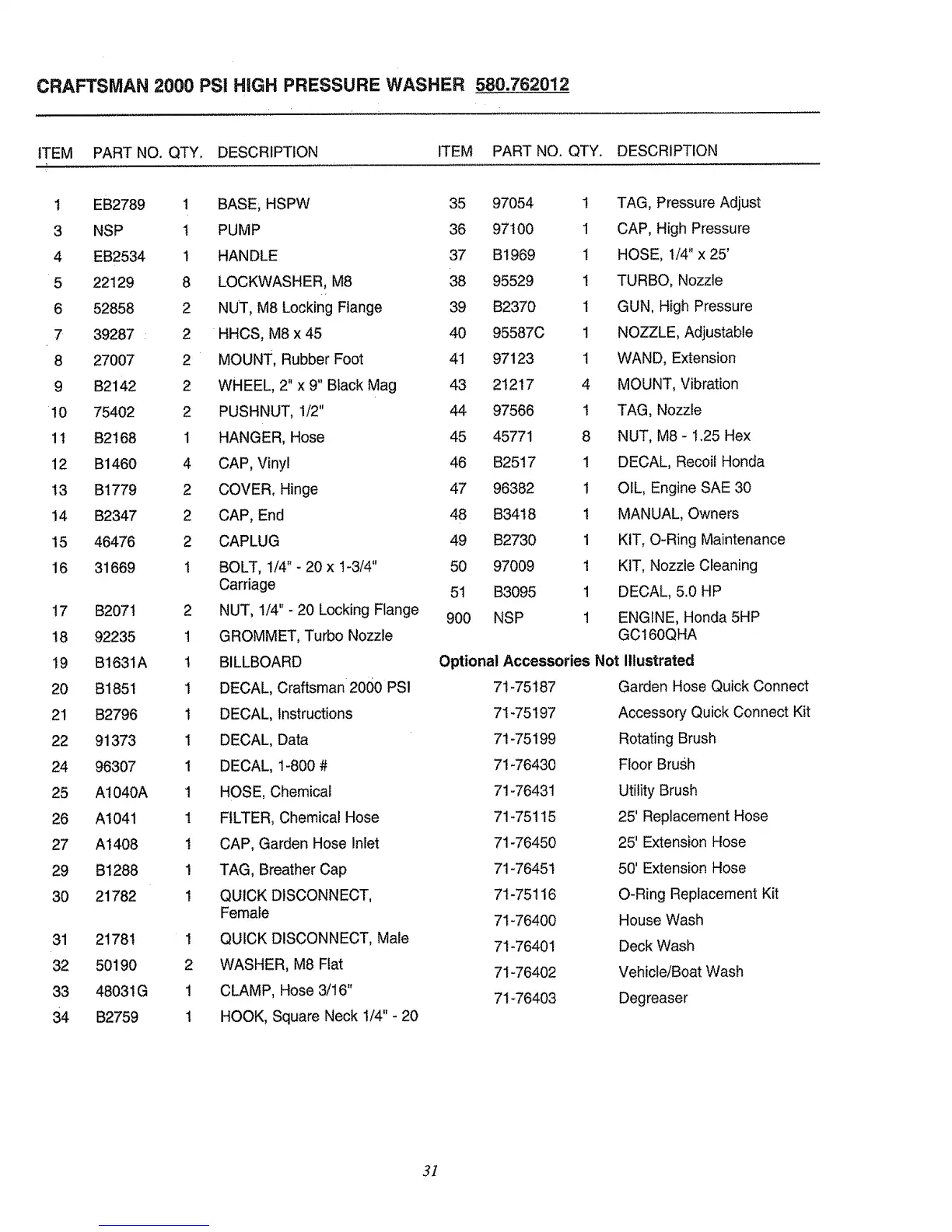

CRAFTSMAN 2000 PSI HiGH PRESSURE WASHER 580.762012
ITEM PART NO. QTY. DESCRIPTION
ITEM PART NO. QTY. DESCRIPTION
t EB2789 1 BASEi HSPW
3 NSP 1 PUMP
4 EB2534 1 HANDLE
5 22129 8 LOCKWASHER, M8
6 52858 2 NUT, M8 Locking Flange
7 39287 : 2 HHCS, M8 x 45
8 27007 2 MOUNT, Rubber Foot
9 B2142 2 WHEEL, 2" x 9" Black Mag
10 75402 2 PUSHNUT, 1/2"
11 B2168 1 HANGER, Hose
12 B1460 4 CAP, Vinyl
13 B1779 2 COVER, Hinge
14 B2347 2 CAP, End
15 46476 2 CAPLUG
16 31669 1 BOLT, 1/4" - 20 x I-3/4"
Carriage
!7 B2071 2 NUT, 1/4" - 20 Locking Flange
18 92235 1 GROMMET, Turbo Nozzle
19 B1631A I BILLBOARD
20 B1851 1 DECAL, Craftsman 2000 PSI
21 B2796 1 DECAL, Instructions
22 91373 1 DECAL, Data
24 96307 1 DECAL, 1-800 #
25 AI040A 1 HOSE, Chemical
26 A1041 1 FILTER, Chemical Hose
27 A1408 t CAP, Garden Hose Inlet
29 B1288 1 TAG, Breather Cap
30 21782 1 QUICK DISCONNECT,
Female
31 21781 1 QUICK DISCONNECT, Male
32 50190 2 WASHER, M8 Flat
33 48031G 1 CLAMP, Hose 3/16"
34 B2759 1 HOOK, Square Neck 1/4" - 20
35 97054 1 TAG, Pressure Adjust
36 97100 1 CAP, High Pressure
37 B1969 1 HOSE, 1/4" x 25'
38 95529 1 TURBO, Nozzle
39 B2370 1 GUN, High Pressure
40 95587C 1 NOZZLE, Adjustable
41 97123 ! WAND, Extension
43 21217 4 MOUNT, Vibration
44 97566 t TAG, Nozzle
45 45771 8 NUT, M8 - 1.25 Hex
46 B2517 1 DECAL, Recoil Honda
47 96382 1 OIL, Engine SAE 30
48 B34t8 1 MANUAL, Owners
49 B2730 1 KIT, O-Ring Maintenance
50 97009 1 KIT, Nozzle Cleaning
51 B3095 1 DECAL, 5.0 HP
900 NSP 1 ENGINE, Honda 5HP
GC160QHA
Optional Accessories Not Illustrated
71-75187 Garden Hose Quick Connect
71-75197 Accessory Quick Connect Kit
7! -75199 Rotating Brush
71-76430 Floor Bru._h
71-76431 Utility Brush
71-75115 25' Replacement Hose
71-76450 25' Extension Hose
71-76451 50' Extension Hose
71-75116 O-Ring Replacement Kit
7I-76400 House Wash
71-76401 Deck Wash
71-76402 Vehicle/Boat Wash
71-76403 Degreaser
3]
