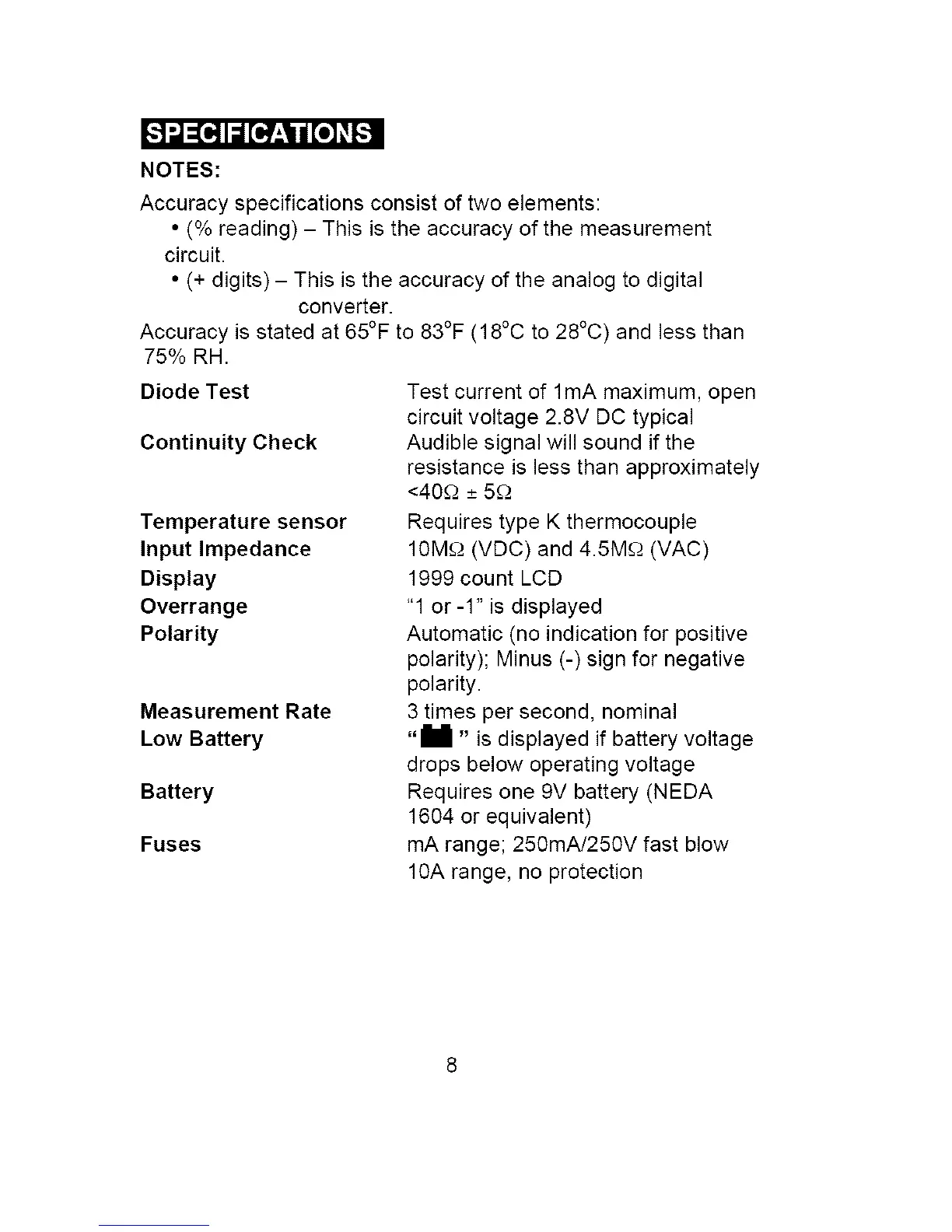

Craftsman 82345 - Specifications

NOTES:
Accuracy specifications consist of two elements:
• (% reading) - This is the accuracy of the measurement
circuit.
• (+ digits) - This is the accuracy of the analog to digital
converter.
Accuracy is stated at 65°F to 83°F (18°C to 28°C) and less than
75% RH.
Diode Test
Continuity Check
Temperature sensor
Input Impedance
Display
Overrange
Polarity
Measurement Rate
Low Battery
Battery
Fuses
Test current of lmA maximum, open
circuit voltage 2.8V DC typical
Audible signal will sound if the
resistance is less than approximately
<40£-._-+5£-2
Requires type K thermocouple
10M£-2(VDC) and 4.5M£-._(VAC)
1999 count LCD
"1 or-1" is displayed
Automatic (no indication for positive
polarity); Minus (-) sign for negative
polarity.
3 times per second, nominal
"_1" is displayed if battery voltage
drops below operating voltage
Requires one 9V battery (NEDA
1604 or equivalent)
mA range; 250mA/250V fast blow
10A range, no protection
