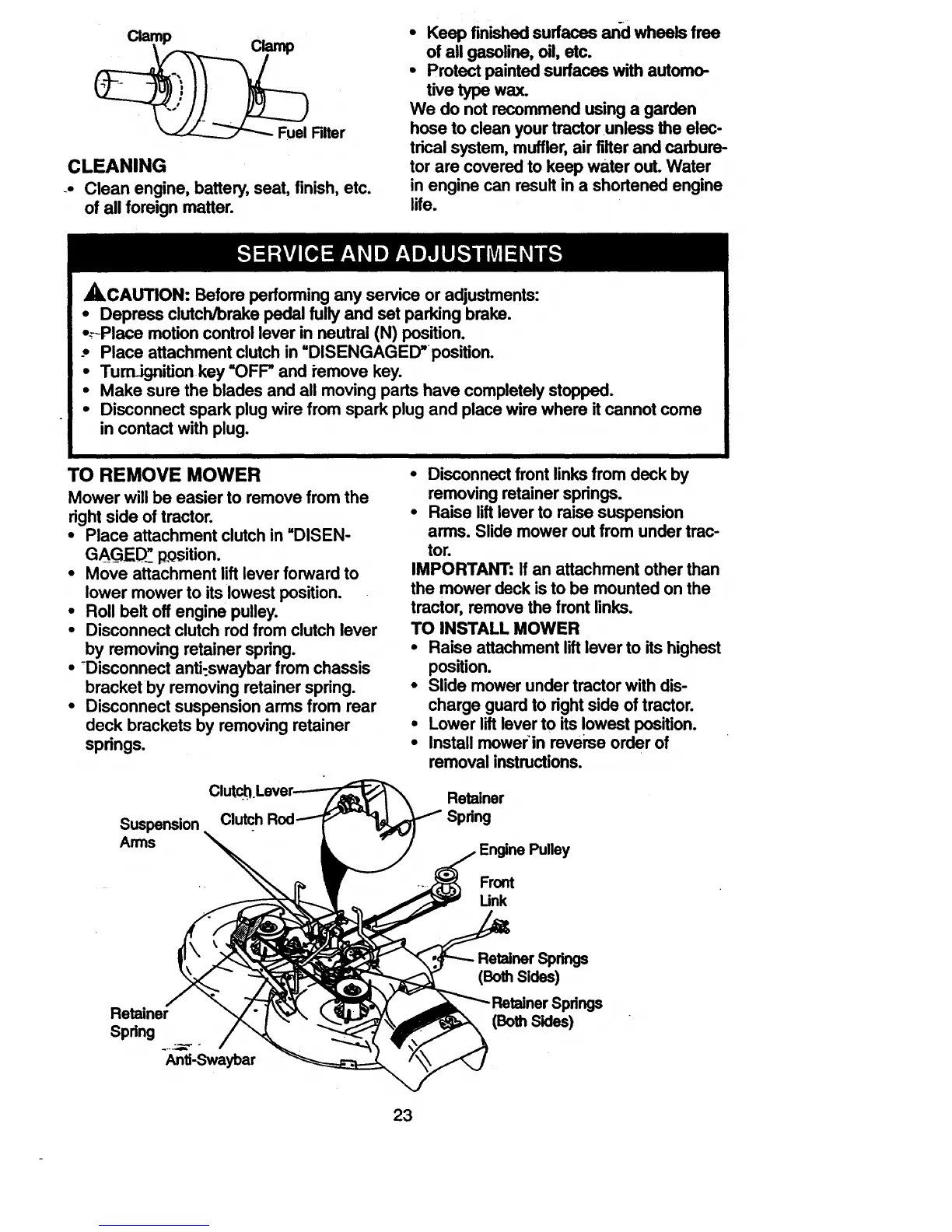

Craftsman 917.270821 - SERVICE AND ADJUSTMENTS; MOWER DECK SERVICE AND ADJUSTMENTS

C_mp Ch_mp
Fuel Filter
CLEANING
-• Clean engine, battery, seat, finish, etc.
of all foreign matter.
Keep finished surfaces arid wheels free
of all gasoline, oil, etc.
• Protect painted surfaces with automo-
tive type wax.
We do not recommend using a garden
hose to clean your tractor unless the elec-
trical system, muffler, air filter and carbure-
tor are covered to keep water out. Water
in engine can result in a shortened engine
life.
,_CAUTION: Before performing any service or adjustments:
• Depress clutch/brakepedal fullyand set parking brake.
•-.--Placemotioncontrollever in neutral (N) position.
; Place attachmentclutchin"DISENGAGED" position.
• TumJgnitionkey "OFF" and Pemove key.
• Make sure the blades and all movingparts have completelystopped.
• Disconnectspark plugwire from spark plugand place wire where it cannot come
in contact with plug.
TO REMOVE MOWER
Mower will be easier to removefromthe
right side oftractor.
• Place attachment clutchin "DISEN-
GAGED_"p.osition.
• Move attachment liftlever forwardto
lower mower to its lowestposition.
• Roll belt off engine pulley.
• Disconnectclutchrodfrom clutchlever
by removingretainer spring.
• +Disconnect anti-swaybarfromchassis
bracketby removingretainerspring.
• Disconnectsuspensionarms from rear
deck brackets by removingretainer
springs.
Suspension
Arms
• Disconnectfrontlinksfrom deck by
removingretainersprings.
• Raise liftleverto raise suspension
arms. Slidemower outfrom undertrac-
tor.
IMPORTANT: If an attachmentother than
the mower deck is to be mountedon the
tractor, remove the frontlinks.
TO INSTALL MOWER
• Raise attachmentlilt lever to itshighest
position.
• Slide mowerundertractorwith dis-
charge guardto rightside oftractor.
• Lower liftleverto its lowest position.
• Installmower'in reveme order of
removalinstructions.
Retainer
Spring
Pulley
Front
Link
Retainer
Spring
AntJ-Swaybar
RetainerSprings
(BothSides)
(BothS_es)
23
