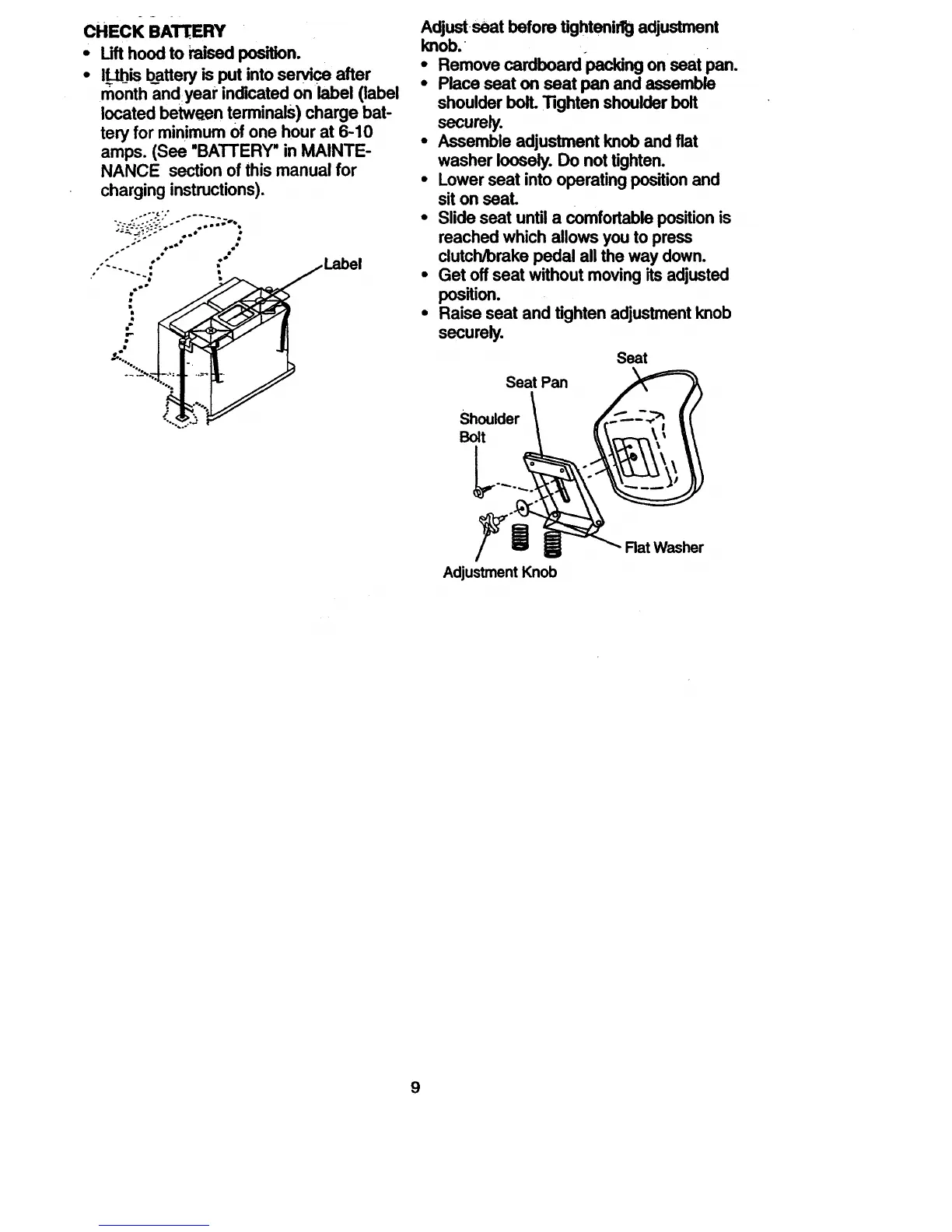

CHECK BAr'[ERY
• Lift hoodto raisedposition
• If_is battery is put intoservice after
month andyear indicatedon label (label
located betweenterminals)charge bat-
tery for minimumof one hourat 6-10
amps. (See"BATTERY" in MAINTE-
NANCE section of this manual for
charging instructions).
o........ _ _ _Label
_,o 9
Adjusts•at before tightanid_ladjustment
knob.
• Remove cardboardpacking on seat pan.
• Place seat on seat pan and assemble
shoulder bolL "Rghten shoulder bolt
securely.
• Assemble adjustment knob and fiat
washer loosely. Do not tighten.
• Lower seat into operating position and
sit on seal
• Slide seat until a comfortable position is
reached which allows you to press
clutch/brake pedal all the way down.
• Get off seat without moving its adjusted
position.
• Raise seat and tighten adjustment knob
securely
Seat
Seat Pan
Shoulder
Bolt
Adjustment Knob
Rat Washer
9
