Craftsman 917.270821 - Seat Assembly

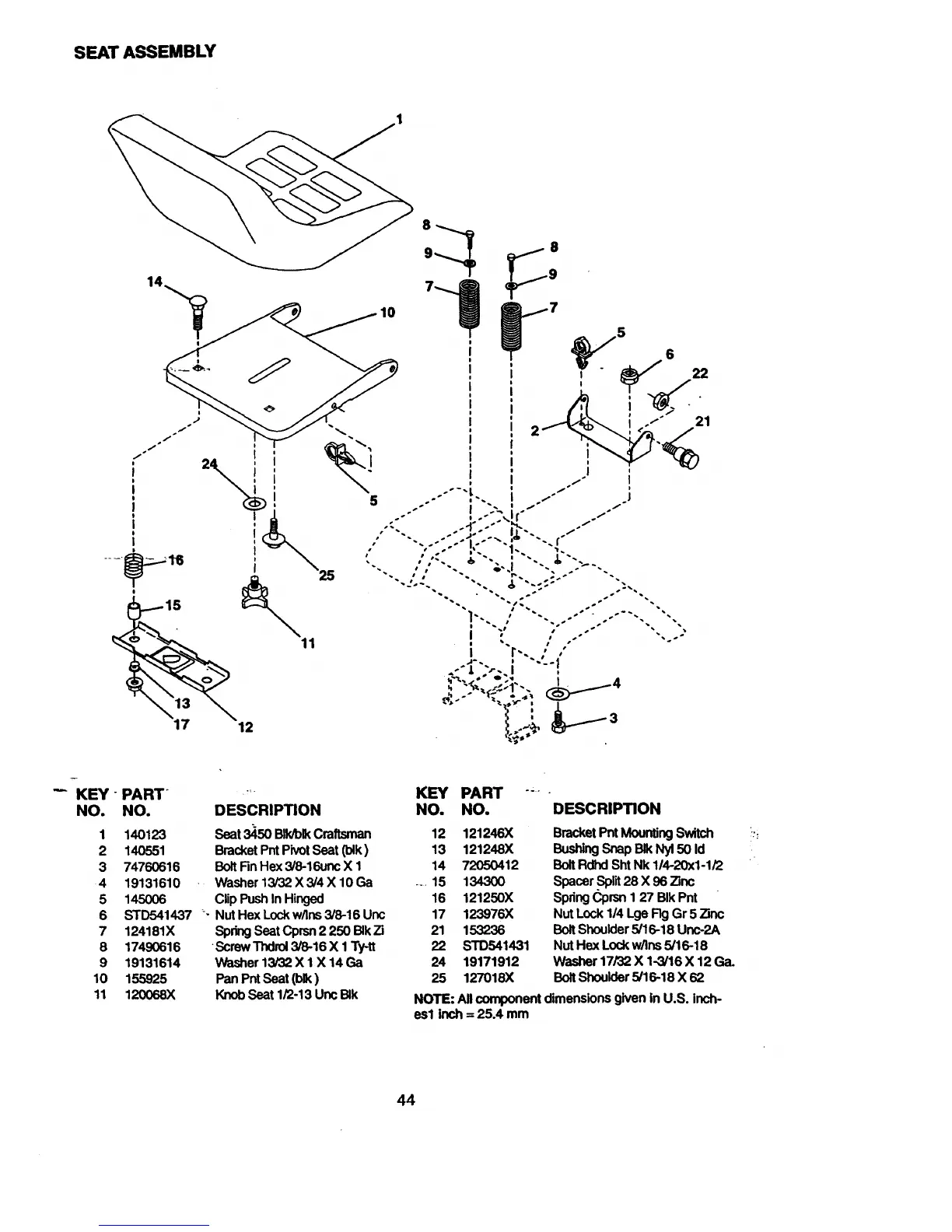

SEAT ASSEMBLY
! i
I
I
I
I
' 15
_:__ 11
12
KEY
NO.
1
2
3
4
5
6
7
8
9
10
11
" PART
NO.
140123
140551
74760616
19131610
145006
STD541437
124181X
17490616
19131614
155925
120068X
DESCRIPTION
Seat 3_50 Blk/'olkCraftsman 12 121246X
Bracket PntPivot Seat (blk) 13 121248X
Bolt Fin Hex 3/8-16unc X 1 14 72050412
Washer 13/32 X 3/4 X 10 Ga .... 15 134300
Clip Push In Hinged 16 121250X
Nut Hex Lockw/Ins 3/8-16 Unc 17 123976X
Spring Seat Cprsn 2 250 BIk71 21 153236
•Screw Thdrol3/8-16 X 1 Ty-tt 22 STD541431
Washer 13/32 X 1 X 14 Ga 24 19171912
Pan Pnt Seat (blk) 25 127018X
Knob Seat 1/2-13 Uric Blk
KEY PART ....
NO. NO. DESCRIPTION
Bracket Pnt Mounting Switch
BushingSnap BIk Ny150 ,d
Bolt Rdhd Sht Nk 1/4-20x1-1/2
Spacer Split 28 X 96 Zinc
Spring (:_:prsn1 27 BIk Pnt
Nut Lock 1/4 Lge Fig Gr 5 Zinc
Bolt Shoulder 5/16-18 Unc-2A
Nut He)( Lock w/Ins 5/16-18
Washer 17/32 X 1-3/16 X 12 Ga.
Bolt Shoulder 5/16-18 X 62
NOTE: Allcomponentdimensionsgivenin U.S. inch-
es1 inch= 25.4 mm
44
