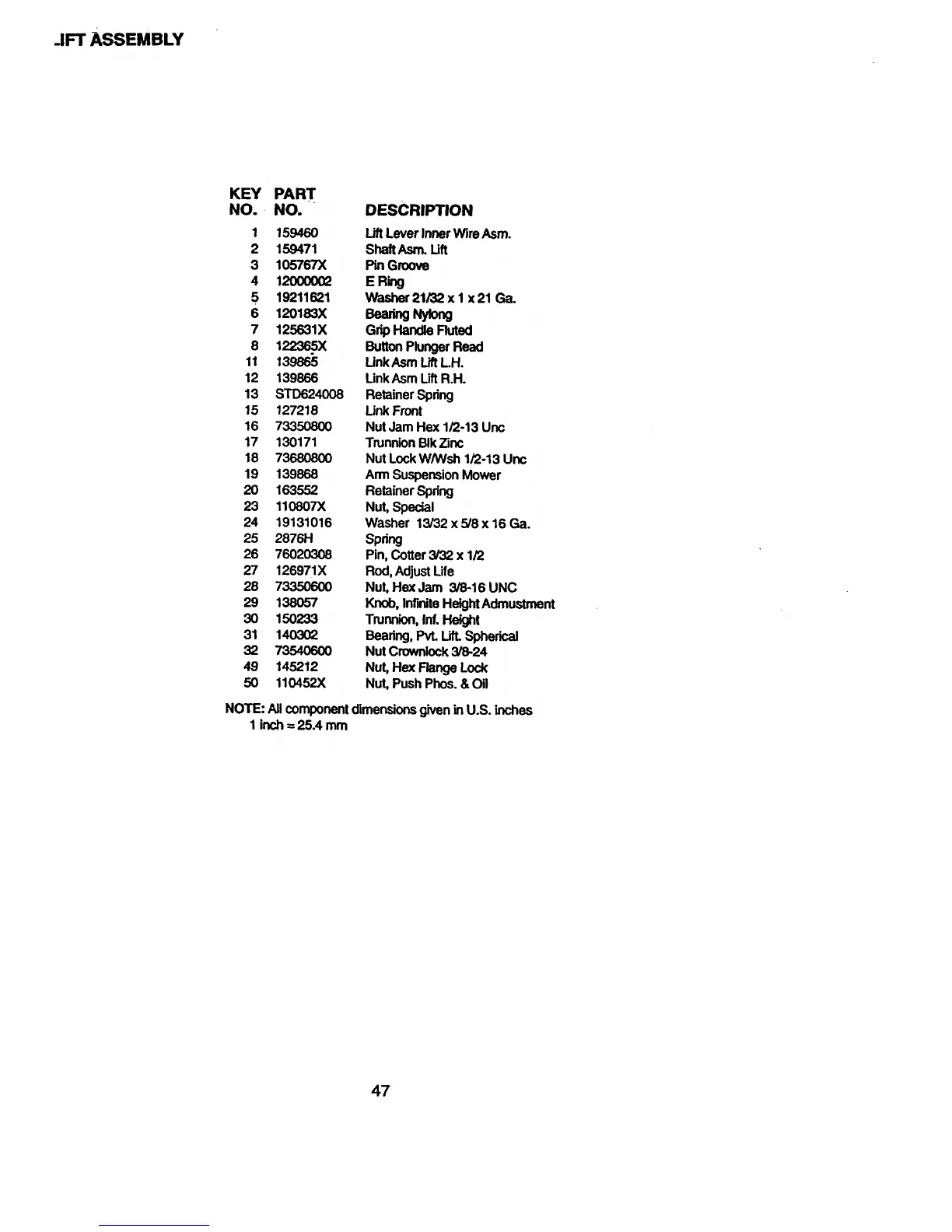

.IFT ASSEMBLY
KEY PART
NO. NO." DESCRIPTION
1 159460 Lift Lever Inner Wire Asm.
2 159471 ShaftAsm. Uft
3 105767X Pin Groove
4 12000002 E Ring
5 19211621 Washer21/32x1 x21Ga.
6 120183X Bearing Nylong
7 125631X Grip Handle Fluted
8 122365X Button Plunger Read
11 139865 UnkAsm Lift LH.
12 139866 UnkAsm Uft R.H.
13 STD624008 Retainer Spring
15 127218 Unk Front
16 73350800 Nut Jam Hex 1/2-13 Unc
17 130171 Trunnion BIk Zinc
18 73680800 Nut LockW/Wsh 1/2-13 Unc
19 139868 Arm Suspension Mower
20 163552 Retainer Spdng
23 110807X Nut, Special
24 19131016 Washer 13/32x5/8x16Ga.
25 2876H Spring
26 76020308 Pin, Cotter 3t32 x 1/2
27 126971X Rod, Adjust Ufe
28 73350600 Nut, Hex Jam 3/8-16 UNC
29 138057 Knob, InfiniteHelghtAdmustment
30 150233 Trunnion, Inf. Height
31 140302 Bearing, PvL Lift. Spherical
32 73540600 Nut Crownlock 3/8-24
49 145212 Nut, Hex Flange Lock
50 110452X Nut, Push Phos. &Oil
NOTE:AllcomponentdimensionsgiveninU.S.inches
1 inch= 25.4 mm
47
