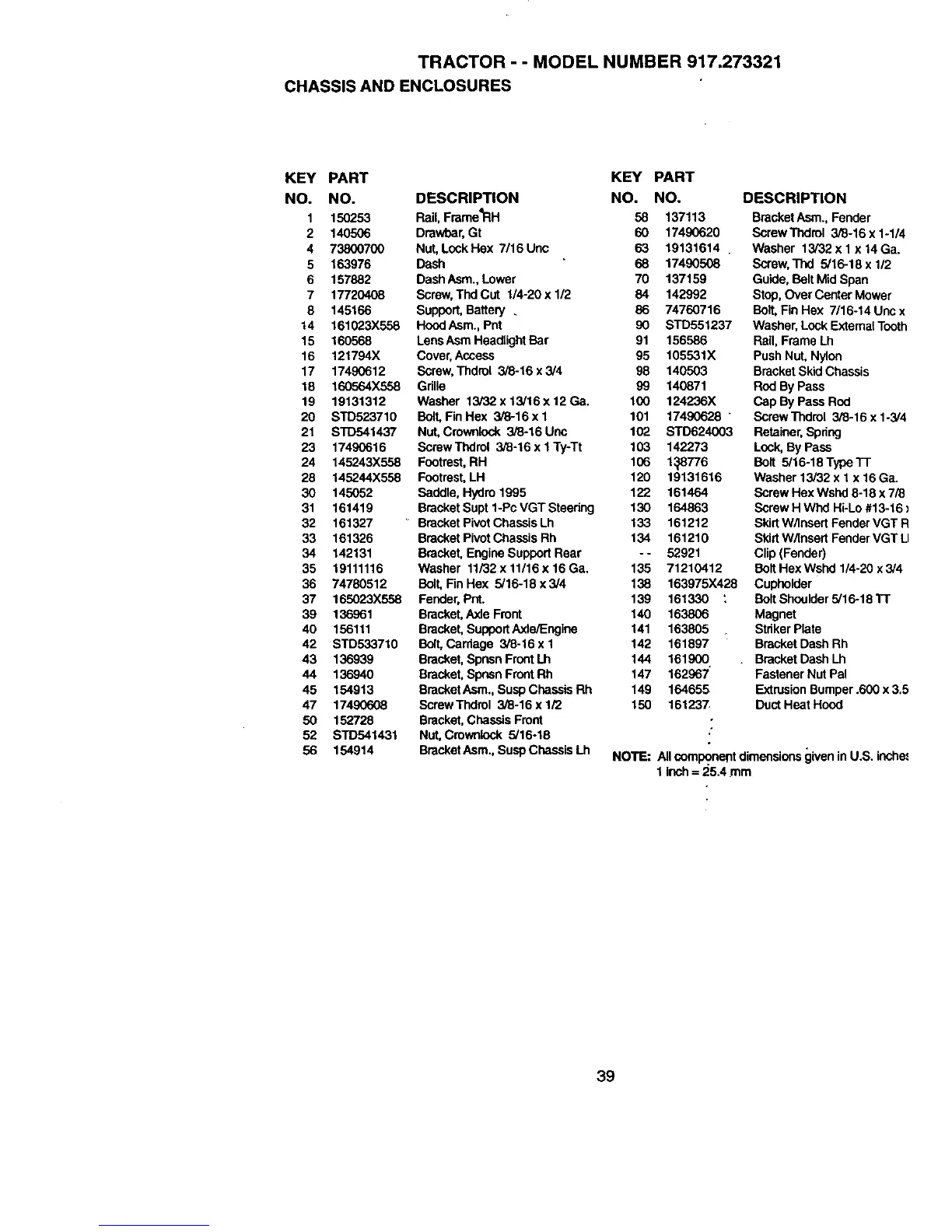

Craftsman 917.273321 - Page 39

TRACTOR - - MODEL NUMBER 917.273321
CHASSIS AND ENCLOSURES
KEY PART KEY
NO. NO. DESCRIPTION NO.
1 150253 Rail, Fmme*RH 58
2 140506 Drawbar,Gt 60
4 73800700 Nut,LockHex 7/16Unc 63
5 163976 Dash 68
6 157882 Dash Asro.,Lower 70
7 17720408 Screw,Thd Cut 1/4-20 x 1/2 84
8 145166 Support,Battery • 86
14 161023X558 HoodAsm., Pnt 90
15 160568 Lens AsroHeadlightBar 91
16 121794X Cover,Access 95
17 17490612 Screw,Thdrol 3/6-16x3/4 98
18 160564X558 Grille 99
19 19131312 Washer 13/32x13/16x12Ga. 100
20 STD523710 Bolt, FinHex 3/8-16 x I 101
21 STD541437 Nut, Crowntock 3/8-16 Unc 102
23 17490616 ScrewThdrol 3/8-16 x 1 Ty-Tt 103
24 145243X558 Footrest,RH 106
28 145244X558 Footrest,LH 120
30 145052 Saddle, Hydro1995 122
31 161419 Bracket Supt1-PcVGTSteering 130
32 161327 _ Bracket PivotChassis Lh 133
33 161326 Bracket PivotChassis Rh 134
34 142131 Bracket, EngineSupportRear - -
35 19111116 Washer 11/32x 11/16x 16Ga. 135
36 74780512 Bolt,Fin Hex 5/16-18 x 3/4 138
37 165023X558 Fender,Pnt. 139
39 136961 Bracket,Axle Front 140
40 156111 Bracket,SupportAxle/Engine 141
42 STD533710 Bolt,Carriage 3/8-16 x I 142
43 136939 Bracket,Spnsn Front Lh 144
44 136940 Bracket,Spnsn Front Rh 147
45 154913 BracketAsro.,SuspChassis Rh 149
47 17490608 ScrewThdrol 3/8-16xl/2 150
50 152728 Bracket,Chassis Front
52 STD541431 Nut, Crowntock 5/16-18
56 154914 BracketAsm., Susp Chassis Lh
PART
NO.
137113
17490620
19131614
17490508
137159
142992
74760716
STD551237
156586
105531X
140503
140871
124236X
17490628 "
STD624003
142273
1,1o-r-,,6
19131616
161464
164863
161212
161210
52921
71210412
163975X428
161330
163806
163805
161897
161900
162967"
164655
161237.
DESCRIPTION
BracketAsm., Fender
ScrewThdrol 3/8-16 x 1-1/4
Washer 13/32 x 1 x 14Ga.
Screw,Thd 5/16-18 x 1/2
Guide, Belt MidSpan
Stop, Over Center Mower
Bolt,Fin Hex 7/16-14 Unc x 1
Washer, Lock ExtemalTooth
Rail, Frame Lh
Push Nut, Nylon
BracketSkid Chassis
Rod By Pass
Cap By Pass ROd
Screw Thdrol 3/8-16 x 1-3/4
Retainer, Spring
Lock,By Pass
Bolt 5/16-18 Type T]-
Washer 13/32 x I x 16 Ga.
Screw Hex Wshd8-18 x 7/8
Screw H Whd Hi-Lo #13-16 x
SkirtW/Insert Fender VGT RI"
SkirtW/insert Fender VGT Lh
Clip (Fender)
Bolt Hex Wshd 1/4-20 x 3/4
Cupholder
BoltShoulder5/16-18 TT
Magnet
StrikerPlate
Bracket Dash Rh
Bracket Dash Lh
Fastener NUtPal
ExtrosionBumper.600 x 3.5(;
DuctHeat Hood
NOTE: All componentdimensionsgiven inU.S. inches
1 inch= _;5.4mm
39
