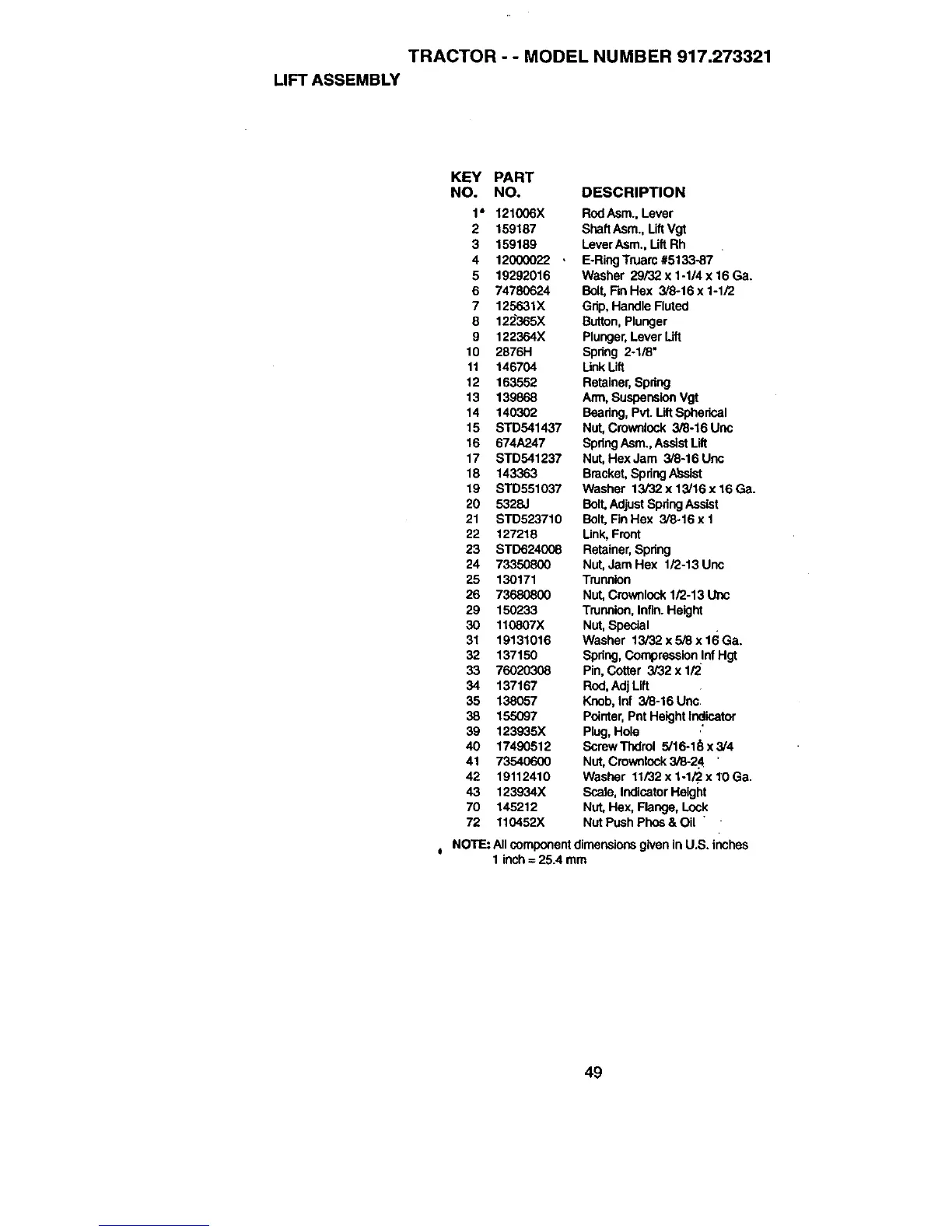

Craftsman 917.273321 - Page 49

TRACTOR - - MODEL NUMBER 917.273321
LIFT ASSEMBLY
KEY PART
NO. NO. DESCRIPTION
1" 121006X RodAsm., Lever
2 159187 ShaftAsm., Lift Vgt
3 159189 LeverAsm., Uft Rh
4 12000022 • E-RingTruarc#5133-87
5 19292016 Washer 29/32x1-1/4x16Ga.
6 74780624 Bolt,Fin Hex 3/8-16 x 1-1/2
7 125631X Grip,Handle Fluted
8 122"365X Button,Plunger
9 122364X Plunger,Lever Lift
10 2876H Spdng 2-1/8"
11 146704 Unk Lift
12 163552 Retainer,Spdng
13 139868 Arm,Suspension Vgt
14 140302 Beadng, Pvt. Lift Spherical
15 STD541437 Nut, Crowniock 3/8-16 Unc
16 674A247 SpdngAsm.,AssistLift
17 STD541237 Nut, Hex Jam 3/8-16 Unc
18 143363 Bracket,SpringA,_sslst
19 STD551037 Washer 13/32x13/16x16Ga.
20 5328J Bolt,AdjustSpdngAssist
21 STD523710 Bolt,FinHex 3/8o16x 1
22 127218 Link, Front
23 STD624008 Retainer,Spring
24 73350800 Nut, Jam Hex 1/2-13 Unc
25 130171 Trunnion
26 73680800 Nut, Cmwnlock 1/2-13 Uric
29 150233 Trunnion,Infin.Height
30 110807X Nut, Special
31 19131016 Washer 13/32x5/8x16Ga.
32 137150 Spdng,CompressionInfHgt
33 76020308 Pin, Cotter 3/32 x 1/2"
34 137167 Rod,AdjLift
35 138057 Knob,Inf 3/8-16 Uocl
38 155097 Pointer, PntHeight I_licator
39 123935X Plug,Hole
40 17490512 ScrewThdrol 5/16-11_x3/4
41 73540600 Nut, Crowntock 3/8-2.4. '
42 19112410 Washer 11/32 x 1-1/2 x 10 Ga.
43 1239'34X Scala, Indicator Height
70 145212 Nut, Hex, Flange, Lock
72 110452X Nut Push Phos & Oil
NOTE: Allcomponentdimensionsgiven In U.S. inches
I inch= 25.4 mm
