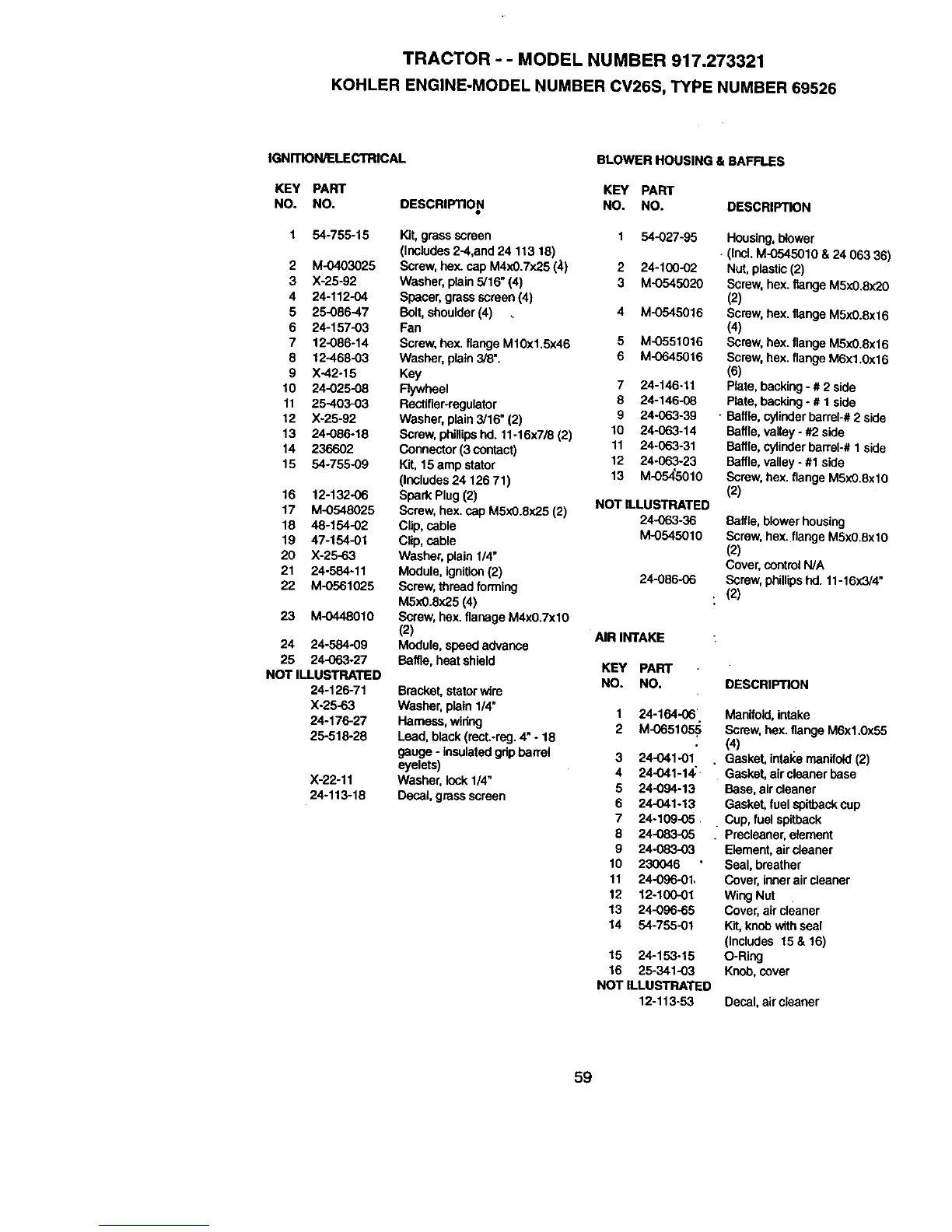

Craftsman 917.273321 - Page 59

TRACTOR - - MODEL NUMBER 917.273321
KOHLER ENGINE-MODEL NUMBER CV26S, TYPE NUMBER 69526
IGNITION/ELECTRICAL
KEY PART
NO. NO,
1 54-755-15
2 M-0403025
3 X-25-92
4 24-112-04
5 25-086-47
6 24-157-03
7 12-086-14
8 12-468-03
9 X-42-15
10 24-025-08
11 25-4O303
12 X-25-92
13 24-086-18
14 236602
15 54-755-09
16 12-132-06
17 M-0548025
18 48-154-02
19 47-154-01
20 X-25.63
21 24-584-11
22 M-0561025
23 M-0448010
24 24-584-09
25 24-063-27
NOT ILLUSTRATED
24-126-71
X-25.63
24-176-27
25-518-28
X-22-11
24-113-18
DESCRIPTION
Kit,grass screen
(Includes2-4,and 24 113 18)
Screw,hex. cap M4x0.7x25 (z_)
Washer, plain5/16" (4)
Spacer,grass screen(4)
Bolt,shoulder(4)
Fan
Screw,hex, flangeM10x1.5x46
Washer, plain 3/8".
Key
Flywheel
Rectifier-regulator
Washer, plain 3/16" (2)
Screw, phillipshal.11-16x7/8 (2)
Connector(3 contact)
Kit, 15 amp stator
(Includes24 126 71)
Spark Plug (2)
Screw, hex.cap M5x0.8x25 (2)
Clip, cable
Clip, cable
Washer, plain 1/4"
Module, ignition(2)
Screw,thread forming
M5xO.ex25(4)
Screw, hex. flanage M4x0.7xl0
(2)
Module, speed advance
Baffle,heat shield
Bracket,statorwire
Washer, plain 1/4"
Harness, widng
Lead, black (rect.-rsg.4" - 18
gauge - insulatedgdpbarrel
eyelets)
Washer, lock1/4"
Decal, grass screen
BLOWER HOUSING & BAFFLES
KEY PART
NO. NO. DESCRIPTION
1 54-027-95
2 24-100-02
3 M-0545020
4 M-0545016
5 M-055t016
6 M-0645016
7 24-146-11
8 24-146-08
9 24-063-39
10 24-063-14
11 24-063-31
12 24-063-23
13 M-054_5010
NOT ILLUSTRATED
24-063-36
M-0545010
24-086-06
AIR INTAKE
Housing,blower
(Incl.M-0545010 & 24 063 36)
Nut, plastic(2)
Screw,hex.flangeM5x0.8x26
(2)
Screw,hex.flangeM5xO.8xt6
(4)
Screw,hex.flangeM5x0.8xt6
Screw,hex.flange M6x1.0x16
(6)
Plate, backing- # 2 side
Plate, backing- # 1 side
Baffle,cylinderbarrel-# 2 side
Baffle,valley- #2 side
Baffle,cylinderbarrel-# 1 side
Baffle,valley - #1 side
Screw,hex. flangeM5xO.8xtO
(2)
Baffle,blowerhousing
Screw,hex..flangeMSx0.8xl0
(2)
Cover,controlN/A
Screw,phillipshd. 11-16x3/4"
(2)
KEY PART
NO. NO,
1 24-164-06'
2 M"_5105_
3 24-O41-01
4 24-O41-14_
5 24-094-13
6 24-041-13
7 24-109-05
8 24-083-05
9 24-083-03
10 230046
11 24-096-01,
12 12-100-0I
13 24-096-66
14 54-755-01
15 24-153-15
16 25-341-03
NOT ILLUSTRATED
12-113-53
DESCRIPTION
Manifold,intake
Screw,hex. flangeM6x1.0x55
(4)
Gasket, intal_emanifold(2)
Gasket, aircleaner base
Base, aircleaner
Gasket, fuel spitbackcop
Cup, fuel spitback
Precleaner,element
Element, aircleaner
Seal, breather
Cover, inner aircleaner
Wing Nut
Cover,air cleaner
Kit, knobwith seal
(Includes 15& 16)
O-Ring
Knob,cover
Decal, air cleaner
59
