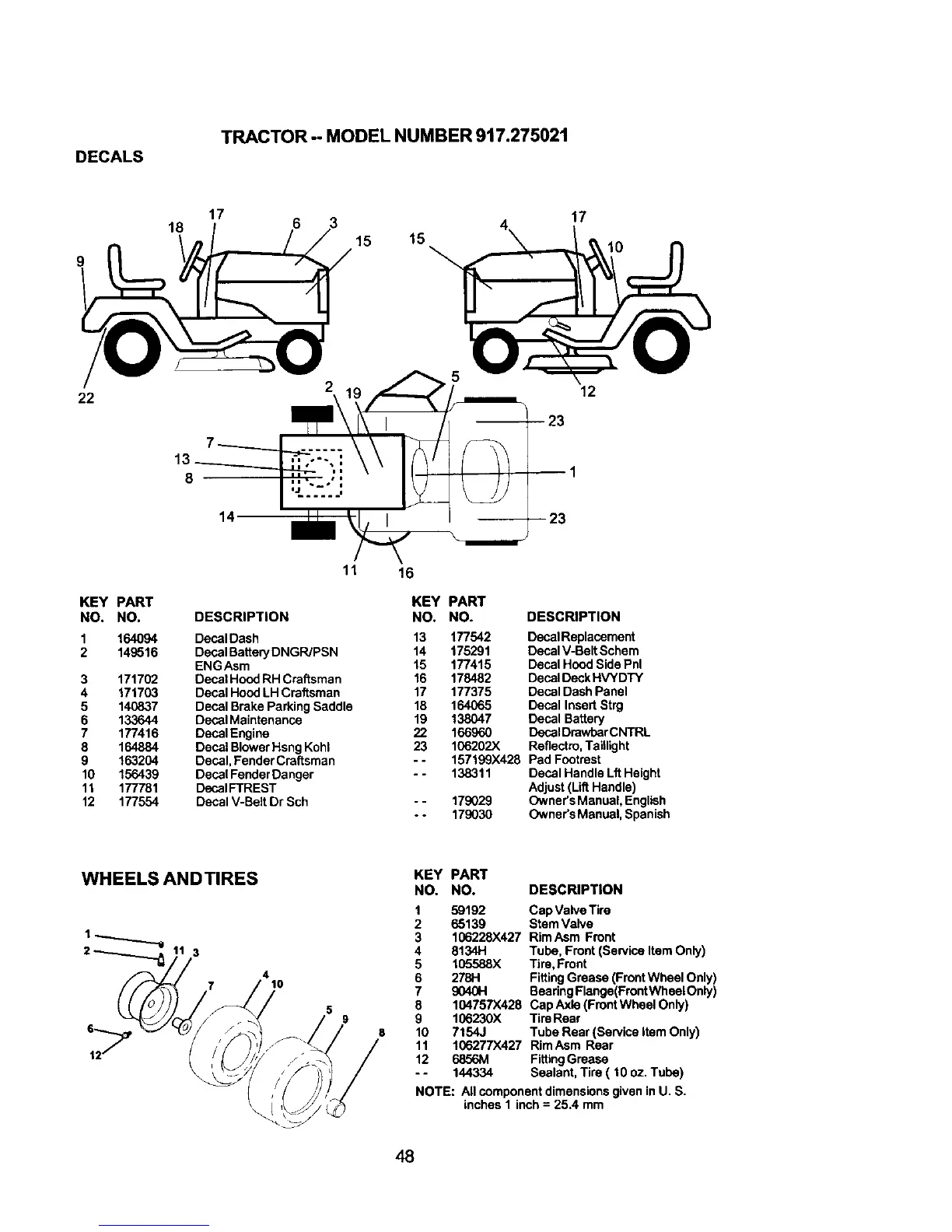

Craftsman 917.275021 - Tractor Model Number 917.275021 Decals

DECALS
TRACTOR - MODEL NUMBER 917.275021
9
18
17
6 3
15 15
17
10
22
5
-- --23
1
----23
12
11 16
KEY PART KEY PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION
1 164094 DecalDash 13 177542 DecalReplacament
2 149516 DecalBatteryDNGR/PSN 14 175291 DecalV-BeltSchem
ENGAsm 15 177415 Decal HoodSidePnl
3 171702 DecalHoodRH Craftsman 16 178482 DecalDeckHVYDTY
4 171703 Decal HoodLH Craftsman 17 177375 Decal DashPanel
5 140837 Decal Brake ParkingSaddle 18 164065 Decal InsertStrg
6 133644 DecalMaintenance 19 138047 Decal Battery
7 177416 DecalEngine 22 166960 D6calDrawberCNTRL
8 164884 Decal BlowerHsngKohl 23 106202X Reflectro,Taillight
9 163204 Decal, FenderCraftsman -- 157199X428 Pad Footrest
10 156439 Decal FenderDanger -- 138311 DecalHandle LftHeight
11 177781 DecaIFTREST Adjust(LiftHandle)
12 177554 DecalV-Belt Dr Sch - - 179029 Owner'sManual,English
- - 179030 Owner's Manual,Spanish
WHEELS ANDTIRES
4
7 10
KEY PART
NO. NO. DESCRIPTION
1 59192 CapValveTire
2 65139 StemValve
3 106228X427 RimAsm Front
4 8134H Tube, Front(ServiceItem Only)
5 105588X Tire,Front
6 2781-1 FittingGrease (FrontWheel Only)
7 904011 BeeringFlange(FrontWheelOnly)
8 104757X428 Cap Axle(FrontWheelOnly)
9 106230X TireRear
10 7154J Tube Rear(ServiceItem Only)
11 106277X427 RimAsm Rear
12 6856M FittingGrease
- - 144334 Sealant,Tire ( 10 oz.Tube)
NOTE: All component dimensions given in U. S.
inches 1 inch = 25.4 mm
48
