Craftsman 917.297021 - Mainframe, Left Side

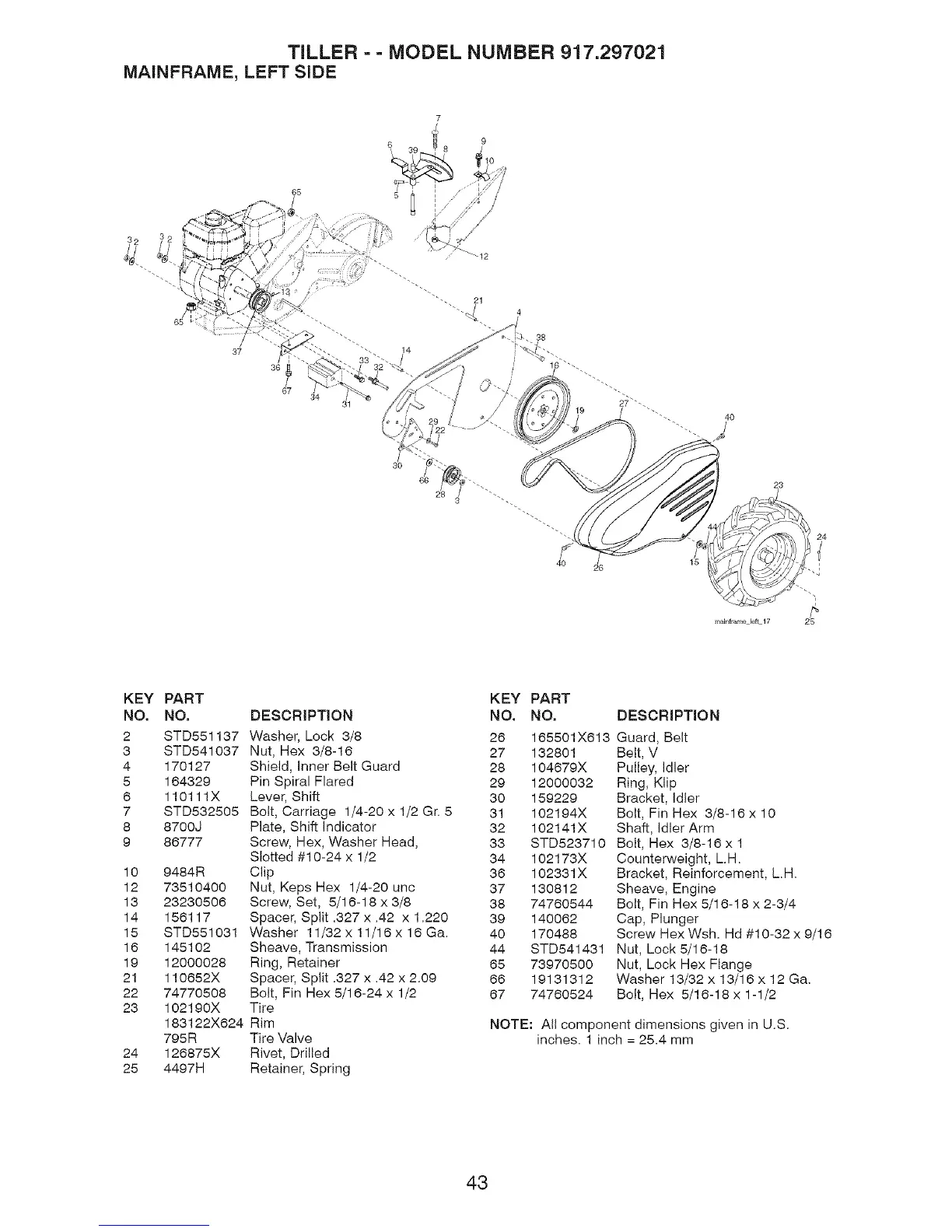

TILLER == MODEL NUMBER 917.297021
MAINFRAME, LEFT SIDE
37
67
38
14
26
23
mainframe left 17
24
25
KEY
NO.
2
3
4
5
6
7
8
9
10
12
13
14
15
16
19
21
22
23
24
25
PART
NO.
STD551137
STD541037
170127
164329
110111X
STD532505
8700J
86777
9484R
73510400
23230506
156117
STD551031
145102
12000028
110652X
74770508
102190X
183122X624
795R
126875X
4497H
DESCRIPTION
Washer, Lock 3/8
Nut, Hex 3/8-16
Shield, Inner Belt Guard
Pin Spiral Flared
Lever, Shift
Bolt, Carriage 1/4-20 x 1/2 Gr. 5
Plate, Shift Indicator
Screw, Hex, Washer Head,
Slotted #10-24 x 1/2
Clip
Nut, Keps Hex 1/4-20 unc
Screw, Set, 5/16-18 x 3/8
Spacer, Split .327 x .42 x 1.220
Washer 11/32x11/16x16Ga.
Sheave, Transmission
Ring, Retainer
Spacer, Split .327 x .42 x 2.09
Bolt, Fin Hex 5/16-24 x 1/2
Tire
Rim
Tire Valve
Rivet, Drilled
Retainer, Spring
KEY PART
NO. NO. DESCRIPTION
26 165501X613 Guard, Belt
27 132801 Belt, V
28 104679X Pulley, Idler
29 12000032 Ring, Klip
30 159229 Bracket, Idler
31 102194X Bolt, Fin Hex 3/8-16 x 10
32 102141X Shaft, Idler Arm
33 STD523710 Bolt, Hex 3/8-16x 1
34 102173X Counterweight, LH.
36 102331X Bracket, Reinforcement, LH.
37 130812 Sheave, Engine
38 74760544 Bolt, Fin Hex 5/16-18 x 2-3/4
39 140062 Cap, Plunger
40 170488 Screw Hex Wsh. Hd #10-32 x 9/16
44 STD541431 Nut, Lock 5/16-18
65 73970500 Nut, Lock Hex Flange
66 19131312 Washer 13/32 x 13/16 x 12 Ga.
67 74760524 Bolt, Hex 5/16-18 x 1-1/2
NOTE: All component dimensions given in U.S.
inches. 1 inch = 25.4 mm
43
