Craftsman 917.297021 - Tine Shield

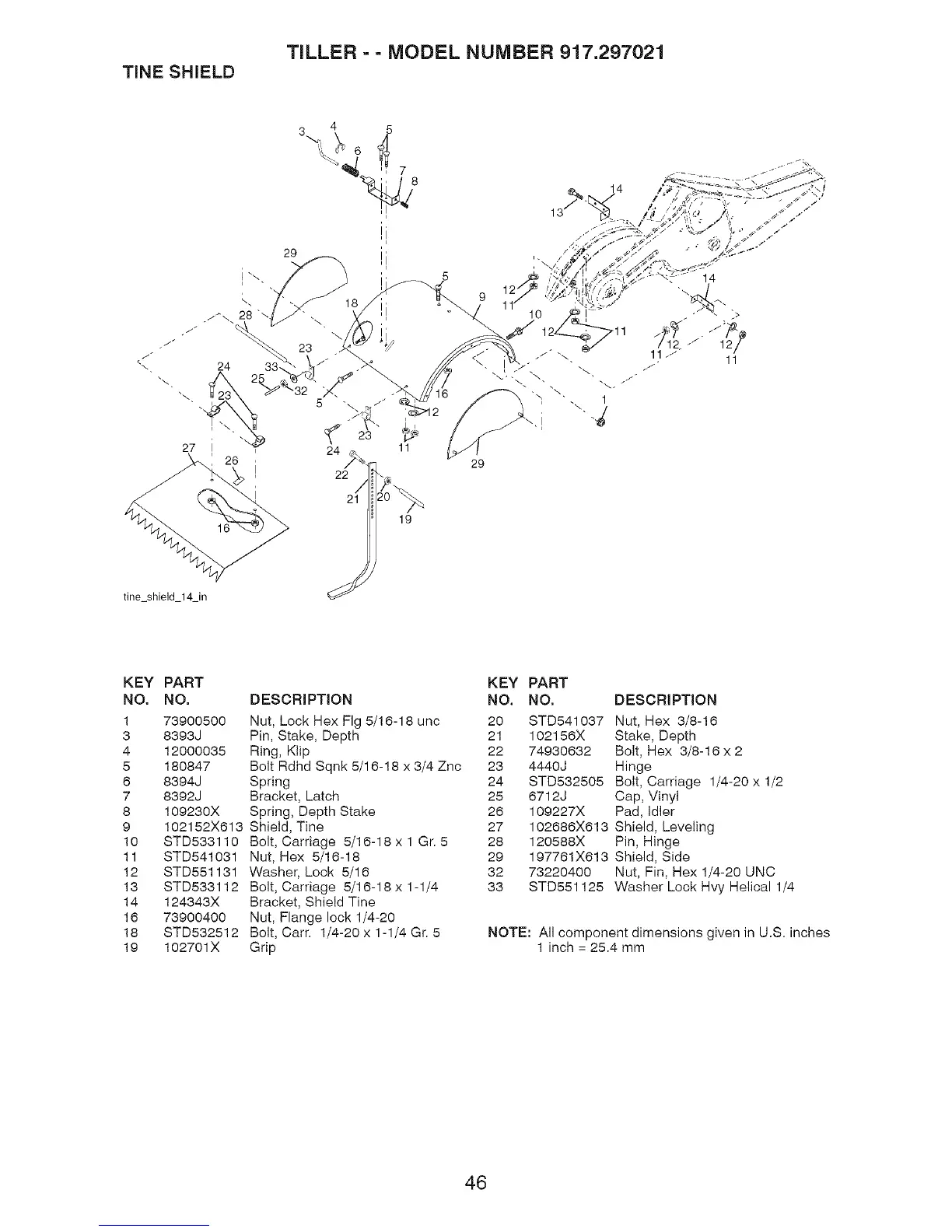

TINE SHIELD
TILLER - - MODEL NUMBER 917.297021
29
19
29
14
@
2 - 12/
11../ 11
/
tine shield 14 in
S
KEY PART
NO. NO, DESCRIPTION
1 73900500 Nut, Lock Hex Fig 5/16-18 unc
3 8393J Pin, Stake, Depth
4 12000035 Ring, Klip
5 180847 Bolt Rdhd Sqnk 5/16-18 x 3/4 Znc
6 8394J Spring
7 8392J Bracket, Latch
8 109230X Spring, Depth Stake
9 102152X613 Shield, Tine
10 STD533110 Bolt, Carriage 5/16-18xl Gr. 5
11 STD541031 Nut, Hex 5/16-18
12 STD551131 Washer, Lock 5/16
13 STD533112 Bolt, Carriage 5/16-18x 1-1/4
14 124343X Bracket, Shield Tine
16 73900400 Nut, Flange lock 1/4-20
18 STD532512 Bolt, Cam 1/4-20x1-1/4Gr. 5
19 102701X Grip
KEY PART
NO. NO, DESCRIPTION
20 STD541037 Nut, Hex 3/8-16
21 102156X Stake, Depth
22 74930632 Bolt, Hex 3/8-16 x 2
23 4440J Hinge
24 STD532505 Bolt, Carriage 1/4-20 x 1/2
25 6712J Cap, Vinyl
26 109227X Pad, Idler
27 102686X613 Shield, Leveling
28 120588X Pin, Hinge
29 197761X613 Shield, Side
32 73220400 Nut, Fin, Hex 1/4-20 UNC
33 STD551125 Washer Lock Hvy Helical 1/4
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
46
