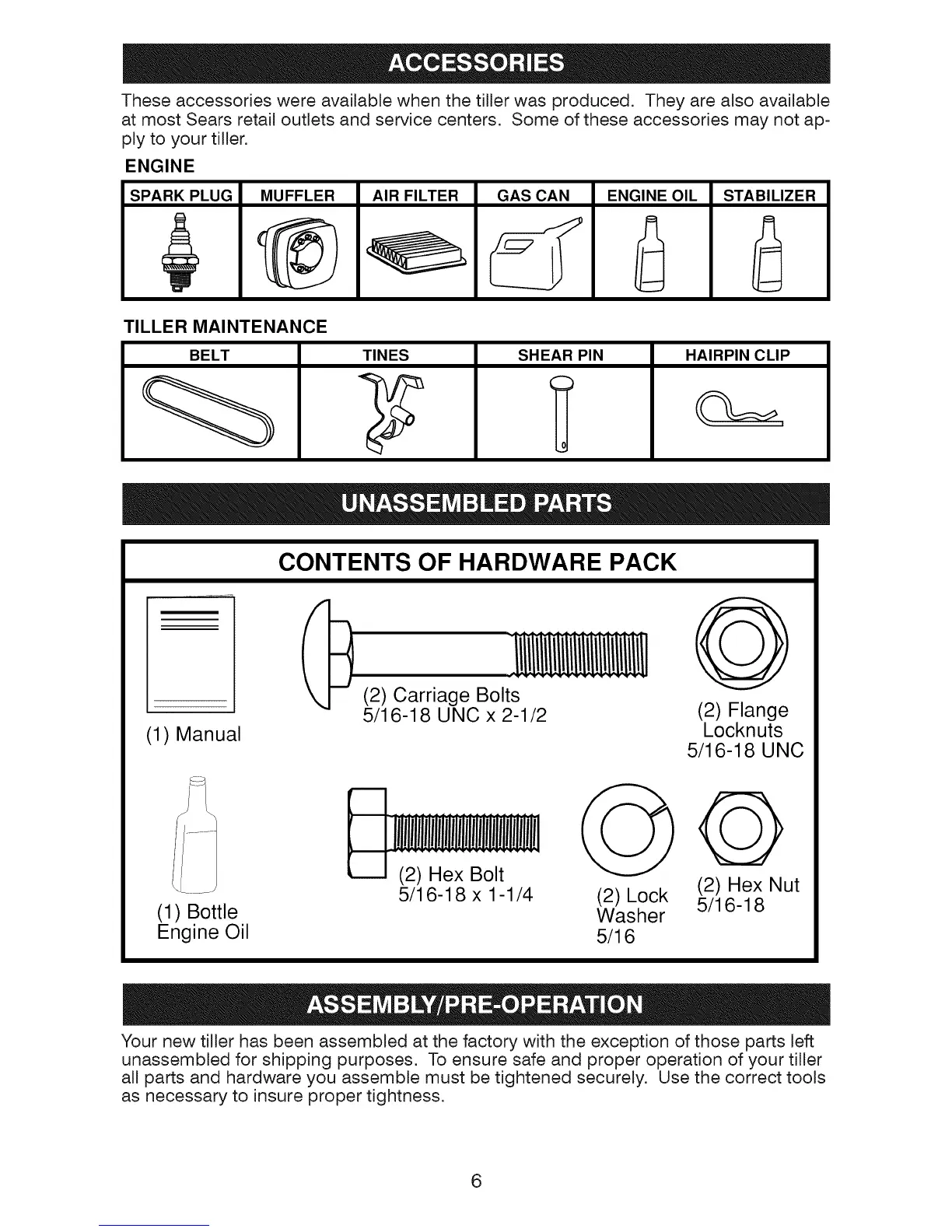

These accessories were available when the tiller was produced. They are also available
at most Sears retail outlets and service centers. Some of these accessories may not ap-
ply to your tiller.
ENGINE
SPARK PLUG MUFFLER AIR FILTER GAS CAN ENGINE OIL STABILIZER
TILLER MAINTENANCE
BELT TINES SHEAR PIN
O
HAIRPIN CLIP
(1) Manual
(1) Bottle
Engine Oil
CONTENTS OF HARDWARE PACK
(_(2) Carriage Bolt_ (_
5/16-18 UNC x 2-1/2 (2) Flange
Locknuts
5/16-18 UNC
(2) Hex Bolt
5/16-18 x 1-1/4
(2) Hex Nut
(2) Lock 5/16-18
Washer
5/16
Your new tiller has been assembled at the factory with the exception of those parts left
unassembled for shipping purposes. To ensure safe and proper operation of your tiller
all parts and hardware you assemble must be tightened securely. Use the correct tools
as necessary to insure proper tightness.
6
