Craftsman 917.298021 - Tine Assembly

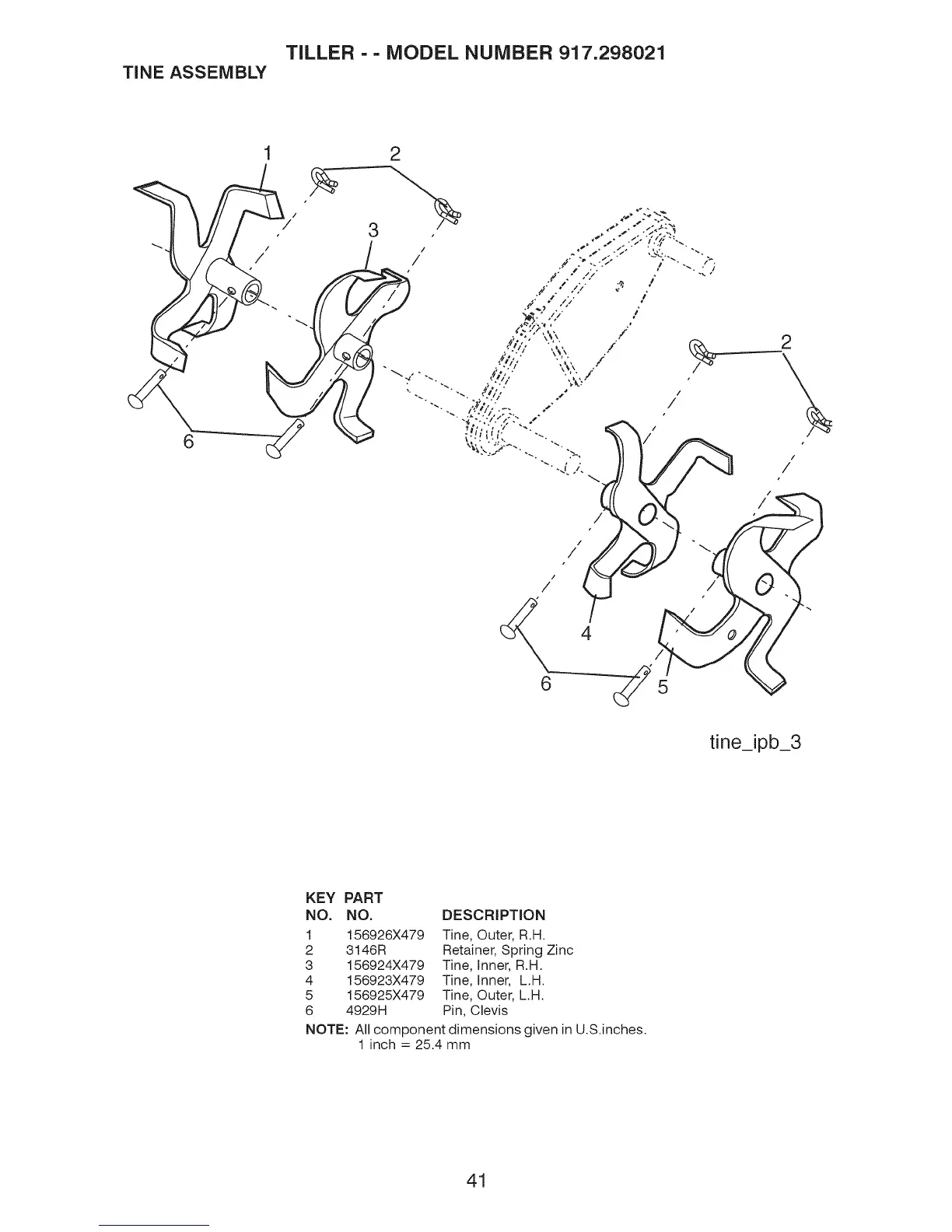

TILLER - - MODEL NUMBER 917.298021
TINE ASSEMBLY
6
tine_ipb_3
KEY PART
NO. NO. DESCRIPTION
1 156926X479 Tine, Outer, R.H.
2 3146R Retainer, Spring Zinc
3 156924X479 Tine, Inner, R.H.
4 156923X479 Tine, Inner, L.H.
5 156925X479 Tine, Outer, L.H.
6 4929H Pin, Clevis
NOTE: All component dimensions given in U.S.inches.
1 inch = 25.4 mm
41
