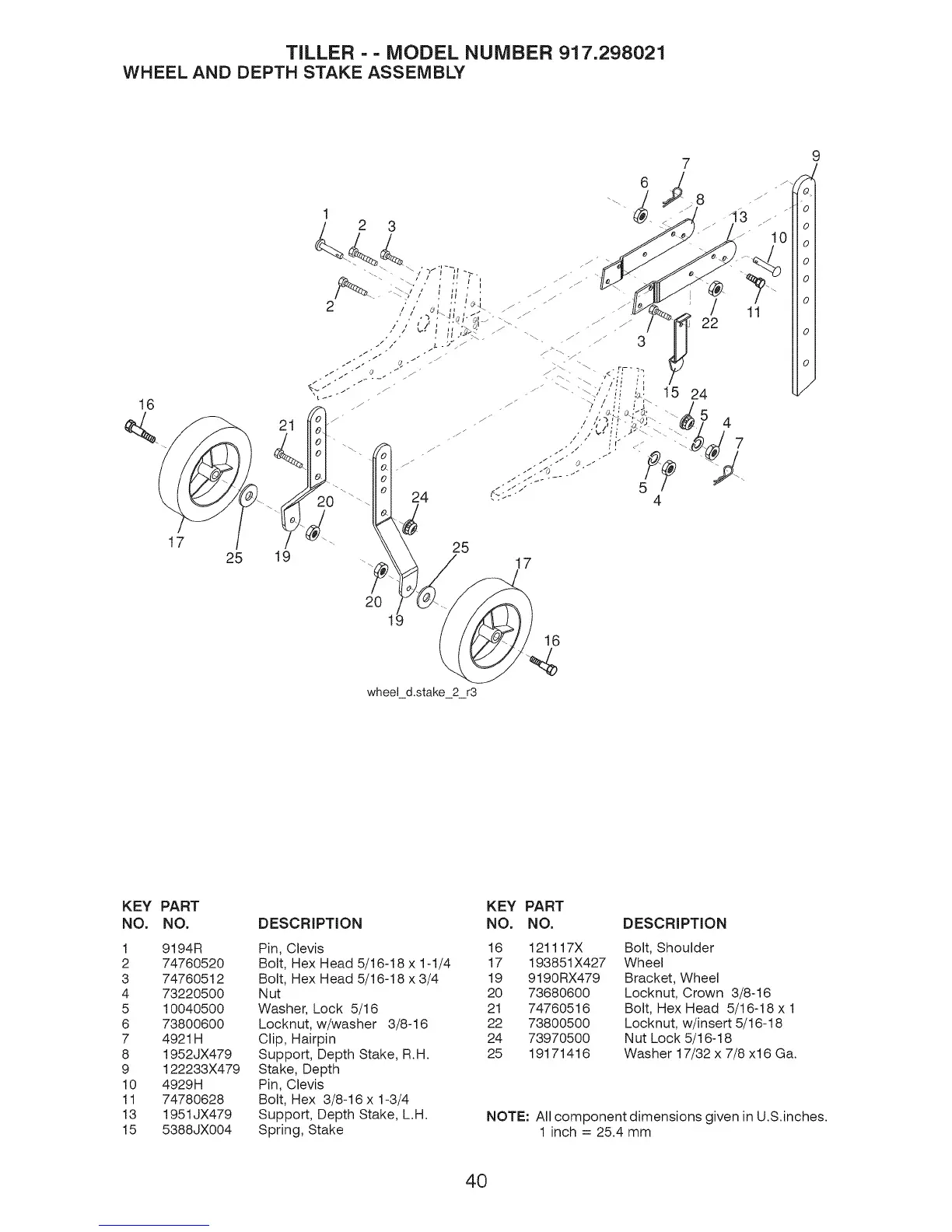

TILLER - - MODEL NUMBER 917.298021
WHEEL AND DEPTH STAKE ASSEMBLY
16
7
25
25
17
11
9
0
0
0
0
0
0
0
/
2O
i!
16
wheehd.stake 2 r3
KEY
NO.
1
2
3
4
5
6
7
8
9
10
11
13
15
PART
NO.
9194R
74760520
74760512
73220500
10040500
73800600
4921H
1952JX479
122233X479
4929H
74780628
1951JX479
5388JX004
DESCRIPTION
Pin, Clevis
Bolt, Hex Head 5/16-18 x 1-1/4
Bolt, Hex Head 5/16-18 x 3/4
Nut
Washer, Lock 5/16
Locknut, w/washer 3/8-16
Clip, Hairpin
Support, Depth Stake, R.H.
Stake, Depth
Pin, Clevis
Bolt, Hex 3/8-16 x 1-3/4
Support, Depth Stake, L.H.
Spring, Stake
KEY PART
NO. NO. DESCRiPTiON
16 121117X Bolt, Shoulder
17 193851X427 Wheel
19 9190RX479 Bracket, Wheel
20 73680600 Locknut, Crown 3/8-16
21 74760516 Bolt, Hex Head 5/16-18 x 1
22 73800500 Locknut, w/insert 5/16-18
24 73970500 Nut Lock 5/16-18
25 19171416 Washer 17/32 x 7/8 x16 Ga.
NOTE: All component dimensions given in U.S.inches.
1 inch = 25.4 mm
