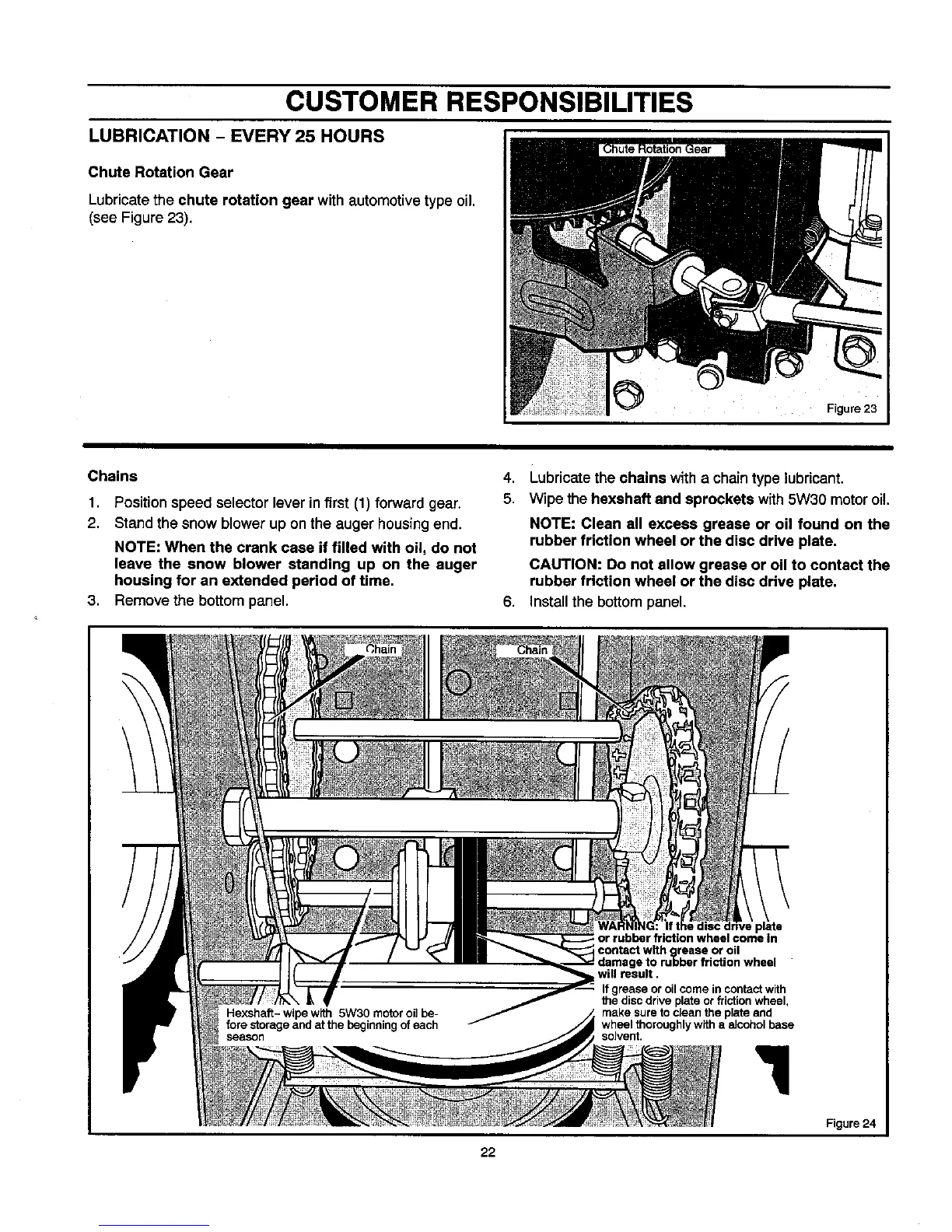

CUSTOMER RESPONSIBILITIES
LUBRICATION - EVERY 25 HOURS
Chute Rotation Gear
Lubricatethe chute rotation gear with automotivetype oil,
(see Figure 23).
Figure 22
Chains
1. Position speed selector lever infirst (1) forward gear.
2. Stand the snow blower up on the auger housing end.
NOTE: When the crank case if filled with oil, do not
leave the snow blower standing up on the auger
housing for an extended period of time,
3. Remove the bottom panel.
4. Lubricate the chains with a chain type lubricant.
5. Wipe the hexshaft and sprockets with5W30 motoroil,
NOTE: Clean all excess grease or oil found on the
rubber friction wheel or the disc drive plate.
CAUTION: Do not allow grease or oil to contact the
rubber friction wheel or the disc drive plate,
6. Installthe bottom panel,
t in
contact with grease or oil
ge to rubber friction wheel
will result,
If grease or oilcome in contact with
the disc drive plate orfrictionwheel,
make sure to cJeanthe plate and
wheel thoroughlywith a alcohol base
solvent.
"!
Figure 24
22
