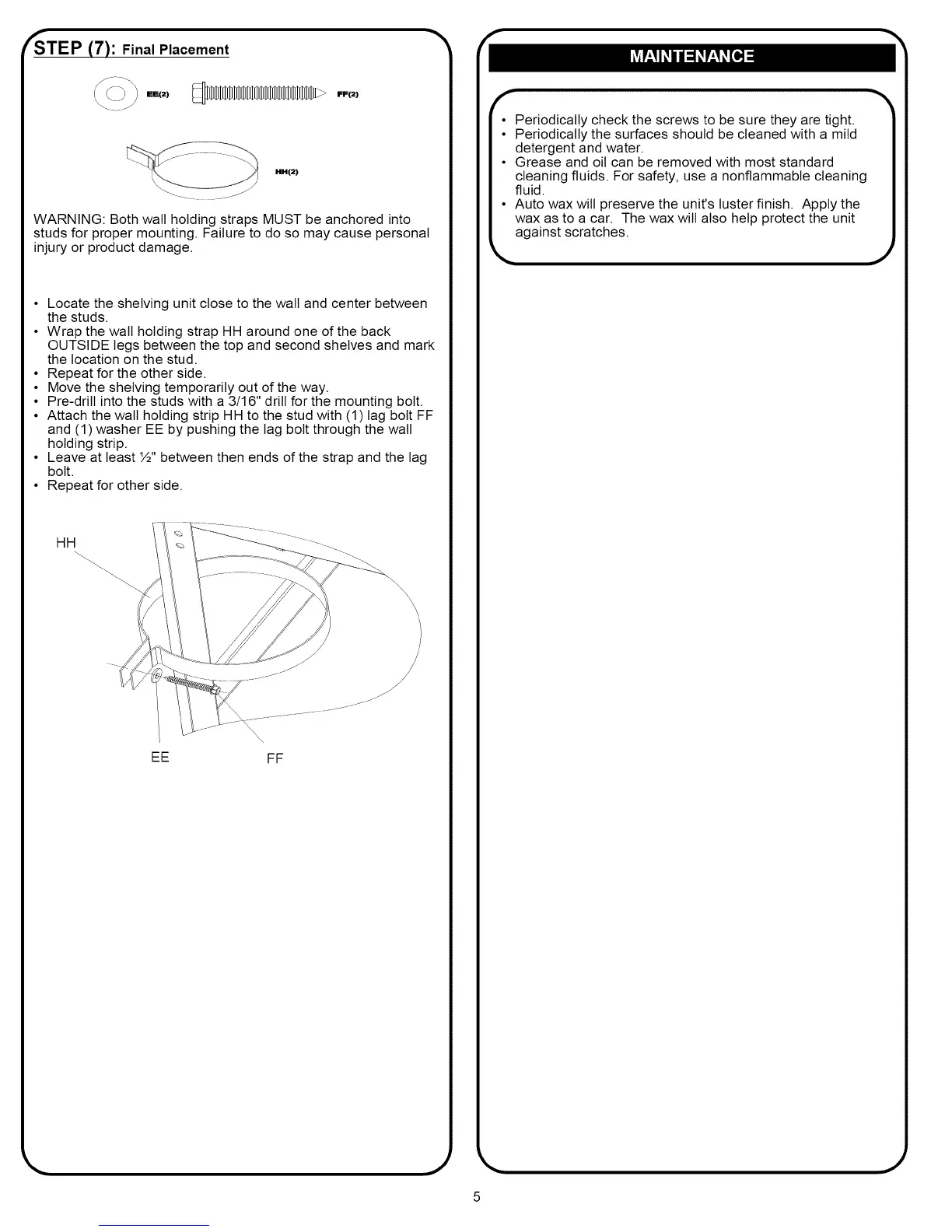

(STEP (7): Final Placement
EE(2) _]_ FF(2)
HH(2)
WARNING: Both walt holding straps MUST be anchored into
studs for proper mounting. Failure to do so may cause personal
injury or product damage.
• Locate the shelving unit close to the walt and center between
the studs.
• Wrap the walt holding strap HH around one of the back
OUTSIDE legs between the top and second shelves and mark
the location on the stud.
• Repeat for the other side.
• Move the shelving temporarily out of the way.
• Pre-dritt into the studs with a 3/16" drill for the mounting bolt.
• Attach the walt holding strip HH to the stud with (1) lag bolt FF
and (1) washer EE by pushing the lag bolt through the wall
holding strip.
• Leave at least ½" between then ends of the strap and the lag
bolt.
• Repeat for other side.
HH
EE FF
f
• Periodically check the screws to be sure they are tight.
• Periodically the surfaces should be cleaned with a mild
detergent and water.
• Grease and oil can be removed with most standard
cleaning fluids. For safety, use a nonflammable cleaning
fluid.
• Auto wax wilt preserve the unit's luster finish. Apply the
wax as to a car. The wax will also help protect the unit
against scratches.
J
