6

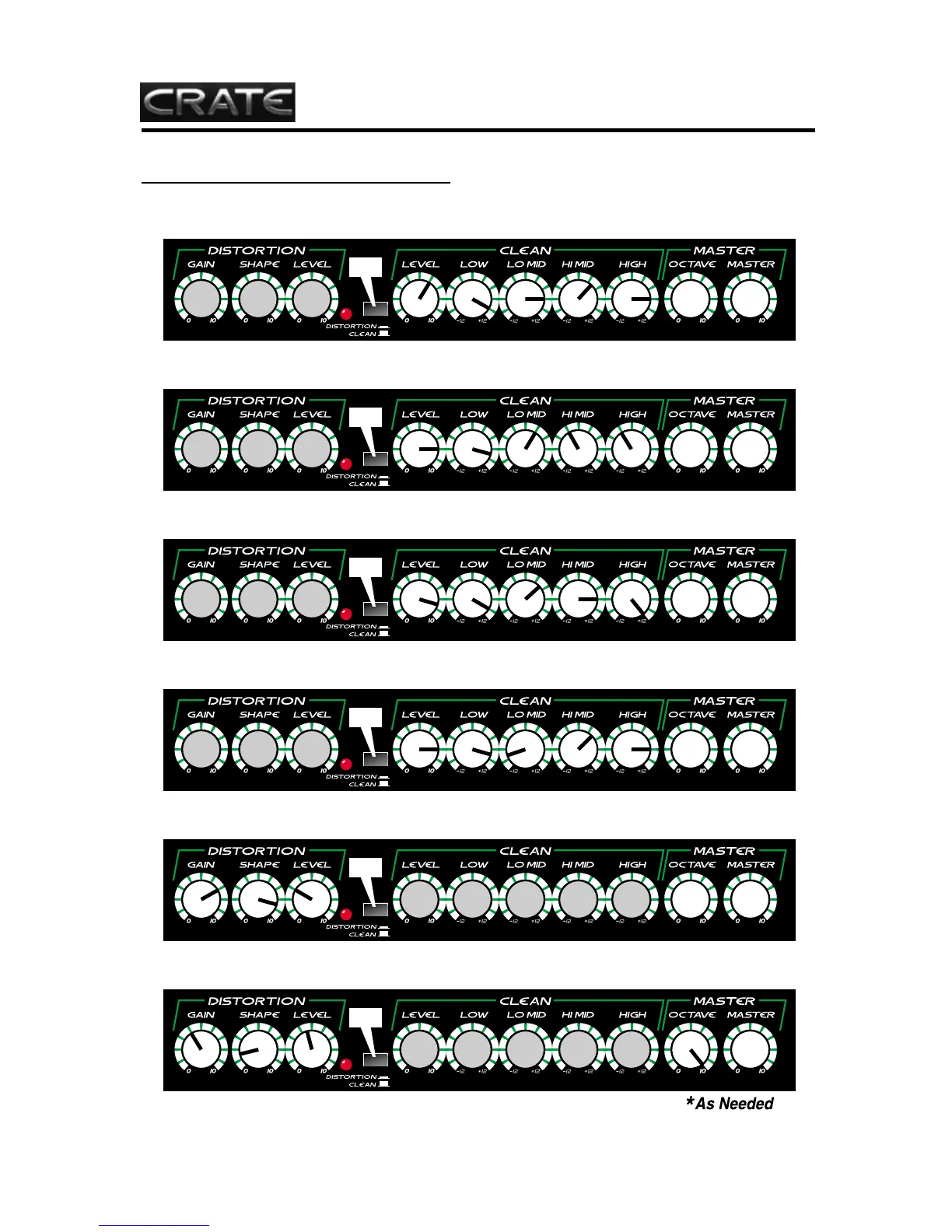

Suggested Starting Settings:
BT25/BT50
Bass Amplifier
Rock:
OUT
Jazz:
OUT
Country:
OUT
Funk:
OUT
Solo Fuzz:
IN
Super Fat Fuzz:
IN
**
**
**
**
**
*

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Crate BT50 and is the answer not in the manual?

Crate BT50 Specifications

BT25

Power IconPower
output power rating25W RMS 2% THD, 4Ω, 120 VAC
input power requirements120 VAC, 60Hz, 45VA
rms rating30 watts
Audio Performance IconAudio Performance
gain distortion channel100dB
clean channel60dB
cd inputs33dB
Tone Range IconTone Range
low21dB @ 50Hz
lo mid23dB @ 150Hz
hi mid18dB @ 1kHz
high34dB @ 10kHz
Speaker IconSpeaker
internal speaker size10”
typeCrate Custom
magnet30 oz.
voice coil1”
Weight and Dimensions IconWeight and Dimensions
impedance4 ohms
size18” H x 18” W x 12-1/2” D
weight37 lbs

BT50

Power IconPower
output power rating50W RMS 2% THD, 4Ω, 120 VAC
input power requirements120 VAC, 60Hz, 85VA
rms rating50 watts
Audio Performance IconAudio Performance
gain distortion channel104dB
clean channel63dB
cd inputs37dB
Tone Range IconTone Range
low21dB @ 50Hz
lo mid23dB @ 150Hz
hi mid18dB @ 1kHz
high34dB @ 10kHz
Speaker IconSpeaker
internal speaker size12”
typeCrate Custom
magnet30 oz.
voice coil1.5”
Weight and Dimensions IconWeight and Dimensions
impedance8 ohms
size21” H x 18” W x 14” D
weight46 lbs
