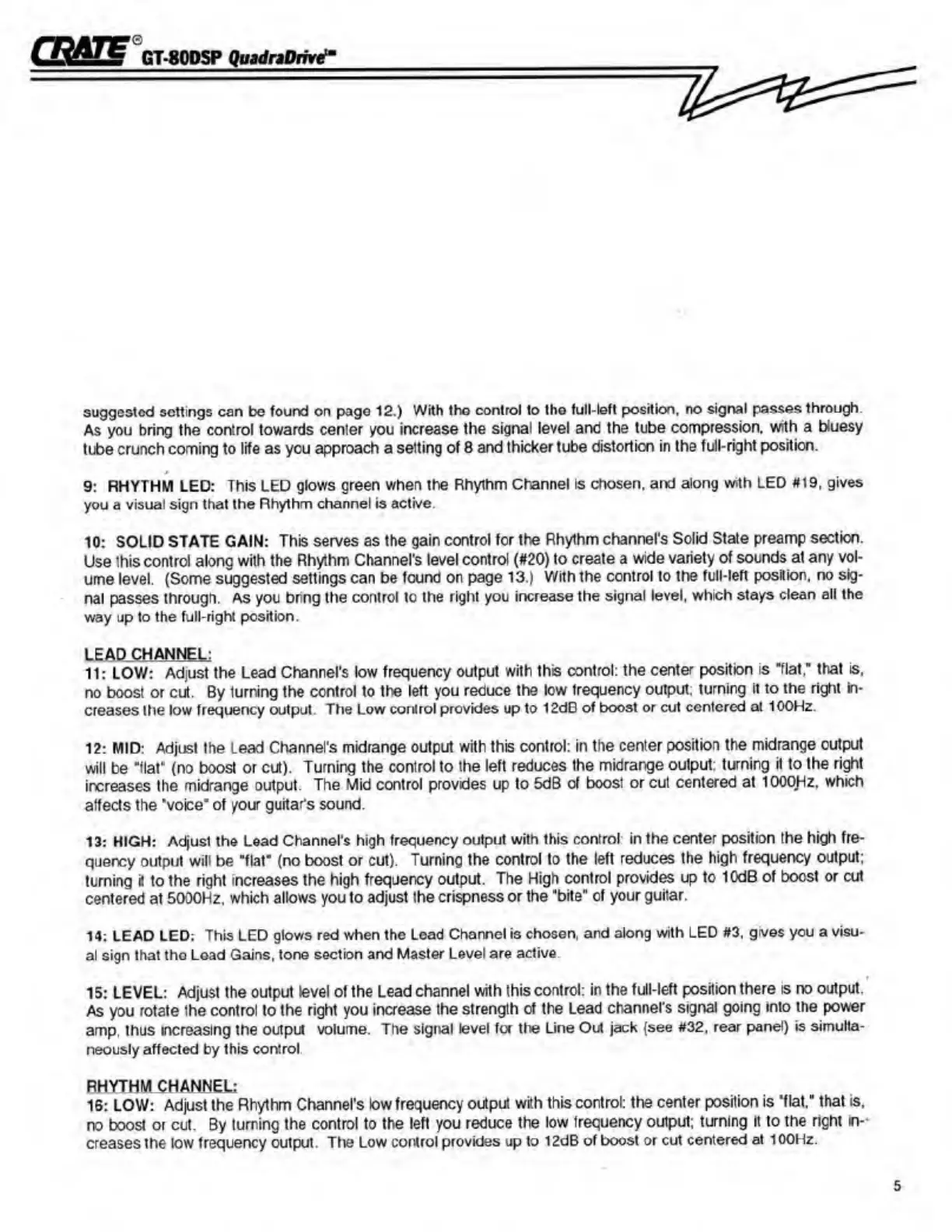

Page #5 background imageLoading...
Page #5 background image
suggested
settings
can
be
found
on
page
12.)
With
tho
control
to
the
full-left
position,
no
signal
passes
through
As
you
bring
the
control
towards
center
you
increase
the
signal
level
and
the
tube
compression,
with
a
bluesy
tube
crunch
coming
to
life
as
you
approach
a
setting
of
8
and
thicker
tube
distortion
in
the
full-right
position.
9:
RHYTHM
LED:
This
LED
glows
green
when
the
Rhylhm
Channel
is
chosen.
and
along
wth
LED
#19,
gives
you
a
visual
sign
that
the
Rhythm
channel
is
active.
10:
SOLID
STATE
GAIN:
This
serves
as
the
gain
control
for
the
Rhythm
channel's
Solid
State
preamp
section.
Use
this
control
along
with
the
Rhythm
Channel's
level
control
(#20)
to
create
a
wide
variety
of
sounds
at
any
vol¬
ume
level.
(Some
suggested
settings
can
be
found
on
page
13.)
With
the
control
to
the
full-left
position,
no
sig¬
nal
passes
through.
As
you
bring
the
control
to
the
right
you
increase
the
signal
level,
which
stays
clean
all
the
way
up
to
the
full-right
position.
LEAP_
CHANNE
L;
11:
LOW:
Adjust
the
Lead
Channel's
low
frequency
output
with
this
control:
the
center
position
is
"flat:
that
is.
no
boost
or
cut.
By
turning
the
control
to
the
left
you
reduce
the
low
trequency
output;
turning
it
to
the
right
in¬
creases
the
low
trequency
output.
The
Low
control
provides
up
to
12dG
of
boost
or
cut
centered
at
100Hz.
12:
MID:
Adjust
the
Lead
Channel's
midrange
output
with
this
control:
in
the
center
position
the
midrange
output
will
be
"flat"
(no
boost
or
cut).
Turning
the
control
to
the
left
reduces
the
midrange
output;
turning
it
to
the
right
increases
the
midrange
output.
The
Mid
control
provides
up
to
5dB
of
boost
or
cut
centered
at
1000Hz,
which
atfects
the
‘voice-
ot
your
guitar's
sound.
13:
HIGH:
Adjust
the
Lead
Channel’s
high
frequency
output
with
this
control
in
the
center
position
the
high
fre¬
quency
output
will
be
"flat"
(no
boost
or
cut).
Turning
the
control
to
the
left
reduces
the
high
frequency
output;
turning
it
to
the
right
increases
the
high
frequency
output.
The
High
control
provides
up
to
ICdB
of
boost
or
cut
centered
at
5000Hz,
which
allows
you
to
adjust
the
crispness
or
the
"bite"
of
your
guitar.
14:
LEAD
LED:
This
LED
glows
red
when
the
Lead
Channel
is
chosen,
and
along
with
LED
#3,
gives
you
a
visu¬
al
sign
that
tho
Load
Gains,
tone
section
and
Master
Level
are
active
15:
LEVEL:
Adjust
the
output
level
of
the
Lead
channel
with
this
control:
in
the
full-left
position
there
is
no
output.
As
you
rotate
the
control
to
the
right
you
increase
the
strength
of
the
Lead
channel's
signal
going
into
the
power
amp,
thus
increasing
the
output
volume.
The
signal
level
to*
the
Line
Out
jack
(see
#32.
rear
panel)
is
simulta¬
neously
affected
by
this
control
RHYTHM
CHANNEL;
16:
LOW:
Adjust
the
Rhythm
Channel's
low
frequency
output
with
this
control:
the
center
position
is
’flat."
that
is.
no
boost
or
cut.
By
turning
the
control
to
the
left
you
reduce
the
low
frequency
output;
turning
it
to
the
right
m--
creases
the
low
trequency
output.
The
Low
control
provides
up
to
12dB
of
boost
or
cut
centered
at
100Hz.
5
