5
15. AC Line Cord (not shown): The
grounded power cord should only be
plugged into a grounded power outlet
that meets all applicable electrical codes
and is compatible with the voltage,
power, and frequency requirements stat-
ed on the rear panel. Do not attempt to
defeat the safety ground connection.
16. Footswitch: Use this jack to connect
the supplied two-button footswitch for
remote control of channel switching and
the Boost function. The front panel
Clean/Overdrive and Boost switches
(#3,#6) are inoperative when a
footswitch is connected.
17. Line Out: Use this 1/4” jack to send
a line level signal to a mixing board,
external power amplifier or powered
monitor, or to the input jack of an exter-
nal signal processor.
18. Line In: Use this 1/4” jack to connect
the output of an external effects proces-
sor to the amplifier.
19. 8 Ohm Speaker: Use this jack to
connect the external cabinet to the
amplifier by means of a heavy duty
Class 2 wiring speaker cable terminated
with 1/4” plugs. The total impedance rat-
ing for the external speaker(s) must be 8
ohms.

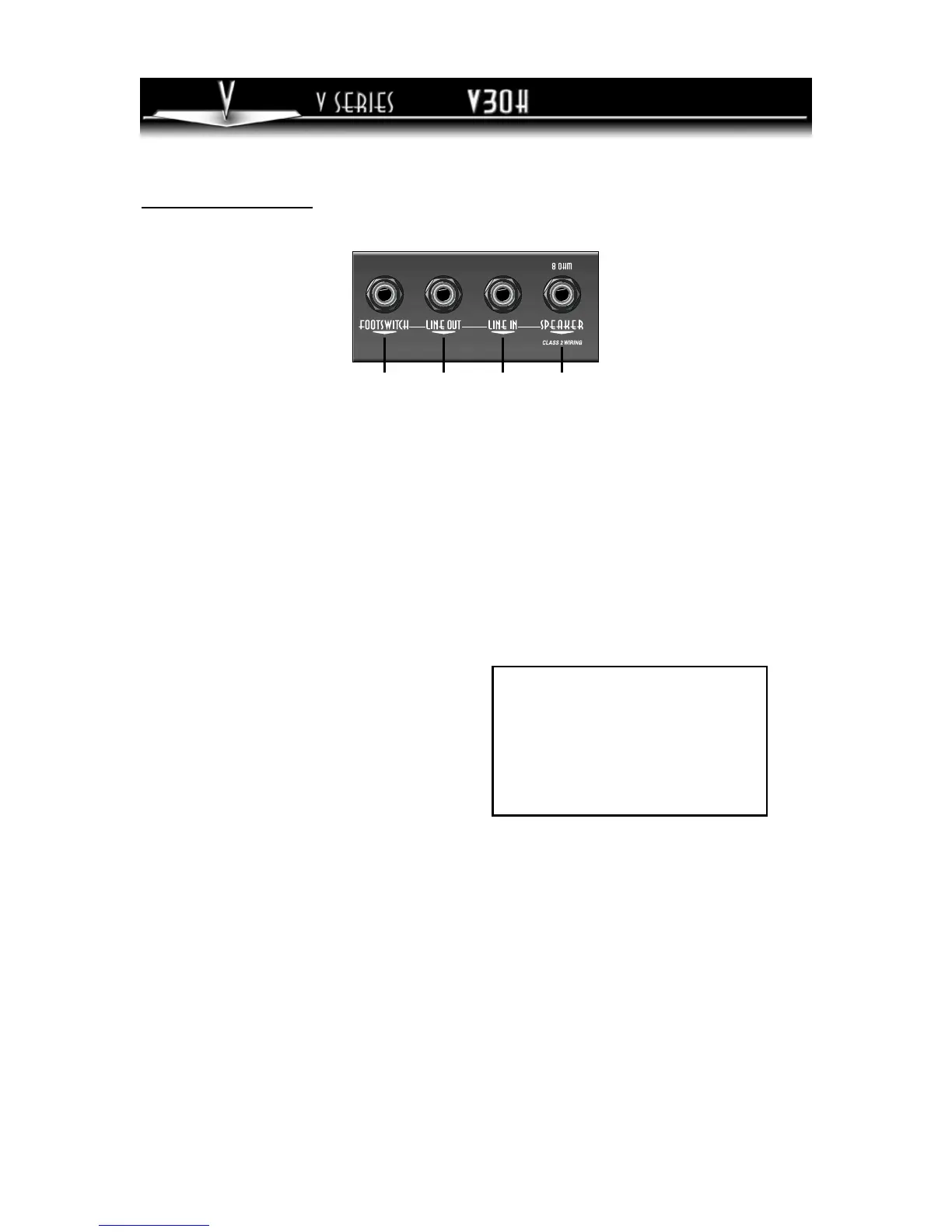

The Rear Panel:
Guitar Amplifier HEAD
WARNING: The speaker output of this unit
can exceed 10 Watts and could be a shock
injury. Connection to speakers should be
performed by a skilled person in compliance
with local building codes. Class 2 wiring is
required for speaker cables. Use of external
speakers outside the ratings stated at the
speaker jack may result in a shock injury or
damage to the unit.
