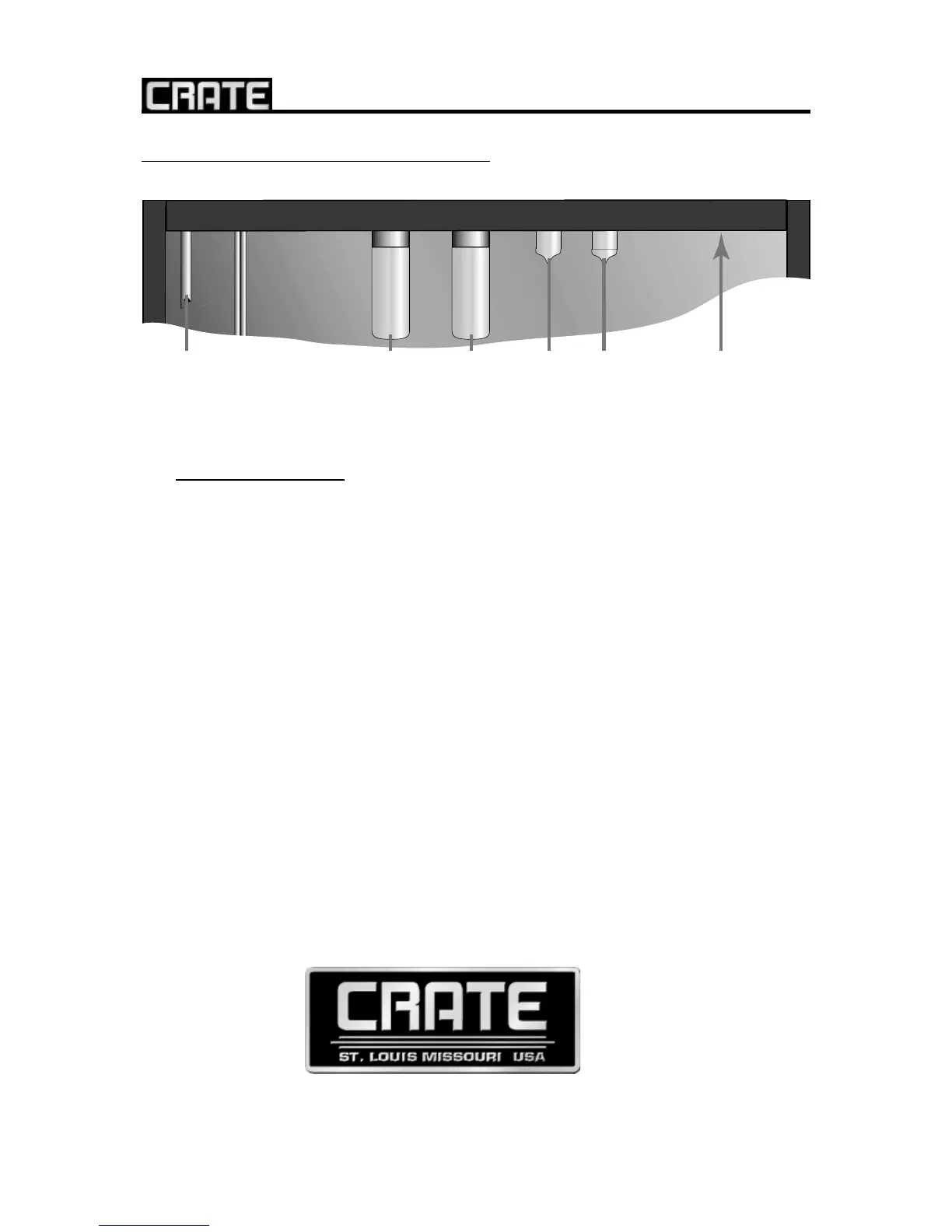

THE REAR PANEL:
9. Power cord connects the
amplifier to a suitable source of
A.C. voltage. This is a grounded,
three-wire cord and must be con-
nected to a properly grounded
outlet. DO NOT attempt to
defeat the ground connection
of the power cord! If your amp
was purchased outside of the
United States, see the sticker
next to the A.C. connector for its
power ratings. Follow the above
guidelines.
10. Power Tubes: 6L6GC (2).
11. Power Amp Phase Splitter
Tube: 12AX7A / 7025 (1).
12. Preamp Tube: 12AX7A /
7025 (1).
Replace tubes ONLY with same
types! Refer to the enclosed
booklet about Tubes and Tube
Amplifiers for additional informa-
tion.
13: Footswitch Jack is located
on the bottom of the amplifier
chassis, just past the cabinet’s
covered back panel. Connect the
supplied footswitch here for
remote control of the Reverb and
Tremolo on/off.
