MOUNTING

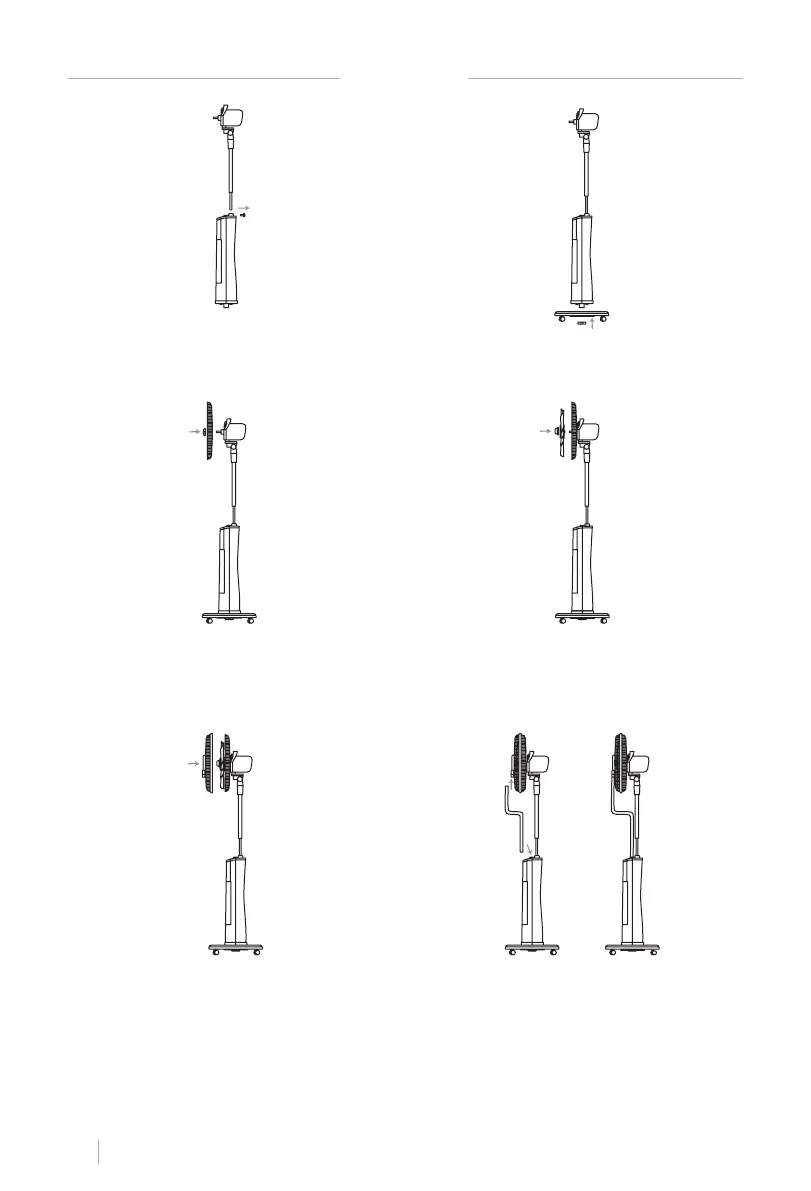

1. Insert the motor holding stick into the
slot on the base and screw the screw to
the main body.
2. Install the base to the main body with the
base nut.
3. Position the rear grill on the motor unit
respecting the t of the notches and cen-
tering pins. Screw the clamping nut onto
the grill.
4. Insert the blades onto the motor shaft.
Then tighten the blade clamp screw
(note that it should be screwed counter-
clockwise).
5. Attach the front grill to the rear grill with
the top clip. Secure the entire device by
closing the cover located at the bottom
of the racks. Firmly screw in the screw on
the louver safety device.
6. Connect the water pipe to the mist blow-
er slot and the other part to the water
pipe slot on the main body.
IMPORTANT: After assembly, never disassemble the grilles during use or maintenance.
