MODEL PS18EAS
19862-600 Rev E (01-19)
Page 12
ASSEMBLY INSTRUCTIONS

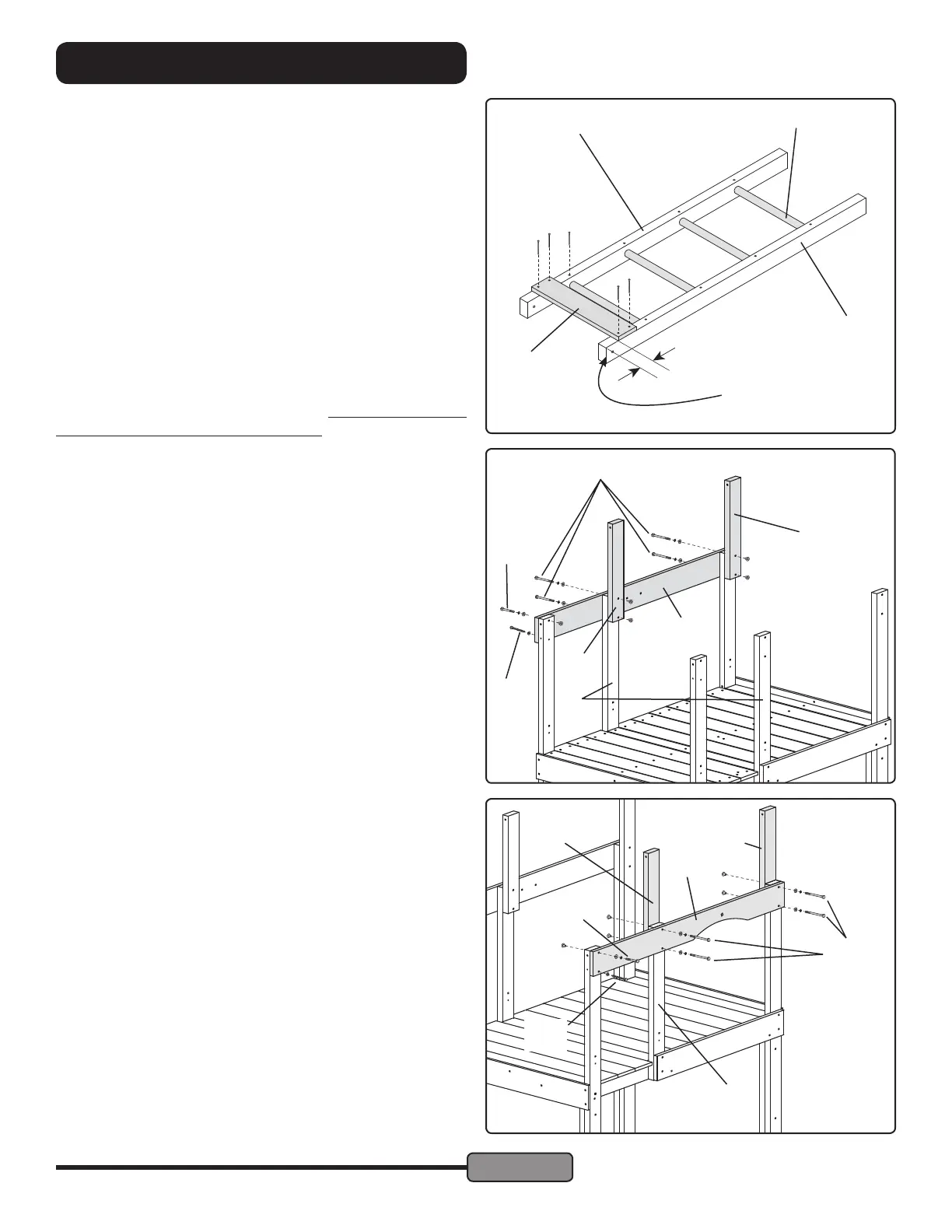

STEP 9 — Access Ladder Rungs & Slat:
Fit four 15" Rungs (AP) into the holes in the Left Ladder Rail
(AM) and the Right Ladder Rail (AN). Set the assembly at
on a solid surface. Make sure that the rungs are completely
inserted with the ends of the rungs snug against the bottom
of the holes.
Use #10 x 1-1/2" Self-Drilling Screws, through the holes
provided, to fasten the rungs in place. (The Self-Drilling
Screws have a drill-bit tip. Point the screw toward the center
of rung diameter and press rmly. Do not sink the head of the
screw beyond ush with the surface of the wood.
Use four #8 x 2" Screws to fasten the Ladder Slat (T) to the
Ladder Rails. The top edge of the Ladder Slat should be
about 2-1/4" below the top of the Ladder Rails as shown.
Make sure the gap between the top Rung and the Ladder slat
is less than 3-1/2"; adjust if necessary. Use a 1/8" diameter
pilot drill to make holes for the Screws.
STEP 10 — Left Wall Support & Roof Uprights:
Before this step, check the top two holes in the Mid
Posts (K). If a 1/4" bolt will not t through the holes,
make them bigger using a 5/16" drill.
Orient the Left Wall Support (C) as shown at right. Fasten
the Left Wall Support to the Left Front Post using a 1/4 x 2"
Hex Bolt Assembly though the top hole and a 1/4 x 2" Lag
Screw with Flat Washer in the bottom hole.
Fasten the Left Wall Support to the left Mid Post and one
Roof Upright (F) using two 1/4 x 3-1/2" Hex Bolt Assemblies
as shown.
Fasten the Left Wall Support to the Back Left Post and one
Roof Upright (F) using two 1/4 x 3-1/2" Hex Bolt Assemblies
as shown.
AP
T
AM
AN
C
F
F
F
K
3-1/2" Hex Bolts
2" Hex
Bolt
2" Lag
Screw
STEP 11 — Right Wall Support & Roof Uprights:
As with the previous step. Check the top holes in the
Mid Post (K).
Secure the Right Wall Support (P) to the Front Right Post,
then the Mid Post and Roof Upright (F), then the Back Left
Post and Roof Upright as in the previous step.
F
P
K
3-1/2" Hex
Bolts
2" Hex
Bolt
2" Lag
Screw
The top of the ladder is
the end with holes in the
rails for brackets
2-1/4"
