MODEL PS18EAS
19862-600 Rev E (01-19)
© Copyright 2014, Creative Playthings
Page 17
ASSEMBLY INSTRUCTIONS

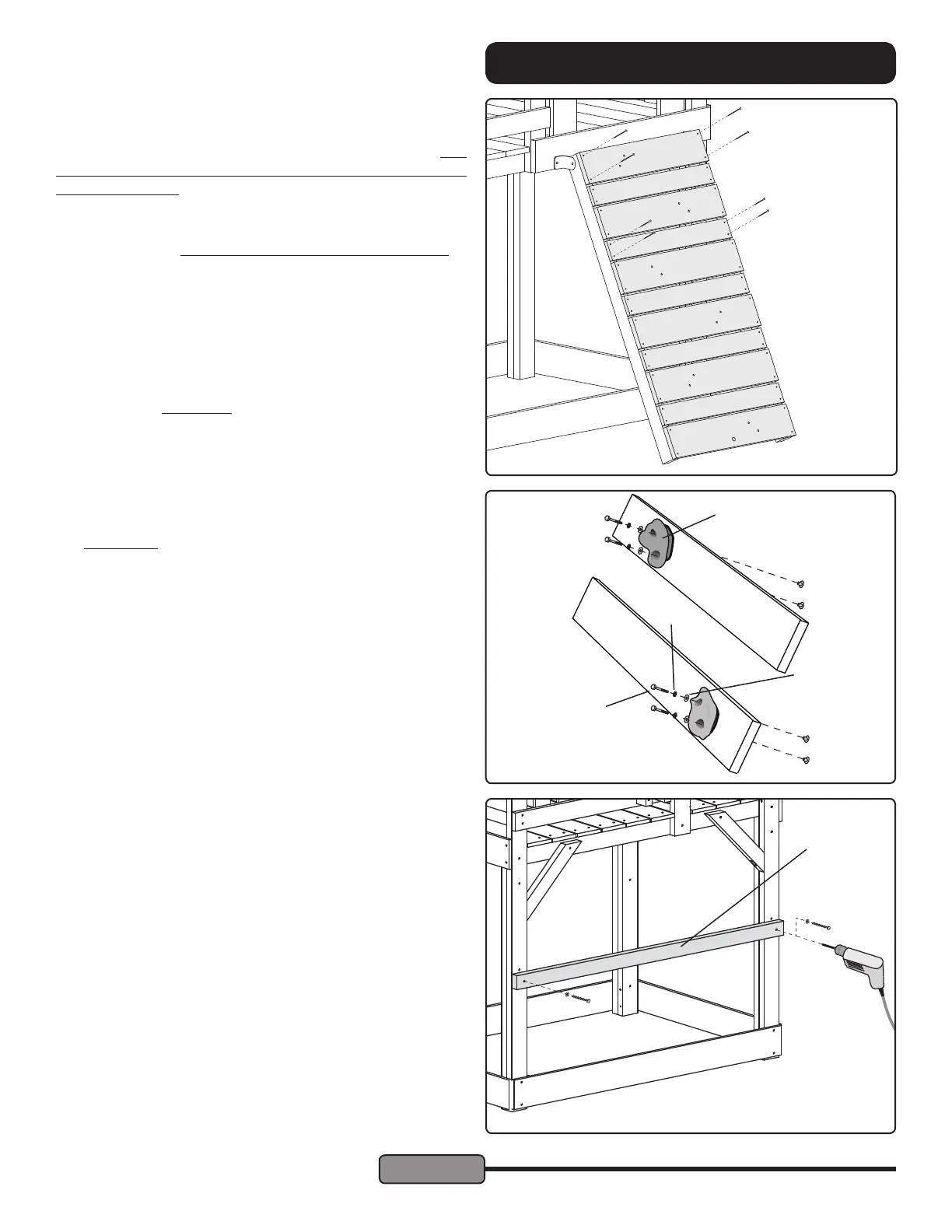

STEP 22 — Rock, Rope & Spacer Boards:
Fasten one Rock Board (O) to the top of the Climber Rails
using two #8 x 2" Screws, in the top corner holes only. Drill
1/8" diameter pilot holes for the screws to prevent splitting of
the Climber Rails.
Fasten the Rock & Rope Board (Q) to the bottom of the
Climber Rails using two #8 x 2" Screws, in the bottom corner
holes only. Use a 1/8" diameter drill to create pilot holes for
the screws to prevent splitting of the Climber Rails.
Measure the diagonal distance from the top left corner of the
Rock Board to the bottom right corner of the Rock & Rope
Board. Measure the opposite diagonal. Adjust the position
of the Climber Rails until the diagonal measurements are
equal.
Secure the Rock Board and Rock & Rope Board using #8 x
2" Screws with pilot holes.
Evenly space four Rock Boards (O) and ve Spacer Boards
(R) between the top Rock Board and Bottom Rope Board
in the pattern shown at right. The gap between boards will
be approximately 3/8". Secure each Spacer Board to the
Climber Rails using four #8 x 1-5/8" Screws. Secure each
Rock Board to the Climber Rails using four #8 x 2" Screws
with pilot holes.
STEP 23 — Climbing Rocks:
Fasten one Climbing Rock (AS) to each Rock Board using
two 1/4 x 1-1/2" Hex Bolts, 1/4 Lock Washers, 8mm Flat
Washers and 1/4" Weld Nuts.
1/4 x 1-1/2"
Hex Bolt
1/4" Lock
Washer
8mm Flat
Washer
AS
O
O
O
O
O
Q
R
R
R
R
R
Use #8 x 1-5/8"
Screws for
Spacer Boards
Gaps approx.
3/8"
Use #8 x 2"
Screws for
Rock Boards
STEP 24 — Safety Rail:
Hold the Safety Rail (I) in place against the left posts, under
the Swing Mounts, approximately 23" above the ground.
Make sure no fasteners conict with the placement. Drill a
3/16" diameter pilot hole 1-1/2" deep into the post at one end
of the Safety Rail. Fasten the Safety Rail to the post using
one 1/4 x 3" Lag Screw and Flat Washer.
Swing the Safety Rail into position and make sure it is level.
Drill a pilot hole into the post at the other end of the Safety
Rail. Fasten using one 1/4 x 3" Lag Screw and Flat Washer
I
