MODEL PS18EAS
19862-600 Rev E (01-19)
Page 18

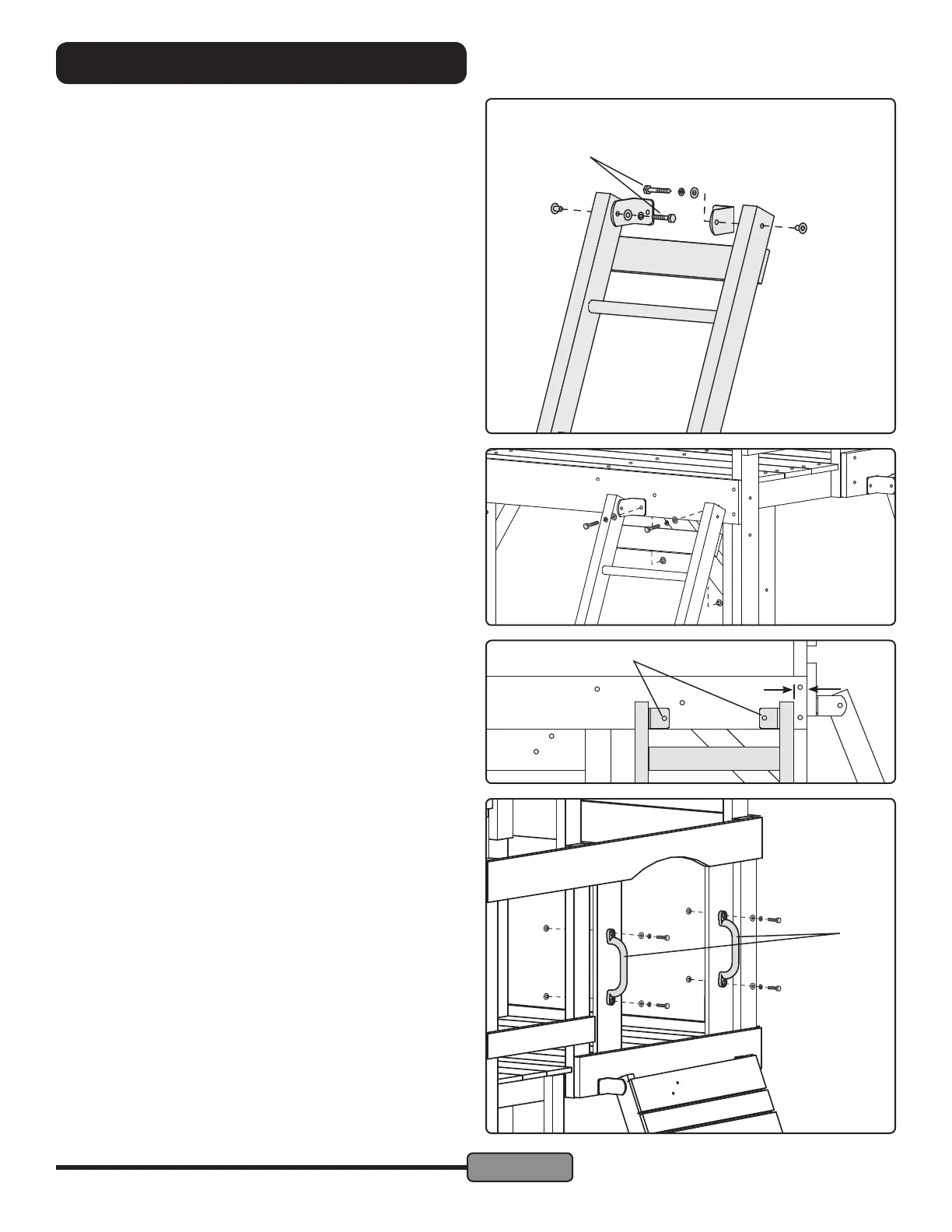

ASSEMBLY INSTRUCTIONS
STEP 25 — Access Ladder:
Fasten one Access Bracket to inside of each Ladder Rail
using 1/4 x 1-1/2" Hex Bolt Assemblies as shown at right.
Note: Temporarily place the Slide into position to help judge
the best placement of the Access Ladder. Make sure that all
hardware has room to t before drilling.
See the standard placement at bottom right.
Lean the Access Ladder against the gym with the Access
Brackets at against the Platform Front and the lower edge
of the Brackets ush with the lower edge of the Platform
Front.
Drill 5/16" diameter holes through the holes in the Brackets
and through the Platform Front. Secure the Brackets using
1/4 x 1" Hex Bolt Assemblies.
STEP 26 — Hand Grips to Entrance Slats:
Fasten one Hand Grip (AQ) to each Entrance Slat above the
Cargo Net using two 1/4 x 1" Hex Bolt Assemblies for each.
1/4 x 1-1/2"
Hex Bolt
1/4 x 1" Hex Bolts
Drill 5/16" dia. holes
1-3/8"
1/4 x 1"
Hex Bolt
AQ
