User Manual for Handheld Pulse Oximeter
12

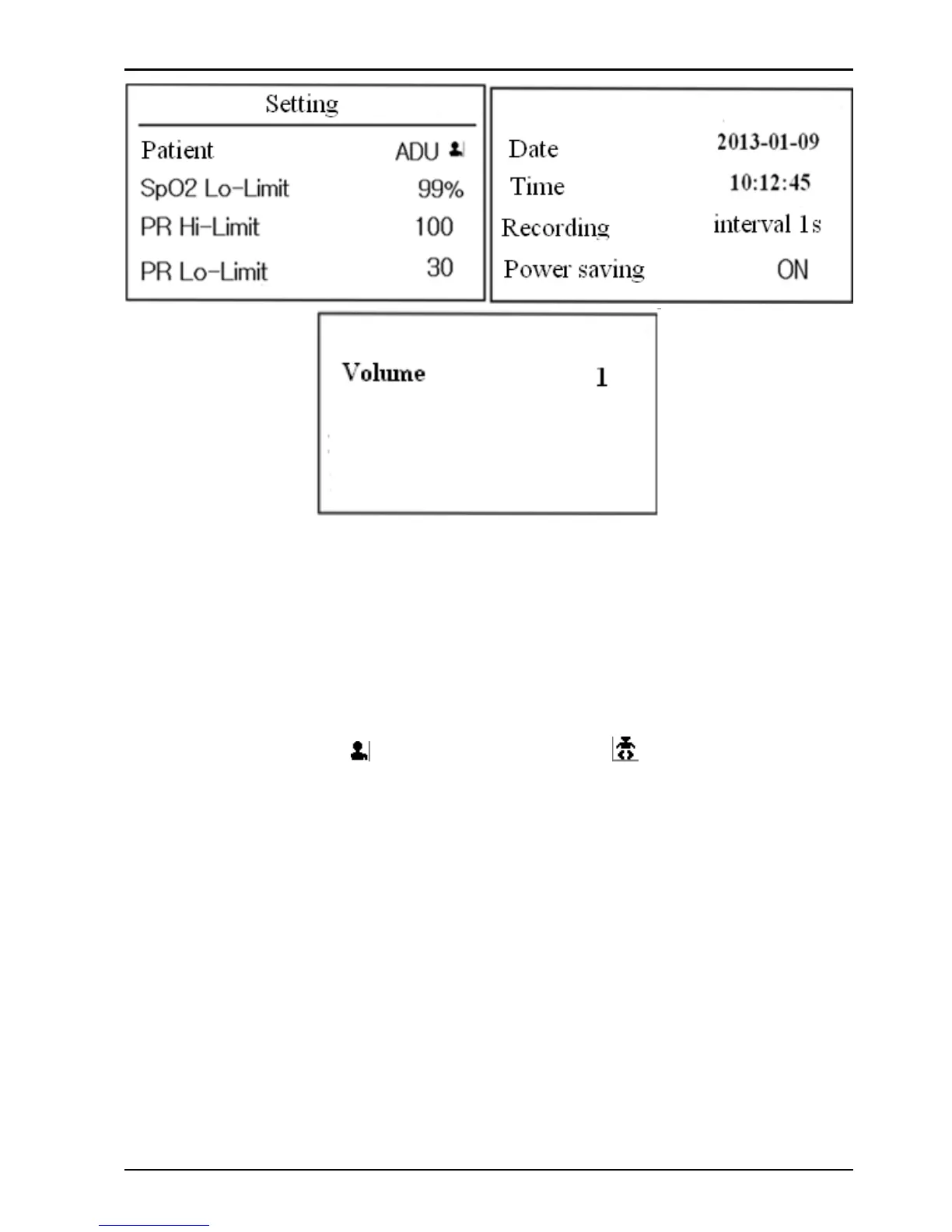

Figure 4-4 System Setup Screen
Operation Instructions:
¾
Patient: according to the type of SpO
2
probe, the matched
patient type should be selected, there are two
options:"ADU " for adult, and "NEO " for neonate.
¾
SpO
2
Lo-Limit: SpO
2
low limit setting; range: 50%~99%,
the step is 1%. The factory default value for adult is 90%
and 85% for neonate.
¾
PR Hi-Limit: High limit setting of pulse rate; range:
100~240bpm. From 100 to 150, the step is 1bpm, and
from 150 to 240, the step is 5bpm. The factory default
value for adult is 120bpm and 160bpm for neonate.
¾ PR Lo-Limit: Low limit setting of pulse rate; range:
30~99bpm, and the step is 1bpm. The factory default
