Creator C200 - Using the Scan Tool; Scan Tool Description and Components

Creator OBDII/EOBD scanner
14
3. Using the Scan Tool

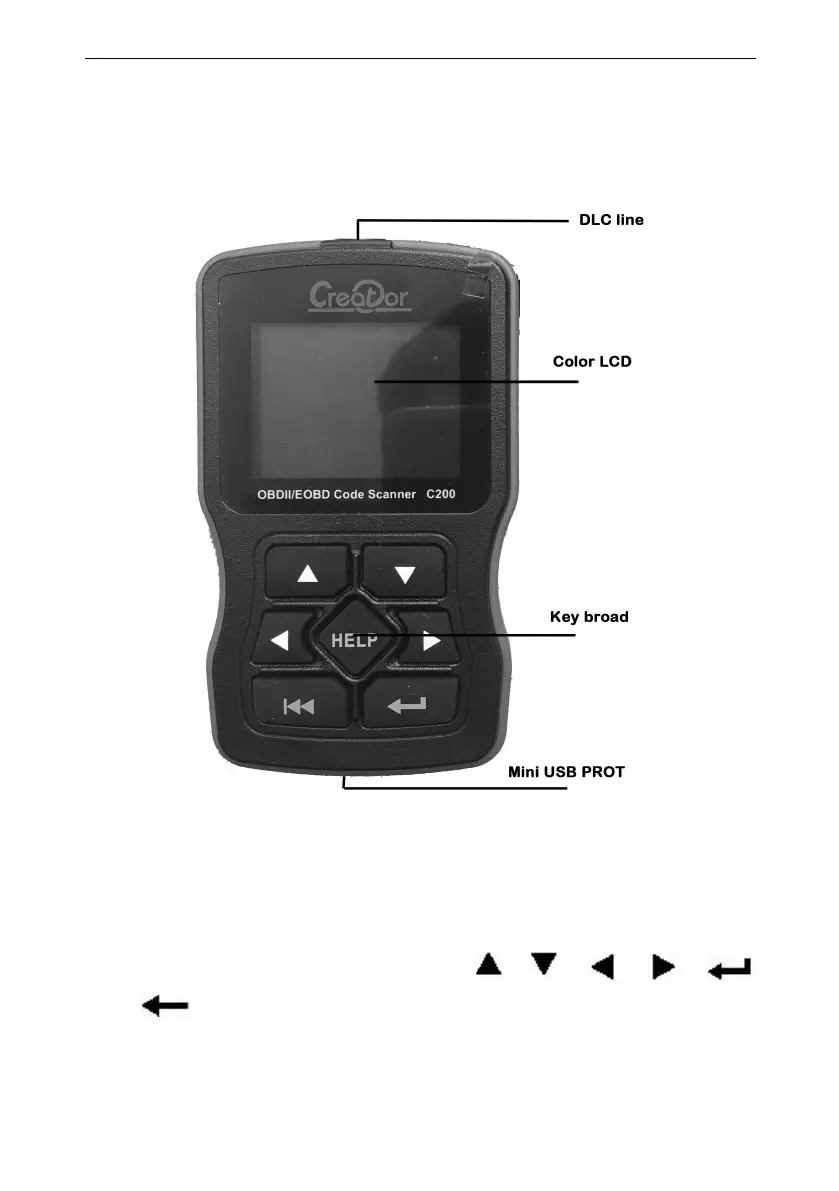

3.1 Tool Description
① DLC Line -- Data Link Connector (DLC), Use
to connect the scan tool to the vehicle;
② Color LCD -- Indicates test results. Color,
320 x 240 pixel display with contrast adjustment
③ KEY BROAD – include [ ][ ][ ][ ][ ]
[ ] [HELP]
④ MINI USB PORT -- Use to connect the scan tool
to PC;
