Crestron CHV-RTS User Manual

Crestron CHV-RTS & CHV-RTHS Temperature & Humidity Sensors
Installation Guide – DOC. 8189D Temperature/Humidity Sensors: CHV-RTS/CHV-RTHS • 7

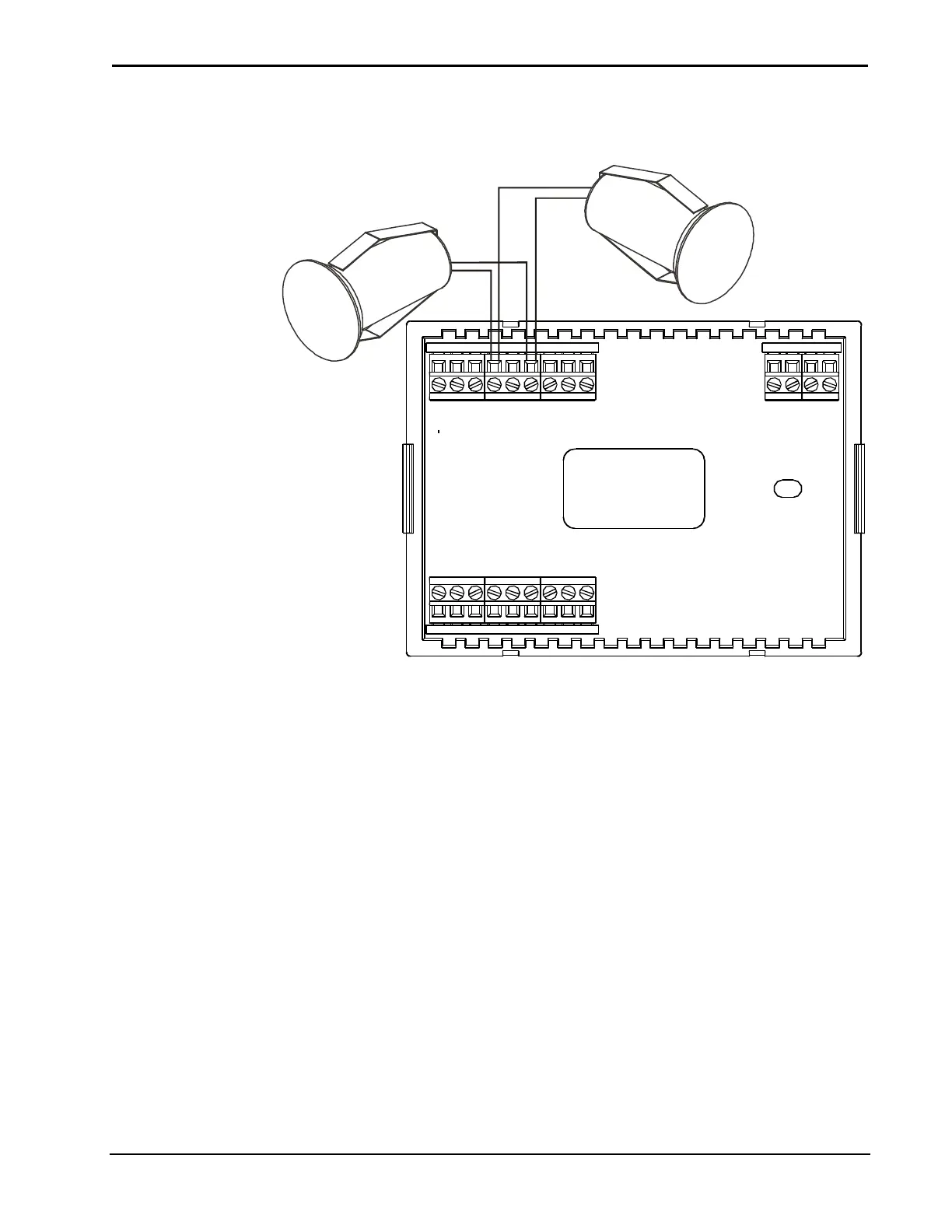

CHV-RTS (Single Channel) Hookup (Two Sensors Shown)
TOP
HUM
RHU
RSR
RSR
RS1 RS2 24(C)
24(R)
24V
Y
Z
G
NETWORK
RH RC G Y/Y1 Y2
O
B
W/W1
W2
CHV-RTS
CHV-RTS
4. To connect sensors using two channels on the thermostat, wire up
to two CHV-RTS sensors to the RS1 and RSR terminals and up to
two additional CHV-RTS sensors (or one CHV-RTHS sensor) to
the RS2 and RSR terminals as shown in the illustration on the
following page.

Crestron CHV-RTS Specifications

General

Brand	Crestron
Model	CHV-RTS
Category	Temperature Controller
Language	English
